Cockroach Cable Description
Cockroach cables are primarily used for short-span railway overhead line distribution systems, with voltage ratings up to 60kV in low, medium, and high voltages.
They are available in both bare aluminum and PVC-insulated versions. The uninsulated version offers excellent corrosion resistance and is suitable for coastal areas. The PVC-insulated version is recommended for installations requiring additional protection against challenging environments.
Cockroach Cable Construction
| Cockroach Overhead Line (AAC) Cable | Cockroach Overhead Line (AAC) PVC Cable | |
|---|---|---|
| Conductor | Class 2 Stranded Aluminium | |
| Insulation | - | PVC (Polyvinyl Chloride) |
Cockroach Cable Characteristics
- Minimum Bending Radius
- 9X Overall Diameter
- Temperature Limits
- Temperature Range: -30°C to +70°C
- Core Identification
- Cockroach: 266-AL1

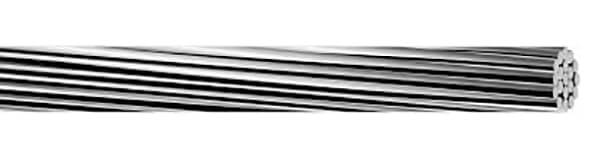

- Cockroach Overhead Line (AAC) Cable

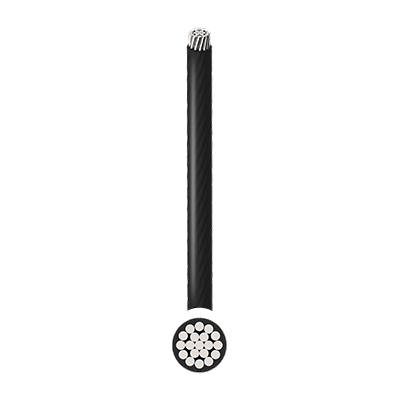

- Cockroach Overhead Line (AAC) PVC Cable
| NETWORK RAIL PART NO./ PADS | DRAWING NO. | NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 0091/010268 | 148/045 | 266 | 19 | 4.22 | 21.1 | 731 |
| NETWORK RAIL PART NO./ PADS | DRAWING NO. | NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 0091/010319 | 148/047 | 266 | 19 | 4.22 | 1.6 | 24.3 | 914 |
