FGT Enhanced Class 2 Signalling Power Supply Cable

NR/L2/ELP/27408 Cable Description

This range of unarmoured track power cables features enhanced features such as rodent-resistant fiberglass tape (FGT) to prevent wire chewing, which can lead to power outages and fail-safe shutdowns. Based on the specifications for Class II signalling distribution systems, Class II systems are designed without the need for safety earthing.

NR/L2/ELP/27408 Cable Construction

Conductor
Class 1 Solid, Circular or Sectorial-Shaped Aluminium
Class 2 Circular or Sectorial-Shaped Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Rodent Protection
FGT (Fibre-Glass Tape)
Sheath
PVC (Polyvinyl Chloride) / LSZH (Low Smoke Zero Halogen)

NR/L2/ELP/27408 Cable Characteristics

Voltage Rating Uo/U
0.6/1kV

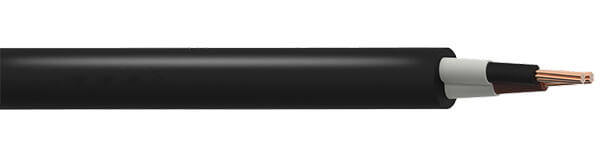

Class 2 PVC Signalling Power Supply Cable

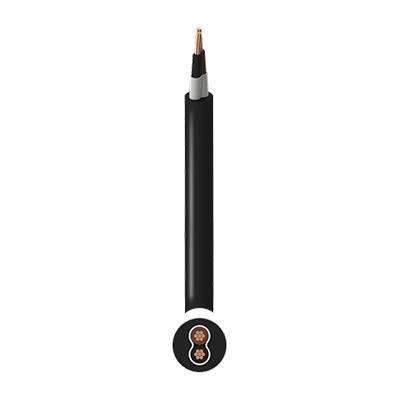

Class 2 LSZH Signalling Power Supply Cable

NO. OF CORES	CONDUCTOR CLASS	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MINIMUM BEND RADIUS mm	MAXIMUM PULLING FORCE kN	MAXIMUM DRU LENGTH m
Copper Conductor
2	2	10	2	2.4	21.9	524	88	0.98	2800
2	2	16	2	2.4	23.7	662	95	1.57	2400
2	2	25	2	2.4	26.2	872	158	2.45	1900
2	2	35	2	2.6	28.8	1105	173	3.43	1600
2	2	50	2	2.7	25.6	1334	205	4.9	1500
2	2	70	2	2.9	29.4	1823	236	6.86	1000
2	2	95	2	3	31.6	2342	253	9.31	800
2	2	120	2	3.2	33.8	2884	271	11.76	700
2	2	150	2	3.3	36.2	3406	290	14.7	600
2	2	185	2	3.4	39	4179	312	18.13	500
3	2	10	2	2.4	23	668	92	1.47	2500
3	2	16	2	2.4	25	866	150	2.35	2100
3	2	25	2	2.4	27.7	1166	167	3.68	1800
3	2	35	2	2.6	30.5	1490	183	5.15	1300
3	2	50	2	2.7	31.9	1929	256	7.35	1100
3	2	70	2	3.1	36	2656	288	10.29	900
3	2	95	2	3.2	39.6	3445	317	13.97	700
3	2	120	2	3.4	41.6	4260	333	17.64	600
3	2	150	2	3.5	45.3	5037	363	22.05	500
3	2	185	2	3.6	48.3	6184	387	27.2	500
4	2	10	2	2.4	25.1	813	151	1.96	2100
4	2	16	2	2.4	27.3	1069	164	3.14	1800
4	2	25	2	2.4	30.3	1458	182	4.9	1400
4	2	35	2	2.6	33.4	1876	201	6.86	1100
4	2	50	2	2.7	35.1	2448	281	9.8	900
4	2	70	2	3.2	40.2	3423	322	13.72	700
4	2	95	2	3.3	44	4450	352	18.62	600
4	2	120	2	3.5	47.1	5524	377	23.52	500
4	2	150	2	3.5	50.5	6502	404	24.12	600
4	2	185	2	3.6	54.3	8020	435	28.3	500
Aluminium Solid Conductor
2	1	16	2	2.4	23.1	460	185	0.8	2500
2	1	25	2	2.4	25.2	556	202	1.25	2100
2	1	35	2	2.6	27.6	671	221	1.74	1800
2	1	50	2	2.7	25.6	791	205	2.49	2200
2	1	70	2	2.9	28.2	990	226	3.49	1800
2	1	95	2	3	30.6	1209	245	4.73	1500
2	1	120	2	3.2	33	1422	264	5.98	1300
3	1	16	2	2.4	24.3	559	195	1.2	2200
3	1	25	2	2.4	26.8	692	215	1.87	1800
3	1	35	2	2.6	29.2	838	234	2.61	1500
3	1	50	2	2.7	29.6	1065	237	3.74	1800
3	1	70	2	3.1	33.1	1377	265	5.23	1500
3	1	95	2	3.2	36.1	1693	289	7.1	1300
3	1	120	2	3.4	38.9	2005	312	8.96	1000
4	1	16	2	2.4	26.5	671	212	1.59	1800
4	1	25	2	2.4	29.1	838	233	2.49	1500
4	1	35	2	2.6	31.9	1022	256	3.49	1300
4	1	50	2	2.7	32.1	1286	257	4.98	1800
4	1	70	2	3.2	36.2	1695	290	6.97	1400
4	1	95	2	3.3	39.8	2091	319	9.46	1100
4	1	120	2	3.5	42.9	2894	344	11.95	1000
Aluminium Stranded Conductor
2	2	120	2	3.2	33	1416	264	5.98	1300
2	2	150	2	3.3	36.3	1669	291	7.47	1000
2	2	185	2	3.4	38.8	1995	311	9.21	700
3	2	120	2	3.4	42	2019	336	8.96	1000
3	2	150	2	3.5	45.4	2368	364	11.21	800
3	2	185	2	3.6	48.4	2840	388	13.82	600
4	2	120	2	3.5	49	2607	392	11.95	1000
4	2	150	2	3.5	48.9	2629	392	14.94	600
4	2	185	2	3.6	49.1	2708	393	18.43	500

NO. OF CORES	CONDUCTOR CLASS	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MINIMUM BEND RADIUS mm	MAXIMUM PULLING FORCE kN	MAXIMUM DRU LENGTH m
Copper Conductor
2	2	10	2	2.4	21.9	516	88	0.98	2800
2	2	16	2	2.4	23.7	653	95	1.57	2400
2	2	25	2	2.4	26.2	862	158	2.45	1900
2	2	35	2	2.6	28.8	1095	173	3.43	1600
2	2	50	2	2.7	25.6	1323	205	4.9	1500
2	2	70	2	2.9	29.4	1811	236	6.86	1000
2	2	95	2	3	31.6	2329	253	9.31	800
2	2	120	2	3.2	33.8	2868	271	11.76	700
3	2	10	2	2.4	23.1	654	93	1.47	2500
3	2	16	2	2.4	25.1	850	151	2.35	2100
3	2	25	2	2.4	27.8	1148	167	3.68	1800
3	2	35	2	2.6	30.6	1472	184	5.15	1300
3	2	50	2	2.7	31.9	1836	256	7.35	1100
3	2	70	2	3.1	36	2566	288	10.29	900
3	2	95	2	3.2	39.6	3341	317	13.97	700
3	2	120	2	3.4	42	4146	336	17.64	600
4	2	10	2	2.4	25.2	804	152	1.96	2100
4	2	16	2	2.4	27.4	1059	165	3.14	1800
4	2	25	2	2.4	30.4	1449	183	4.9	1400
4	2	35	2	2.6	33.5	1864	201	6.86	1100
4	2	50	2	2.7	35.2	2346	282	9.8	900
4	2	70	2	3.2	44	3398	352	13.72	700
4	2	95	2	3.3	47.2	4420	378	18.62	600
4	2	120	2	3.5	50.5	5493	404	23.52	500
Aluminium Solid Conductor
2	1	16	2	2.4	23.5	476	188	0.8	2500
2	1	25	2	2.4	25.6	572	205	1.25	2100
2	1	35	2	2.6	27.6	661	221	1.74	1800
2	1	50	2	2.7	25.4	769	204	2.49	2200
2	1	70	2	2.9	27.6	937	221	3.49	1800
2	1	95	2	3	29.8	1137	239	4.73	1500
2	1	120	2	3.2	33	1407	264	5.98	1300
3	1	16	2	2.4	24.4	510	196	1.2	2200
3	1	25	2	2.4	26.8	636	215	1.87	1800
3	1	35	2	2.6	29.3	778	235	2.61	1500
3	1	50	2	2.7	29.6	995	237	3.74	1800
3	1	70	2	3.1	33.1	1302	265	5.23	1500
3	1	95	2	3.2	36.1	1608	289	7.1	1300
3	1	120	2	3.4	38.9	1916	312	8.96	1000
4	1	16	2	2.4	26.6	662	213	1.59	1800
4	1	25	2	2.4	29.2	829	234	2.49	1500
4	1	35	2	2.6	32	1012	256	3.49	1300
4	1	50	2	2.7	32.2	1273	258	4.98	1800
4	1	70	2	3.2	36.3	1677	291	6.97	1400
4	1	95	2	3.3	39.8	2068	319	9.46	1100
4	1	120	2	3.5	43	2458	344	11.95	1000
Aluminium Stranded Conductor
2	2	120	2	3.2	33	1387	264	5.98	1300
2	2	150	2	3.3	36.3	1613	291	7.47	1000
2	2	185	2	3.4	38.8	1934	311	9.21	700
3	2	120	2	3.4	42	1929	336	8.96	1000
3	2	150	2	3.5	45.4	2266	364	11.21	800
3	2	185	2	3.6	48.4	2734	387	13.82	600
4	2	120	2	3.5	49	2456	392	11.95	1000
4	2	150	2	3.5	52.9	2842	424	14.94	600
4	2	185	2	3.6	57.9	3421	464	18.43	500
