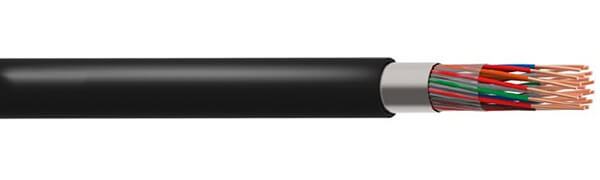

FTN Copper Trackside Cable Description
FTN copper trackside cable is suitable for installation in trackside concrete cable ducts and buried conduits. Direct burial installation is possible using the armored series. This cable also offers a low-smoke halogen-free (LSZH) outer sheath, suitable for applications where smoke emissions and toxic fumes may pose a risk to human health and critical equipment in the event of a fire.
FTN Copper Trackside Cable Construction
| NR/PS/TEL/00015 Copper Trackside PE Cable | NR/PS/TEL/00015 Armoured Copper Trackside Cable | NR/PS/TEL/00015 Armoured Copper Trackside LSZH Cable | NR/PS/TEL/00015 Copper Trackside LSZH Cable | |
|---|---|---|---|---|
| Conductor | Class 1 Solid Copper | |||
| Insulation | PE (Polyethylene) | |||
| Water Blocking | Petroleum Jelly | - | ||
| Separator | Impregnated Paper and/or Non-Hygroscopic Tape | |||
| Moisture Barrier | Aluminium/Polymer Laminate Tape | |||
| Bedding | - | LSZH (Low Smoke Zero Halogen) | - | |
| Armour | - | Corrugated Steel/Polymer Laminate Tape | - | |
| Outer Sheath | PE (Polyethylene) | LSZH (Low Smoke Zero Halogen) | ||
FTN Copper Trackside Cable Characteristics
| NR/PS/TEL/00015 Copper Trackside PE Cable | NR/PS/TEL/00015 Armoured Copper Trackside Cable | NR/PS/TEL/00015 Armoured Copper Trackside LSZH Cable | NR/PS/TEL/00015 Copper Trackside LSZH Cable | |
|---|---|---|---|---|
| Temperature Rating | Fixed: -25 °C to +75°C | Fixed: -25°C to +85°C | ||
| Minimum Bending Radius | 7.5 x overall diameter | Fixed: 10 x overall diameter | 7.5 x overall diameter | |
- NR/PS/TEL/00015 Copper Trackside PE Cable
- NR/PS/TEL/00015 Armoured Copper Trackside Cable
- NR/PS/TEL/00015 Armoured Copper Trackside LSZH Cable
- NR/PS/TEL/00015 Copper Trackside LSZH Cable
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| Conductor 0.63mm | |||
| 006/168001 | 2 | 10.5 | 71 |
| 006/168002 | 5 | 12.0 | 120 |
| 006/168003 | 10 | 13.8 | 190 |
| 006/168004 | 20 | 16.3 | 325 |
| 006/168005 | 30 | 18.6 | 435 |
| 006/168006 | 50 | 22.4 | 660 |
| 006/168007 | 75 | 26.4 | 930 |
| 006/168008 | 100 | 29.2 | 1230 |
| Conductor 0.90mm | |||
| 006/168051 | 2 | 11.5 | 95 |
| 006/168052 | 5 | 13.8 | 180 |
| 006/168053 | 10 | 16.3 | 246 |
| 006/168054 | 20 | 20.1 | 545 |
| 006/168055 | 30 | 23.4 | 750 |
| 006/168056 | 50 | 28.2 | 1175 |
| 006/168057 | 75 | 34.0 | 1541 |
| 006/168058 | 100 | 37.3 | 2051 |
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 0.63mm Conductor | |||
| 006/168011 | 2 | 18 | 205 |
| 006/168012 | 5 | 19.5 | 285 |
| 006/168013 | 10 | 21.3 | 380 |
| 006/168014 | 20 | 23.8 | 550 |
| 006/168015 | 30 | 26.1 | 690 |
| 006/168016 | 50 | 29.9 | 960 |
| 006/168017 | 75 | 33.9 | 1147 |
| 006/168018 | 100 | 36.7 | 1464 |
| 0.90mm Conductor | |||
| 006/168061 | 2 | 19 | 250 |
| 006/168062 | 5 | 21.3 | 365 |
| 006/168063 | 10 | 23.8 | 520 |
| 006/168064 | 20 | 27.6 | 820 |
| 006/168065 | 30 | 30.9 | 1060 |
| 006/168066 | 50 | 35.7 | 1550 |
| 006/168067 | 75 | 41.5 | 1912 |
| 006/168068 | 100 | 44.8 | 2450 |
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS | MAXIMUM OVERALL DIAMETEr mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| LSZH Armoured 0.63mm | |||
| 006/168031 | 2 | 20.3 | 380 |
| 006/168032 | 5 | 21.8 | 425 |
| 006/168033 | 10 | 23.6 | 550 |
| 006/168034 | 20 | 26.1 | 740 |
| 006/168035 | 30 | 28.4 | 880 |
| 006/168036 | 50 | 32.2 | 1150 |
| 006/168037 | 75 | 36.2 | 1202 |
| 006/168038 | 100 | 39.0 | 1760 |
| LSZH Armoured 0.90mm | |||
| 006/168081 | 2 | 21.3 | 380 |
| 006/168082 | 5 | 23.6 | 550 |
| 006/168083 | 10 | 26.1 | 700 |
| 006/168084 | 20 | 29.9 | 1000 |
| 006/168085 | 30 | 33.2 | 1240 |
| 006/168086 | 50 | 38.0 | 1220 |
| 006/168087 | 75 | 43.8 | 2055 |
| 006/168088 | 100 | 47.1 | 2780 |
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| Conductor 0.63mm | |||
| 006/168021 | 2 | 12.3 | 105 |
| 006/168022 | 5 | 13.8 | 158 |
| 006/168023 | 10 | 15.6 | 226 |
| 006/168024 | 20 | 18.1 | 332 |
| 006/168025 | 30 | 20.4 | 420 |
| 006/168026 | 50 | 24.2 | 618 |
| 006/168027 | 75 | 28.2 | 779 |
| 006/168028 | 100 | 31.0 | 1090 |
| Conductor 0.90mm | |||
| 006/168071 | 2 | 13.3 | 130 |
| 006/168072 | 5 | 15.6 | 219 |
| 006/168073 | 10 | 18.1 | 329 |
| 006/168074 | 20 | 21.9 | 520 |
| 006/168075 | 30 | 25.2 | 702 |
| 006/168076 | 50 | 30.0 | 1065 |
| 006/168077 | 75 | 35.8 | 1325 |
| 006/168078 | 100 | 39.1 | 1890 |
