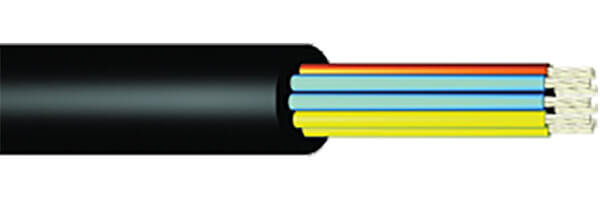

NR/SP/ELP/40045 Cable Description
Our point heating cables meet rail network standards and provide protection in cold weather and extremely low temperatures, which is essential for maintaining rail operations. Furthermore, our LSZH-jacketed cables are suitable for use in tunnels and confined spaces.
NR/SP/ELP/40045 Cable Construction
- Conductor
- Class 5 flexible tinned copper conductor
- Insulation
- EPR (Ethylene Propylene Rubber)
- Sheath
- PCP (Polychloroprene) / LSZH (Low Smoke Zero Halogen)
NR/SP/ELP/40045 Cable Characteristics
- Voltage Rating
- 300/500 V
- Temperature Rating
- Fixed: -30ºC to +70ºC

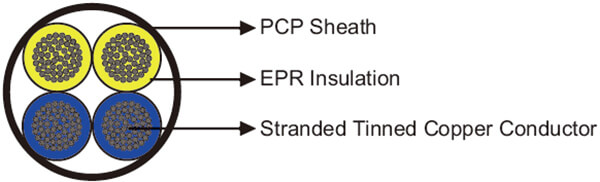

NR/SP/ELP/40045 Cable Diagram
NR/SP/ELP/40045 Cable Specification
| NETWORK RAIL PART NO. / PADS | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | DIAMETER OF STRANDS mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | THICKNESS OF INSULATION mm |
|---|---|---|---|---|---|---|---|---|
| PCP Points Heating Cable | ||||||||
| 006/150002 | 4 | 1.5 | 30 | 0.25 | 13.8 | 14.3 | 220 | 0.8 |
| 006/147000 | 4 | 2.5 | 50 | 0.25 | 16 | 16.5 | 390 | 0.9 |
| - | 4 | 4 | 56 | 0.3 | 18 | 18.5 | 420 | 1 |
| - | 4 | 6 | 75 | 0.3 | 15.4 | 17.4 | 490 | 1 |
| - | 4 | 10 | 73 | 0.4 | 20.8 | 22.8 | 870 | 1 |
| 006/153102 | 8 | 1.5 | 30 | 0.25 | 17.9 | 18.5 | 460 | 0.8 |
| 006/153110 | 8 | 2.5 | 50 | 0.25 | 21 | 21.8 | 690 | 0.9 |
| 006/153103 | 8 | 4 | 56 | 0.3 | 22.6 | 23.6 | 830 | 1 |
| 006/153111 | 8 | 6 | 75 | 0.3 | 24.5 | 25.5 | 1010 | 1 |
| 006/153112 | 8 | 10 | 73 | 0.4 | 29.3 | 31.3 | 1650 | 1.2 |
| 006/153113 | 8 | 16 | 114 | 0.4 | 35.2 | 37.2 | 2400 | 1.2 |
| LSZH Points Heating Cable | ||||||||
| 006/153115 | 4 | 1.5 | 30 | 0.25 | 13.8 | 14.3 | 220 | 0.8 |
| 006/153116 | 4 | 2.5 | 50 | 0.25 | 16 | 16.5 | 390 | 0.9 |
| 006/153117 | 4 | 4 | 56 | 0.3 | 18 | 18.5 | 420 | 1 |
| - | 4 | 6 | 75 | 0.3 | 15.4 | 17.4 | 490 | 1 |
| - | 4 | 10 | 73 | 0.4 | 20.8 | 22.8 | 870 | 1 |
| 006/153118 | 8 | 1.5 | 30 | 0.25 | 17.9 | 18.5 | 460 | 0.8 |
| 006/153119 | 8 | 2.5 | 50 | 0.25 | 21 | 21.8 | 690 | 0.9 |
| 006/153121 | 8 | 4 | 56 | 0.3 | 22.6 | 23.6 | 830 | 1 |
| 006/153122 | 8 | 6 | 75 | 0.3 | 24.5 | 25.5 | 1010 | 1 |
| 006/153123 | 8 | 10 | 73 | 0.4 | 29.3 | 31.3 | 1650 | 1.2 |
| 006/153124 | 8 | 16 | 114 | 0.4 | 35.2 | 37.2 | 2400 | 1.2 |
