Railway Signalling Cable Description
Railway signal cables have maximum voltage ratings of 650/1100 V (power frequency rated voltage to earth) and 1100 V (core-to-core rated voltage). The cables are suitable for use on DC circuits with a nominal voltage to earth not exceeding 1100 V.
Class A cables are primarily used for internal wiring or protection in relay rooms, signal boxes, and other indoor applications. Type B cables are designed for fixed trackside applications and are resistant to mechanical shock, grease, and other abrasion common in railway use. Type C cables are suitable for TPWS applications and feature a drain wire and aluminum (Al) tape shield.
Type D signal cables are suitable for B1/B2 applications in tunnels and underground and offer additional fire protection. Type E cables feature a Class 5 stranded tinned conductor with a low-smoke zero-halogen (LSZH) jacket, while Type E3 cables feature a drain wire and aluminum (Al) tape shield. They are suitable for C1/C2/C3 applications in tunnels and underground and offer additional fire protection. Copolymer signal cables are manufactured to Westinghouse Brake & Signal Company DSCE 1010 specifications and are suitable for use in Invensys signaling system railway applications.
Railway Signalling Cable Construction
| Type A1, A2, A3, A4 Cable | Type B1, B2 Cable | Type C1, C2, C3 Cable | Type D1, D2 Cable | Type E1, E2, E3 Cable | Westpac Co-Polymer Rail Signalling Cable | |
|---|---|---|---|---|---|---|
| Conductor | Class 2 stranded tinned conductor | Class 5 tinned conductor | Class 2 stranded tinned conductor | Class 5 tinned conductor | Class 2 Stranded Tinned Annealed Copper | |
| Insulation | LSZH (Low Smoke Zero Halogen) or EPR (Ethylene Propylene Rubber) composite | EPR (Ethylene Propylene Rubber) | EPR (Ethylene Propylene Rubber) | LSZH (Low Smoke Zero Halogen) or EPR (Ethylene Propylene Rubber) | Extruded PVC (Polyvinyl Chloride) | |
| Separator | PET (Polyethylene Terephthalate) | - | PET (Polyethylene Terephthalate) | - | ||
| Sheath | LSZH (Low Smoke Zero Halogen) | HDPCP (Heavy Duty Polychloroprene) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | ||
Railway Signalling Cable Characteristics
| Type A1, A2, A3, A4 Cable | Type B1, B2 Cable | Type C1, C2, C3 Cable | Type D1, D2 Cable | Type E1, E2, E3 Cable | Westpac Co-Polymer Rail Signalling Cable | |
|---|---|---|---|---|---|---|
| Voltage Rating | 0.65/1.1kV | 250/440 V | ||||
| Temperature Rating | -25°C to +85°C | - | ||||

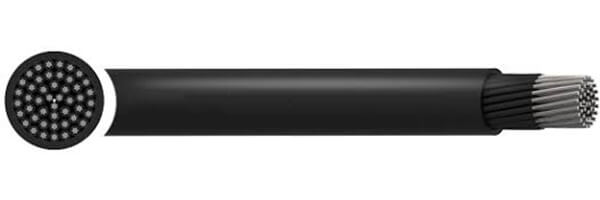

- Type A1, A2, A3, A4 Cable

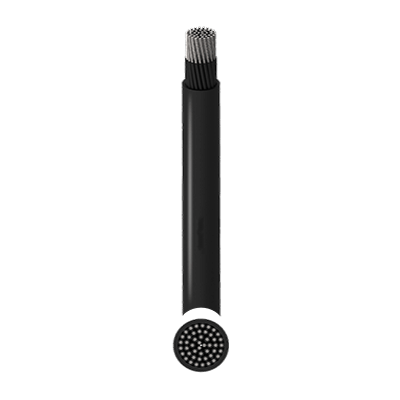

- Type B1, B2 Cable

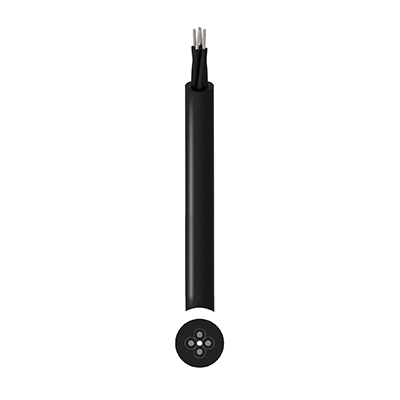

- Type C1, C2, C3 Cable
- Type D1, D2 Cable
- Type E1, E2, E3 Cable

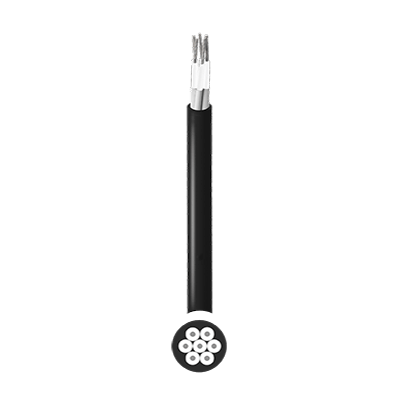

- Westpac Co-Polymer Signalling Cable
| NETWORK RAIL PART NO. / PADS | CABLE TYPE | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 006/120001 | A1 (Blue) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120002 | A1 (Brown) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120003 | A1 (Red) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120004 | A1 (Orange) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120005 | A1 (Grey) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120006 | A1 (Violet) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120007 | A1 (Black) | 1 | 0.75 | 0.7 | 2.7 | 3.2 | 16 |
| 006/120008 | A1 (Black) | 1 | 1.15 | 0.7 | 2.9 | 3.6 | 20 |
| 006/120020 | A2 | 1 | 0.75 | 0.7 | 4 | 5 | 30 |
| 006/120021 | A2 (Blue) | 1 | 0.75 | 0.7 | 4 | 5 | 30 |
| 006/120022 | A2 (Green) | 1 | 0.75 | 0.7 | 4 | 5 | 30 |
| 006/120023 | A2 (Yellow) | 1 | 0.75 | 0.7 | 4 | 5 | 30 |
| 006/120024 | A2 | 1 | 1.15 | 0.7 | 4.3 | 5.3 | 35 |
| 006/120025 | A2 (Blue) | 1 | 1.15 | 0.7 | 4.3 | 5.3 | 35 |
| 006/120026 | A2 (Green) | 1 | 1.15 | 0.7 | 4.3 | 5.3 | 35 |
| 006/120027 | A2 (Yellow) | 1 | 1.15 | 0.7 | 4.3 | 5.3 | 35 |
| 006/120040 | A3 | 2 | 0.75 | 0.9 | 6.7 | 8.8 | 67 |
| 006/120041 | A3 | 4 | 0.75 | 1 | 8 | 10.4 | 108 |
| 006/120042 | A3 | 6 | 0.75 | 1.1 | 9.7 | 12.5 | 160 |
| 006/120043 | A3 | 10 | 0.75 | 1.2 | 12.6 | 16.1 | 259 |
| 006/120044 | A3 | 14 | 0.75 | 1.3 | 13.8 | 17.7 | 495 |
| 006/120045 | A3 | 36 | 0.75 | 1.6 | 21.6 | 26.9 | 752 |
| 006/120046 | A3 | 48 | 0.75 | 1.6 | 24.3 | 30.7 | 963 |
| 006/120050 | A4 | 2 + E | 0.75 | 1 | 7.4 | 7.8 | 80 |
| 006/120051 | A4 | 2 + E | 2.5 | 1.1 | 10.1 | 10.5 | 145 |
| NETWORK RAIL PART NO. / PADS | CABLE TYPE | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 006/120061 | B1 | 1 | 2.5 | 2 | 7.2 | 8.9 | 34 |
| 006/120062 | B1 | 1 | 10 | 2 | 9.4 | 11.8 | 205 |
| 006/120063 | B1 | 1 | 35 | 2 | 12.9 | 16.1 | 495 |
| 006/161004 | B2 | 2 | 1 | 2 | 9.9 | 13 | 240 |
| 006/120081 | B2 | 2 | 1.5 | 2 | 9.4 | 12.1 | 151 |
| 006/120082 | B2 | 2 | 2.5 | 2 | 10.5 | 13.1 | 187 |
| 006/161005 | B2 | 2 | 4 | 2 | 13.2 | 16.3 | 267 |
| 006/120083 | B2 | 2 | 10 | 2 | 15 | 18.7 | 448 |
| 006/120113 | B2 | 2 | 16 | 2 | 16.7 | 20.9 | 630 |
| 006/120084 | B2 | 2 | 35 | 2.2 | 22.3 | 27.8 | 1520 |
| 006/120085 | B2 | 2 | 70 | 2.4 | 28.8 | 36 | 1904 |
| 006/120086 | B2 | 2 | 95 | 2.6 | 33.2 | 41.5 | 2885 |
| 006/161008 | B2 | 3 | 10 | 2 | 17.3 | 20.7 | 525 |
| 006/161009 | B2 | 3 | 16 | 2 | 19.8 | 23.2 | 770 |
| 006/120087 | B2 | 4 | 0.75 | 2 | 10.2 | 12.8 | 173 |
| 006/120088 | B2 | 4 | 1.5 | 2 | 10.9 | 13.7 | 220 |
| 006/120089 | B2 | 4 | 2.5 | 2 | 11.9 | 14.8 | 264 |
| 006/120090 | B2 | 7 | 0.75 | 2 | 11.8 | 14.7 | 240 |
| 006/120091 | B2 | 7 | 1.5 | 2 | 12.6 | 15.8 | 305 |
| 006/120092 | B2 | 7 | 2.5 | 2 | 13.8 | 17.2 | 390 |
| 006/120093 | B2 | 10 | 0.75 | 2 | 14.4 | 18 | 345 |
| 006/120094 | B2 | 10 | 1.5 | 2 | 15.6 | 19.4 | 405 |
| 006/120095 | B2 | 10 | 2.5 | 2 | 17.1 | 21.3 | 565 |
| 006/120096 | B2 | 12 | 0.75 | 2 | 14.8 | 18.5 | 350 |
| 006/120097 | B2 | 12 | 1.5 | 2 | 16 | 20 | 465 |
| 006/120098 | B2 | 12 | 2.5 | 2 | 17.6 | 22 | 570 |
| 006/120099 | B2 | 19 | 0.75 | 2 | 17 | 21.3 | 490 |
| 006/120100 | B2 | 19 | 1.5 | 2 | 18.5 | 23.1 | 649 |
| 006/120101 | B2 | 19 | 2.5 | 2 | 20.4 | 25.5 | 886 |
| 006/120102 | B2 | 27 | 0.75 | 2 | 20.1 | 25.1 | 640 |
| 006/120103 | B2 | 27 | 1.5 | 2.2 | 22.2 | 27.8 | 880 |
| 006/120104 | B2 | 27 | 2.5 | 2.2 | 24.6 | 30.7 | 1225 |
| 006/120105 | B2 | 37 | 0.75 | 2.2 | 22.7 | 28.4 | 850 |
| 006/120106 | B2 | 37 | 1.5 | 2.2 | 25.1 | 31.4 | 1190 |
| 006/120107 | B2 | 37 | 2.5 | 2.4 | 27.8 | 34.7 | 1310 |
| 006/120108 | B2 | 48 | 0.75 | 2.2 | 25.7 | 32.2 | 1590 |
| 006/120109 | B2 | 48 | 1.5 | 2.4 | 28.1 | 35.1 | 1650 |
| 006/120110 | B2 | 48 | 2.5 | 2.6 | 31.2 | 39 | 1980 |
| 006/120111 | B2 | 6 x 2 | 0.75 | 2 | 19.7 | 24.6 | 465 |
| 006/120114 | B2 | 6 x 2 | 2.5 | 2 | 23.7 | 29.6 | 570 |
| NETWORK RAIL PART NO. / PADS | CABLE TYPE | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 006/120130 | C1 | 1 | 2.5 | 3.8 | 11.2 | 14 | 174 |
| 006/120140 | C2 | 2 | 2.5 | 3.8 | 14.9 | 18.8 | 338 |
| 006/120141 | C2 | 4 | 2.5 | 3.8 | 16.4 | 20.9 | 450 |
| 006/120142 | C2 | 7 | 2.5 | 3.8 | 18.7 | 23.7 | 612 |
| 006/120143 | C2 | 10 | 2.5 | 3.8 | 22.5 | 28.6 | 836 |
| 006/120120 | C2 | 6 x 2 | 0.75 | 3.8 | 23.2 | 29.3 | 868 |
| 006/120144 | C2 | 12 | 2.5 | 3.8 | 23.2 | 29.3 | 909 |
| 006/120145 | C2 | 16 | 2.5 | 3.8 | 25.3 | 32 | 985 |
| 006/160086 | C3 | 2 + Drain | 2.5 | 3.8 | 15 | 20 | 341 |
| NETWORK RAIL PART NO. / PADS | CABLE TYPE | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm |
|---|---|---|---|---|---|---|
| 006/120211 | D1 | 1 | 0.75 | 2 | 6.5 | 8.1 |
| 006/120212 | D1 | 1 | 1.5 | 2 | 6.8 | 8.5 |
| 006/120213 | D1 | 1 | 2.5 | 2 | 7.2 | 8.9 |
| 006/120214 | D1 | 1 | 10 | 2 | 9.4 | 11.8 |
| 006/120215 | D1 | 1 | 35 | 2 | 12.9 | 16.1 |
| 006/120217 | D2 | 2 | 2.5 | 2 | 10.5 | 13.1 |
| 006/120218 | D2 | 2 | 10 | 2 | 15 | 18.7 |
| 006/120226 | D2 | 2 | 16 | 2 | 16.7 | 20.9 |
| 006/120219 | D2 | 2 | 35 | 2.2 | 22.3 | 27.8 |
| 006/120220 | D2 | 2 | 70 | 2.4 | 28.8 | 36 |
| 006/120221 | D2 | 2 | 95 | 2.6 | 33.2 | 41.5 |
| 006/120222 | D2 | 4 | 0.75 | 2 | 10.2 | 12.8 |
| 006/120223 | D2 | 4 | 1.5 | 2 | 10.9 | 13.7 |
| 006/120224 | D2 | 4 | 2.5 | 2 | 11.9 | 14.8 |
| 006/120225 | D2 | 4 | 10 | 2 | 18.8 | 19.2 |
| 006/120227 | D2 | 7 | 0.75 | 2 | 11.8 | 14.7 |
| 006/120228 | D2 | 7 | 1.5 | 2 | 12.6 | 15.8 |
| 006/120229 | D2 | 7 | 2.5 | 2 | 13.8 | 17.2 |
| 006/120230 | D2 | 10 | 0.75 | 2 | 14.4 | 18 |
| 006/120231 | D2 | 10 | 1.5 | 2 | 15.6 | 19.4 |
| 006/120232 | D2 | 10 | 2.5 | 2 | 17.1 | 21.3 |
| 006/120233 | D2 | 12 | 0.75 | 2 | 14.8 | 18.5 |
| 006/120234 | D2 | 12 | 1.5 | 2 | 16 | 20 |
| 006/120235 | D2 | 12 | 2.5 | 2 | 17.6 | 22 |
| 006/120236 | D2 | 19 | 0.75 | 2 | 17 | 21.3 |
| 006/120237 | D2 | 19 | 1.5 | 2 | 18.5 | 23.1 |
| 006/120210 | D2 | 19 | 2.5 | 2 | 20.4 | 25.5 |
| 006/120238 | D2 | 27 | 0.75 | 2 | 20.1 | 25.1 |
| 006/120239 | D2 | 27 | 1.5 | 2.2 | 22.2 | 27.8 |
| 006/120240 | D2 | 27 | 2.5 | 2.2 | 22.2 | 27.8 |
| 006/120241 | D2 | 37 | 0.75 | 2.2 | 22.7 | 28.4 |
| 006/120242 | D2 | 37 | 1.5 | 2.2 | 25.1 | 31.4 |
| 006/120243 | D2 | 37 | 2.5 | 2.4 | 27.8 | 34.7 |
| 006/120244 | D2 | 48 | 0.75 | 2.2 | 25.7 | 32.2 |
| 006/120245 | D2 | 48 | 1.5 | 2.4 | 28.1 | 35.1 |
| 006/120246 | D2 | 48 | 2.5 | 2.6 | 31.2 | 39 |
| 006/120247 | D2 | 6 x 2 | 0.75 | 2 | 19.7 | 24.6 |
| 006/120248 | D2 | 6 x 2 | 1.5 | 2 | 21.4 | 26.8 |
| 006/120249 | D2 | 6 x 2 | 2.5 | 2 | 23.7 | 29.6 |
| NETWORK RAIL PART NO. / PADS | CABLE TYPE | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 006/120172 | E1 | 1 | 2.5 | 3.8 | 11.2 | 14 | 174 |
| 006/120170 | E2 | 2 | 2.5 | 3.8 | 14.9 | 18.8 | 359 |
| 006/120171 | E2 | 4 | 2.5 | 3.8 | 16.4 | 20.9 | 445 |
| 006/120173 | E2 | 7 | 2.5 | 3.8 | 18.7 | 23.7 | 590 |
| 006/120174 | E2 | 10 | 2.5 | 3.8 | 22.5 | 28.6 | 784 |
| 006/120175 | E2 | 12 | 2.5 | 3.8 | 23.2 | 29.3 | 868 |
| 006/160090 | E3 | 2 + Drain | 2.5 | 3.8 | 15 | 20 | 341 |
| NO. OF CORES | CONDUCTOR STRANDING mm | CONDUCTOR DIAMETER mm | INSULATION RADIAL THICKNESS mm | INSULATION DIAMETER mm | LAY UP DIAMETER mm | SHEATH RADIAL THICKNESS mm | SHEATH DIAMETER mm |
|---|---|---|---|---|---|---|---|
| 1 | 9/0.30 | 1.14 | 0.56 | 2.26 | - | - | - |
| 7 | 9/0.30 | 1.14 | 0.56 | 2.26 | 6.83 | 0.9 | 8.63 |
| 12 | 9/0.30 | 1.14 | 0.56 | 2.26 | 9.45 | 1 | 11.45 |
| 19 | 9/0.30 | 1.14 | 0.56 | 2.26 | 11.4 | 1.1 | 13.6 |
| 37 | 9/0.30 | 1.14 | 0.56 | 2.26 | 15.92 | 1.3 | 18.52 |
| 48 | 9/0.30 | 1.14 | 0.56 | 2.26 | 18.45 | 1.4 | 21.25 |
