SCADA Pilot Cable Description
SCADA pilot cables are twisted-pair, multi-core, compound-filled telecom cables with copper conductors, polyethylene (PE) insulation, and a backing layer. They are suitable for modern monitoring systems operating in the 300-3000 Hz frequency range. These cables are UV resistant and waterproof, and can be laid directly outdoors or in conduits.

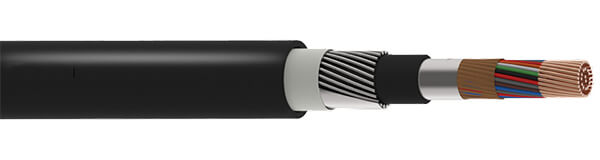

SCADA Pilot Cable Construction
- Conductor
- Class 1 Solid Copper
- Insulation
- PE (Polyethylene)
- Filling Compound
- Petroleum Jelly
- Separator
- PET (Polyester Tape)
- Moisture Barrier
- Al/PE (Aluminium/Polyethylene) laminate tape
- Bedding
- PE (Polyethylene)
- Screen
- Aluminium Wire
- Separator2
- Water Blocking Tape
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
- MDPE (Medium Density Polyethylene)
SCADA Pilot Cable Characteristics
- Temperature Rating
- -25°C to +85°C
- Minimum Bending Radius
- 10 x overall diameter
SCADA Pilot Cable
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS 0.9mm | NOMINAL THICKNESS OF INSULATION mm | AVERAGE MUTUAL CAPACITANCE nF/km | MAXIMUM CAPACITANCE UNBALANCE BETWEEN PAIRS nF/500m | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 006/122516 | 20 | 0.3 | 71 | 275 | 1.8 | 27.8 | 946 |
| 006/120030 | 10 | 0.3 | 71 | 275 | 1.8 | 27.8 | 807 |
| 006/120031 | 30 | 0.3 | 71 | 275 | 2.0 | 31.8 | 1225 |
| 006/120032 | 20 | 0.3 | 71 | 275 | 1.8 | 27.8 | 946 |
| 006/120034 | 30 | 0.3 | 71 | 275 | 1.8 | 31.8 | 1225 |
