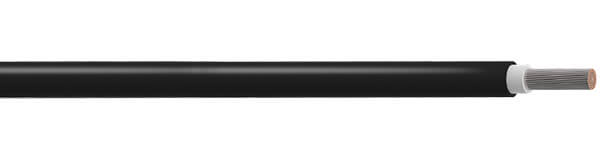

SE0260 Cable

SE0260 Cable Description

SE 0260 cable is designed for signaling applications, using Category 2 stranded bare or tinned copper conductors and polyvinyl chloride (PVC), low smoke halogen-free (LSZH), or limited fire hazard (LFH) insulation, depending on the type (Type A, Type B, or Type C).

PVC cables are suitable for above-ground locations, LSZH cables are suitable for underground, tunnel, and station applications, while LFH (limited fire hazard) cables are suitable for 25kV fire-resistant isolation zones.

SE0260 Cable Construction

Conductor
Class 2 Stranded Plain or Tinned Copper
Insulation
Type A: PVC / PVC (Polyvinyl Chloride)
Type B: LSZH / LSZH (Low Smoke Zero Halogen)
Type C: LFH/LFH (Limited Fire Hazard)

SE0260 Cable Characteristics

Voltage Rating
0.6/1kV
Temperature Rating
-25°C to +85°C
Minimum Bending Radius
3 x overall diameter

SE0260 Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS	NOMINAL DIAMETER OF STRANDS mm	MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	16	19	1.04	1.15	10.3	249
