SE0527 Cable

SE0527 Cable Description

SE0527 cable features Class 1 solid tinned copper conductors, EPR insulation, an independent concentric return conductor spiral shield, and a tinned copper braided shield that effectively prevents electromagnetic interference. Its polychloroprene rubber (PCP) outer sheath provides robust protection against tearing, abrasion, and potential contact with oil and chemicals. This cable is suitable for applications where it needs to cross tracks.

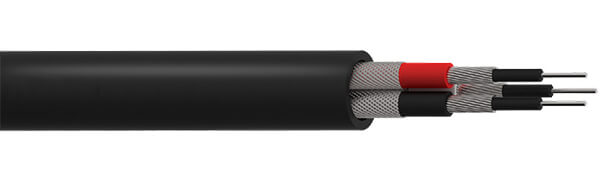

SE0527 Cable Construction

Conductor
Class 1 Solid Tinned Copper
Insulation
EPR (Ethylene Propylene Rubber)
Concentric Return Conductor
Tinned Copper Spiral Screen
Inner Sheath
EPR (Ethylene Propylene Rubber)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PCP (Polychloroprene)

SE0527 Cable Characteristics

Voltage Rating
250V
Temperature Rating
-15°C to +85°C
Minimum Bending Radius
6 x overall diameter

SE0527 Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS IN CONDUCTOR	NOMINAL DIAMETER OF STRANDS mm	MAXIMUM DC RESISTANCE OF CONDUCTOR & CONCENTRIC RETURN CONDUCTOR AT 20°C ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	1.85	1	1.53	9.66	31.8	1325
5	1.85	1	1.53	9.66	36.6	1710
