SE0774 Cable Description
SE0774 cable uses Category 2 stranded tinned copper conductors and a limited fire hazard (LFH) insulation layer, making it suitable for enclosed tunnels and indoor spaces. This cable is specifically designed for safety-critical signaling equipment rooms. It can also be used as a grounding cable to safely conduct power to ground in the event of a fault or failure, thereby minimizing the risk of damage to the signaling system.

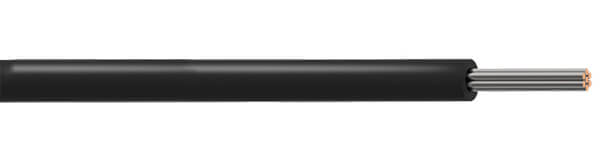

SE0774 Cable Construction
- Conductor
- Class 2 Stranded Tinned Copper
- Insulation
- LSZH (Low Smoke Zero Halogen)
SE0774 Cable Characteristics
- Voltage Rating
- 700V
- Temperature Rating
- -15°C to +85°C
- Minimum Bending Radius
- Up to 16mm²: 2 x overall diameter
- Above 16mm²: 3 x overall diameter
SE0774 Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1.13 | 18.2 | 4 | 28 |
| 1 | 4 | 7 | 0.85 | 4.7 | 5.5 | 33 |
| 1 | 6 | 7 | 1.04 | 3.11 | 6.1 | 90 |
| 1 | 16 | 7 | 1.7 | 1.16 | 8.1 | 197 |
| 1 | 35 | 19 | 1.53 | 0.529 | 10.9 | 389 |
