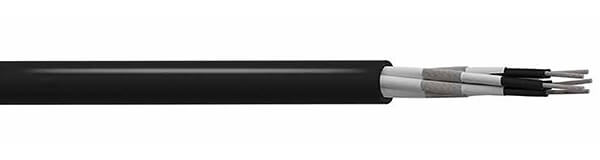

SE0875 Cable

SE0875 Cable Description

SE0875 cable features tinned copper conductors, a low-smoke halogen-free (LSZH) insulation layer, and an outer sheath, which limits the generation of smoke and toxic gases in the event of a fire. Its tinned copper wire braided (TCWB) shield provides electromagnetic interference (EMI) protection.

This cable is specifically designed for use in enclosed spaces and tunnels, and is suitable for signal safety circuits, railway signaling, and track crossings, typically installed in harsh environments.

SE0875 Cable Construction

Conductor
Class 5 Flexible Stranded Tinned Copper
Insulation
LSZH (Low Smoke Zero Halogen)
Screen
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)

SE0875 Cable Characteristics

Voltage Rating
450/750V
Temperature Rating
-15°C to +85°C
Minimum Bending Radius
6 x overall diameter

SE0875 Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER mm	NOMINAL WEIGHT kg/km
5	1.16	17.33	0.9	14.3	360
10	1.16	17.33	0.9	23.4	740
