SE1047 Cable

SE1047 Cable Description

SE1047 cable is rated for 600/1000V and operates over a temperature range of -15°C to +85°C. It features tinned copper conductors and a PVC or limited fire-resistant (LFH) sheath. Types 3 and 4 have an additional tinned copper braided layer for electromagnetic shielding, reducing signal interference. This cable is designed for safety-critical signals between central terminal frames and signaling equipment.

SE1047 Cable Construction

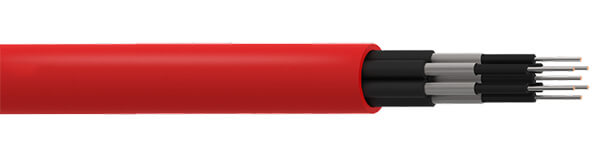

	Rail Concentric Signalling SE1047 Type 1 Cable - LUL Approved	Rail Concentric Signalling LFH SE1047 Type 2 Cable - LUL Approved	Rail Concentric Signalling Screened SE1047 Type 3 Cable - LUL Approved	Rail Concentric Signalling Screened LFH SE1047 Type 4 Cable - LUL Approved
Conductor	Class 1 Solid Tinned Copper
Insulation	PVC (Polyvinyl Chloride)	XLPE (Cross-Linked Polyethylene)	PVC (Polyvinyl Chloride)	XLPE (Cross-Linked Polyethylene)
Concentric Return Conductor	Tinned Copper Spiral Screen
Inner Sheath	PVC (Polyvinyl Chloride)	PE (Polyethylene)	PVC (Polyvinyl Chloride)	PE (Polyethylene)
Screen	-		TCWB (Tinned Copper Wire Braid)
Outer Sheath	PVC (Polyvinyl Chloride)	LFH (Limited Fire Hazard)	PVC (Polyvinyl Chloride)	LFH (Limited Fire Hazard)

SE1047 Cable Characteristics

Voltage Rating
0.6/1kV
Temperature Rating
-15°C to +85°C
Minimum Bending Radius
6 x overall diameter

Rail Concentric Signalling SE1047 Type 1 Cable - LUL Approved
Rail Concentric Signalling LFH SE1047 Type 2 Cable - LUL Approved
Rail Concentric Signalling Screened SE1047 Type 3 Cable - LUL Approved
Rail Concentric Signalling Screened LFH SE1047 Type 4 Cable - LUL Approved

NO. OF UNITS	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS IN CONDUCTORS	NOMINAL DIAMETER OF STRANDS IN CONDUCTOR mm	MAXIMUM DC RESISTANCE OF CONDUCTOR & COCENTRIC RETURN CONDUCTOR AT 20°C ohms/km	MINIMUM NO. OF STRANDS IN CONCENTRIC RETURN CONDUCTOR	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1.85	1	1.53	11/9.66	33	10.9	173
3	1.85	1	1.53	11/9.66	33	18.4	453
7	1.85	1	1.53	11/9.66	33	23.9	771
19	1.85	1	1.53	11/9.66	33	36.8	1815

NO. OF UNITS	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS IN CONDUCTORS	NOMINAL DIAMETER OF STRANDS IN CONDUCTOR mm	MAXIMUM DC RESISTANCE OF CONDUCTOR & COCENTRIC RETURN CONDUCTOR AT 20°C ohms/km	MINIMUM NO. OF STRANDS IN CONCENTRIC RETURN CONDUCTOR	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1.85	1	1.53	11/9.66	33	10.3	140
3	1.85	1	1.53	11/9.66	33	17.1	361
7	1.85	1	1.53	11/9.66	33	22.1	612
19	1.85	1	1.53	11/9.66	33	33.8	1429

NO. OF UNITS	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS IN CONDUCTORS	NOMINAL DIAMETER OF STRANDS IN CONDUCTOR mm	MAXIMUM DC RESISTANCE OF CONDUCTOR & COCENTRIC RETURN CONDUCTOR AT 20°C ohms/km	MINIMUM NO. OF STRANDS IN CONCENTRIC RETURN CONDUCTOR	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1.85	1	1.53	11/9.66	33	11.6	210
3	1.85	1	1.53	11/9.66	33	19.9	561
7	1.85	1	1.53	11/9.66	33	25.9	987
19	1.85	1	1.53	11/9.66	33	40.2	2375

NO. OF UNITS	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS IN CONDUCTORS	NOMINAL DIAMETER OF STRANDS IN CONDUCTOR mm	MAXIMUM DC RESISTANCE OF CONDUCTOR & COCENTRIC RETURN CONDUCTOR AT 20°C ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1.85	1	1.53	11/9.66	11	184
3	1.85	1	1.53	11/9.66	18.6	487
7	1.85	1	1.53	11/9.66	24.1	875
19	1.85	1	1.53	11/9.66	37.2	2120
