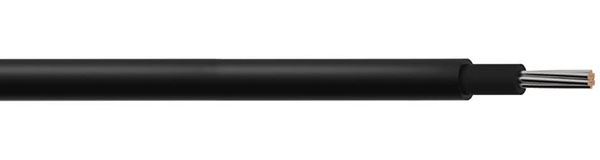

T0504 Cable

T0504 Cable Description

T0504 cable features tinned copper conductors, limited fire-resistant (LFH) insulation, and an outer sheath. It has a nominal operating voltage of 900V and a rated voltage to ground of 3kV. This cable is used to transmit control signals indicating that there are no trains on a specific section of track, thus confirming that trains can pass safely.

T0504 Cable Construction

Conductor
Class 2 Stranded Tinned Copper
Insulation
LFH (Limited Fire Hazard)
Outer Sheath
LFH (Low Fire Hazard)

T0504 Cable Characteristics

Voltage Rating
3kV
Temperature Rating
-15°C to +85°C
Minimum Bending Radius
6 x overall diameter

T0504 Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS	NOMINAL DIAMETER OF STRANDS mm	MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
4	0.5	7	0.85	4.7	21.6	624
