NR/PS/ELP/21101 Cable Description
As power cables, they form any portion of a DC traction power supply circuit, originating at the substation and terminating at the traction conductor rail. They can be used to connect the conductor rail to the depot shore power system or as a connector between two sections of conductor rail. NR/PS/ELP/21101 LSZH also meets London Underground’s approved fire protection standard, LUL 1-085.
NR/PS/ELP/21101 Cable Construction
| NR/PS/ELP/21101 LSZH Trackfeeder Cable | NR/PS/ELP/21101 Trackfeeder Cable | |
|---|---|---|
| Conductor | Class 2 Stranded Aluminium | Class 2 Stranded Aluminium or Tinned Copper |
| Separator | Identification Tape | PET (Polyester Tape) |
| Sheath | LSZH (Low Smoke Zero Halogen) | CSP (Chlorosulphonated Polyethylene) |
NR/PS/ELP/21101 Cable Characteristics
| NR/PS/ELP/21101 LSZH Trackfeeder Cable | NR/PS/ELP/21101 Trackfeeder Cable | |
|---|---|---|
| Voltage Rating | 750V | 650/750V |
| Temperature Rating | -25°C to +85°C | |
| Minimum Bending Radius | Fixed: 10 x overall diameter | Aluminium conductor - Fixed: 10 x overall diameter Copper conductor - Fixed: 8 x overall diameter |

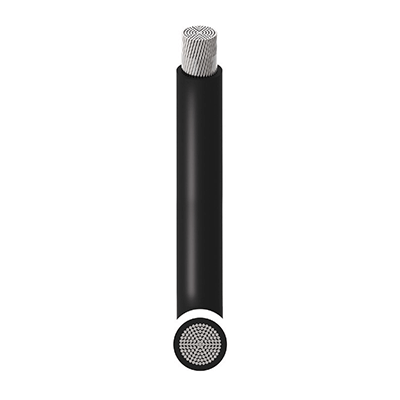

- NR/PS/ELP/21101 LSZH Trackfeeder Cable

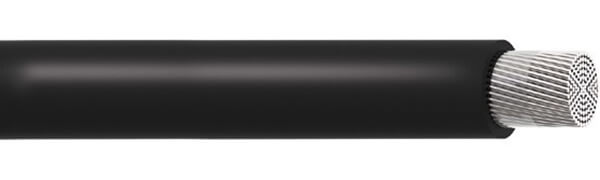

- NR/PS/ELP/21101 Trackfeeder Cable
| NETWORK RAIL PART NO./ PADS | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | ASSIGNED CONTINUOUS CURRENT RATING Amps | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 0006/187747 | 1 | 1000 | 5.7 | 54 ± 0.5 | 1500 | 4200 |
| NETWORK RAIL PART NO./ PADS | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR MATERIAL | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | ASSIGNED CONTINUOUS CURRENT RATING Amps | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| POSITIVE TRACK CABLES | ||||||||
| 006/132840 | 500 | Aluminium | 61 | 3.2 | 28.8 | 40.2 | 800 | 2300 |
| 006/116612 | 630 | Copper | 127 | 2.52 | 32.8 | 44.2 | 1500 | 7020 |
| 006/116610 | 1000 | Aluminium | 127 | 3.2 | 41.6 | 53 | 1500 | 4250 |
| NEGATIVE TRACK CABLES | ||||||||
| 006/116601 | 150 | Aluminium | 37 | 2.25 | 15.8 | 19.4 | 430 | 580 |
| 006/132340 | 161 | Copper | 91 | 1.53 | 16.8 | 24.8 | 550 | 1950 |
| 006/132990 | 240 | Aluminium | 61 | 2.25 | 20.3 | 28.3 | 550 | 1190 |
| 006/132991 | 800 | Aluminium | 127 | 2.85 | 37.1 | 48.5 | 1200 | 3500 |
