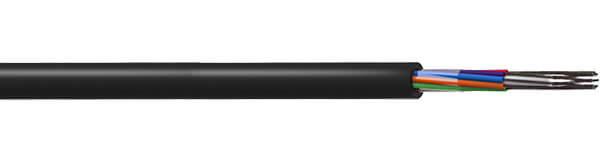

Trackside Fibre Cable Description
Trackside fiber cables can be used outdoors, underground, and directly buried. Suitable for high-volume, high-data-rate applications and fixed telecommunications networks (FTN), they can be laid along railway tracks. This series of cables can be equipped with corrugated steel/polymer composite armor tape; the armored cables can withstand various environmental and mechanical stresses.
Trackside Fibre Cable Construction
| NR/PS/TEL/00014 Fibre Trackside PE Cable | NR/PS/TEL/00014 Armoured Fibre Trackside Cable | |
|---|---|---|
| Fibre | Step-Index Single-Mode | |
| Fibre Carrier | Loose tube PE (Polyethylene) | |
| Strength Member | Single Continuous Non-Metallic | |
| Water Blocking Compound | Unspecified Water Blocking | |
| Separator | PET (Polyester Tape) | |
| Bedding | - | PE (Polyethylene) or LSZH (Low Smoke Zero Halogen) |
| Armour | - | Corrugated Steel/Polymer Laminate Tape |
| Outer Sheath | PE (Polyethylene) or LSZH (Low Smoke Zero Halogen) | |
Trackside Fibre Cable Characteristics
- Temperature Rating
- Operating: -20°C to +60°C
- Transport and storage: -40°C to +70°C
- Installation: -30°C to +60°C
- Minimum Bending Radius
- 12 x overall diameter
- NR/PS/TEL/00014 Fibre Trackside PE Cable
- NR/PS/TEL/00014 Armoured Fibre Trackside Cable
| NETWORK RAIL PART NO. / PADS | NO. OF FIBRES | NOMINAL THICKNESS OF CLADDING μm | NOMINAL POLYMER TUBE DIAMETER mm | OPTICAL ATTENUATION 1290-1330nm dB/km | OPTICAL ATTENUATION 1525-1575nm dB/km | NOMINAL INNER SHEATH THICKNESS mm | NOMINAL THICKNESS OF SHEATH mm |
|---|---|---|---|---|---|---|---|
| 006/169053 | 24 | 125 | 2.5 | 0.38 | 0.22 | 1.6 | 2 |
| 006/169013 | 48 | 125 | 2.5 | 0.38 | 0.22 | 1.6 | 2 |
| NETWORK RAIL PART NO. / PADS | NO. OF FIBRES | SHEATH | NOMINAL THICKNESS OF CLADDING μm | NO. OF TUBES | FIBRES PER TUBES | OPTICAL ATTENUATION 1290-1330nm dB/km | OPTICAL ATTENUATION 1525-1575nm dB/km | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|---|
| 006/169063 | 24 | PE | 125 | 6 | 4 | 0.38 | 0.22 | 17.2 | 280 |
| 006/169023 | 48 | PE | 125 | 6 | 8 | 0.38 | 0.22 | 17.2 | 280 |
| 006/169043 | 48 | LSZH | 125 | 6 | 8 | 0.38 | 0.22 | 17.8 | 430 |
| 006/169073 | 24 | LSZH | 125 | 6 | 4 | 0.38 | 0.22 | 17.8 | 430 |
