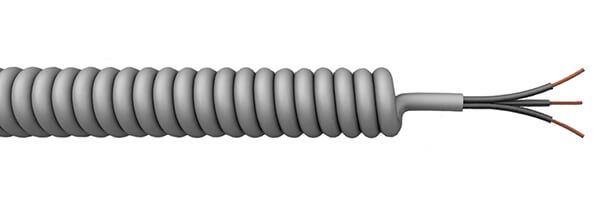

Curly Flex Cable Description
Curly Flex Cable is known for its durability and ability to withstand repeated bending and stretching, and is commonly used in applications where the cable needs to be extended for use, but needs to be retracted for storage or to avoid clutter. It is widely used in industries such as manufacturing, telecommunications, the automotive industry, machinery, and plant engineering.
These cables are divided into PVC (Polyvinyl Chloride) – a common material used for cable jackets and insulation, and TPR (Thermoplastic Rubber) – used for more rugged applications where a more durable jacket is needed.
Curly Flex Cable Construction
| Curly Flex PVC Cable | Curly Flex TPR Cable | |
|---|---|---|
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | PVC (Polyvinyl Chloride) | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | TPR (Thermo Plastic Rubber) |
Curly Flex Cable Characteristics
| Curly Flex PVC Cable | Curly Flex TPR Cable | |
|---|---|---|
| Voltage Rating (Uo/U) | 300/500V | |
| Temperature Rating | Flexed: -5°C to +60°C | 0°C to +70°C |
Curly Flex Cable Colur Code
- 3 core: Green/Yellow, Blue, Brown
- 4 core: Green/Yellow, Brown, Black, Grey
- 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Curly Flex PVC Cable

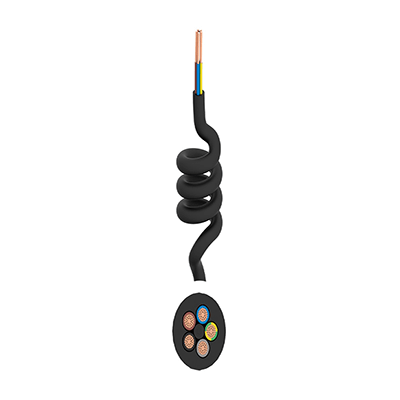

- Curly Flex TPR Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | UNEXTENDED LENGTH mm | EXTENDED LENGTH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL SPIRAL OVERALL DIAMETER mm |
|---|---|---|---|---|---|
| 3 | 0.75 | 1000 | 5000 | 9.5 | 35 |
| 3 | 1 | 1000 | 5000 | 9.5 | 35 |
| 3 | 1.5 | 1000 | 5000 | 10 | 36 |
| 3 | 2.5 | 1000 | 5000 | 11.5 | 42 |
| 4 | 0.75 | 1000 | 5000 | 9.5 | 35 |
| 4 | 1 | 1000 | 5000 | 9.5 | 35 |
| 4 | 1.5 | 1000 | 5000 | 11.5 | 42 |
| 4 | 2.5 | 1000 | 5000 | 12.5 | 47 |
| 5 | 0.75 | 1000 | 5000 | 10.5 | 37 |
| 5 | 1.5 | 1000 | 5000 | 13 | 51 |
| 5 | 2.5 | 1000 | 5000 | 14 | 53 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | UNEXTENDED LENGTH mm | EXTENDED LENGTH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL SPIRAL OVERALL DIAMETER mm |
|---|---|---|---|---|---|
| 3 | 0.75 | 1000 | 5000 | 9.5 | 35 |
| 3 | 1 | 1000 | 5000 | 9.5 | 35 |
| 3 | 1.5 | 1000 | 5000 | 10 | 36 |
| 3 | 2.5 | 1000 | 5000 | 11.5 | 42 |
| 4 | 0.75 | 1000 | 5000 | 9.5 | 35 |
| 4 | 1 | 1000 | 5000 | 9.5 | 35 |
| 4 | 1.5 | 1000 | 5000 | 11.5 | 42 |
| 4 | 2.5 | 1000 | 5000 | 12.5 | 47 |
| 5 | 0.75 | 1000 | 5000 | 10.5 | 37 |
| 5 | 1.5 | 1000 | 5000 | 13 | 51 |
| 5 | 2.5 | 1000 | 5000 | 14 | 53 |
