DN-F Cable

DN-F Cable Description

DN-F cables feature Category 5 flexible copper conductors and thermosetting rubber insulation (SE1 type), suitable for dry, wet, or submerged environments, including outdoor areas and hazardous areas with explosive gases. Applications include power supplies for industrial and agricultural workshops, buildings, heavy equipment, engines, mobile machinery, and lifting equipment. It is also suitable for underwater installation (AD8).

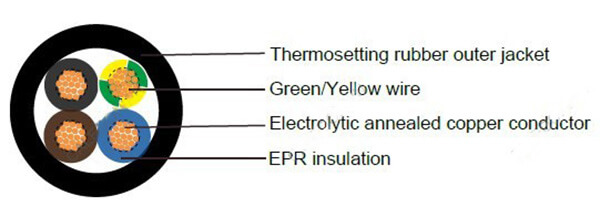

DN-F Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Thermosetting rubber type EPR
Outer sheath
Thermosetting flexible rubber type SE1

DN-F Cable Characteristics

Voltage Rating
0,6/1 KV
Thermal performance
Maximum conductor temperature: 90°C.
Maximum short-circuit temperature: 250°C (max. 5 s).
Mechanical performance
Minimum bending radius:
3x cable diameter < 12 mm.
4x cable diameter ≥ 12 mm.

DN-F Cable

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Fixed Inst. (A)	Mobile Service (A)	Voltage drop (V/A·km)
1 x 1,5	5,9	45	28	16	30,7
1 x 2,5	6,5	60	39	25	18,4
1 x 4	7,4	85	53	34	11,4
1 x 6	8,1	110	68	43	7,63
1 x 10	9,9	175	93	60	4,42
1 x 16	11,2	240	124	79	2,80
1 x 25	13,0	345	161	104	1,80
1 x 35	14,6	460	200	129	1,28
1 x 50	17,0	635	242	162	0,893
1 x 70	19,1	845	310	202	0,629
1 x 95	21,4	1.1	377	240	0,476
1 x 120	23,3	1.375	437	280	0,372
1 x 150	25,8	1.695	504	321	0,298
1 x 185	28,1	2.045	575	363	0,245
1 x 240	31,3	2.635	679	433	0,185
1 x 300	34,4	3.275	783	497	0,148
1 x 400	39,0	4.27	940	586	0,112
1 x 500	41,9	5.37	1.083	670	0,0888
1 x 630	47,8	6.96	1.254	784	0,0664
2 x 1	7,7	75	21	10	45,1
2 x 1,5	8,5	100	26	16	30,7
2 x 2,5	10,1	145	36	25	18,4
2 x 4	11,8	200	49	34	11,4
2 x 6	12,7	250	63	43	7,63
2 x 10	17,7	485	86	60	4,42
2 x 16	20,2	670	115	79	2,80
2 x 25	24,5	995	149	105	1,80
2 x 35	26,3	1.24	185	130	1,28
2 x 50	31,9	1.765	225	165	0,893
2 x 70	36,0	2.335	289	205	0,629
3 G 1	8,3	95	21	10	45,1
3 G 1,5	9,3	125	26	16	30,7
3 G 2,5	11,1	185	36	25	18,4
3 G 4	12,7	260	49	35	11,4
3 G 6	14,3	335	63	44	7,63
3 G 10	19,6	630	86	62	4,42
3 G 16	21,8	855	115	82	2,80
3 G 25	26,1	1.25	149	109	1,80
3 G 35	29,4	1.65	185	135	1,28
3 G 50	33,7	2.235	225	169	0,893
3 G 70	38,3	2.97	289	211	0,629
3 G 95	44,0	3.93	352	250	0,476
3 G 120	47,5	4.815	410	292	0,372
3 G 150	52,0	5.9	473	335	0,298
3 G 185	57,7	7.165	542	378	0,245
4 G 1	9,2	120	21	10	45,1
4 G 1,5	10,4	160	26	16	30,7
4 G 2,5	12,1	225	36	20	18,4
4 G 4	14,0	320	49	30	11,4
4 G 6	15,7	425	63	37	7,63
4 G 10	21,4	775	86	52	4,42
4 G 16	24,6	1.08	115	69	2,80
4 G 25	29,5	1.61	149	92	1,80
4 G 35	32,7	2.1	185	114	1,28
4 G 50	37,7	2.865	225	143	0,893
4 G 70	42,3	3.795	289	178	0,629
4 G 95	48,4	4.995	352	210	0,476
4 G 120	53,0	6.11	410	246	0,372
4 G 150	58,0	7.565	473	282	0,298
4 G 185	64,0	9.18	542	319	0,245
4 G 240	72,0	11.94	641	377	0,185
5 G 1	9,9	145	21	10	45,1
5 G 1,5	11,3	185	26	16	30,7
5 G 2,5	13,5	280	36	20	18,4
5 G 4	15,6	395	49	30	11,4
5 G 6	17,7	530	63	38	7,63
5 G 10	23,9	945	86	54	4,42
5 G 16	27,0	1.32	115	71	2,80
5 G 25	32,5	1.96	149	94	1,80
5 G 35	35,8	2.545	185	114	1,28
5 G 50	41,9	3.535	225	143	0,893
5 G 70	47,2	4.68	289	178	0,629
5 G 95	53,5	6.09	352	210	0,476
5 G 120	58,0	7.455	410	246	0,372
5 G 150	65,1	9.3	473	282	0,298
5 G 185	71,4	11.24	542	319	0,245
7 G 1,5	15,0	315	26	16	30,7
7 G 2,5	17,1	435	36	25	18,4
7 G 4	20,2	640	49	34	11,4
8 G 1,5	15,5	350	26	16	30,7
8 G 2,5	18,4	510	36	25	18,4
8 G 4	21,8	740	49	34	11,4
10 G 2,5	19,2	560	36	25	18,4
10 G 4	22,8	830	49	34	11,4
12 G 1,5	17,5	445	26	16	30,7
12 G 2,5	20,6	650	36	25	18,4
12 G 4	24,4	950	49	34	11,5
14 G 2,5	21,7	745	36	25	18,4
16 G 1,5	19,6	580	26	16	30,7
16 G 2,5	22,5	845	36	25	18,4
18 G 1,5	20,5	645	26	16	30,7
18 G 2,5	23,6	920	36	25	18,4
19 G 1,5	21,2	680	26	16	30,7
19 G 2,5	25,1	1.005	36	25	18,4
24 G 1,5	23,4	815	26	16	30,7
24 G 2,5	27,3	1.19	36	25	18,4
27 G 1,5	24,5	895	26	16	30,7
27 G 2,5	28,7	1.315	36	25	18,4
