H03RT-H Cable

H03RT-H Cable Description

HO3RT-H cables use Category 6 tinned/bare copper conductors and EPR insulation (EI4 type), offering high heat resistance, moisture resistance, and abrasion resistance. They are commonly designed for appliances such as irons, toasters, and electric heaters that may accidentally come into contact with high-temperature surfaces.

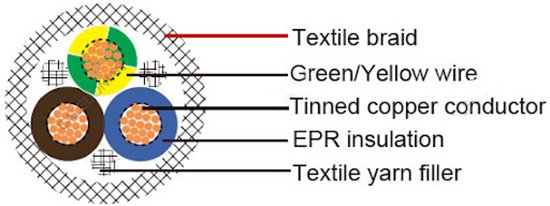

H03RT-H Cable Construction

Conductor
Class 6 stranded plain copper / tinned conductor
Insulation
EI4 type cross-linked elastomeric compound, EPR
Bedding
Textile yarns
Sheath
Textile yarn braiding

H03RT-H Cable Characteristics

Voltage Rating U0/U
300/300 V
Operating Tempetature
-20°C to +60°C
Conductor Short-Circuit Temp
200°C (Max. 5 sec)

H03RT-H Cable Specifications

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius (free movement) (mm)	Max. Resistance of Conductors at 20℃ (ohm / km)
3x0,75	7,1	58	28	26
3x1	7,3	71	29	19,5
3x1,5	7,5	89	30	13,3
