H05BN4-F and H07BN4-F Cable Description
Cables with conductor sizes of 0.75mm² and 1mm² are designated H05BN4-F, while larger sizes are designated H07BN4-F. H05BN4-F is rated for 300/500V, while the larger H07BN4-F is rated for 450/750V.
This series of products is oil-resistant, weather-resistant, and abrasion-resistant, making it ideal for industrial machinery, wind turbines, and portable tools in humid or dry environments.

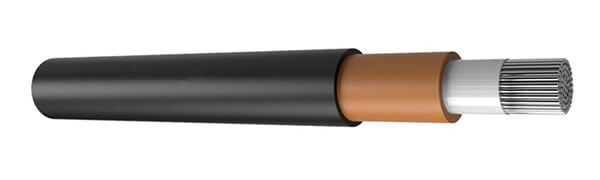

H05BN4-F and H07BN4-F Cable Construction
- Conductor
- Class 5 flexible stranded Copper
- Insulation
- EPR (Ethylene Propylene Rubber)
- Outer Sheath
- HOFR CSP (Heat and Oil Resistant and Flame Retardant Chlorosulphonated Polyethylene)
H05BN4-F and H07BN4-F Cable Characteristics
| H05BN4-F Cable | H07BN4-F Cable | |
|---|---|---|
| Voltage Rating | 300/500V | 450/750V |
| Temperature Rating | Fixed: -40°C to +90°C | Fixed: -40°C to +90°C Flexed: -15°C to +90°C |
| Minimum Bending Radius | 6x outer diameter | Up to 25mm² - Flexed: 6 x overall diameter Above 25mm² - Flexed: 8 x overall diameter |
- H05BN4-F Cable
- H07BN4-F Cable
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER mm |
|---|---|---|---|
| 2 | 0.75 | 0.8 | 6.1 |
| 2 | 1 | 0.9 | 6.6 |
| 3 | 0.75 | 0.9 | 6.7 |
| 3 | 1 | 0.9 | 7 |
| 4 | 0.75 | 0.9 | 7.2 |
| 4 | 1 | 0.9 | 7.8 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 10 | 1.2 | 10.7 | 200 |
| 1 | 16 | 1.2 | 12.1 | 270 |
| 1 | 25 | 1.4 | 14.25 | 380 |
| 1 | 35 | 1.4 | 16.1 | 510 |
| 1 | 50 | 1.6 | 18.55 | 680 |
| 1 | 70 | 1.6 | 21 | 930 |
| 1 | 95 | 1.8 | 23.4 | 1200 |
| 1 | 120 | 1.8 | 25.7 | 1460 |
| 1 | 150 | 2 | 28.3 | 1800 |
| 1 | 185 | 2.2 | 31 | 2200 |
| 1 | 240 | 2.4 | 34.5 | 2800 |
| 1 | 300 | 2.6 | 35.6 | 3350 |
| 1 | 400 | 2.8 | 42.1 | 4400 |
| 1 | 500 | 3 | 46.7 | 5400 |
| 1 | 630 | 3 | 51.3 | 6900 |
