H05RN-F Cable

H05RN-F Cable Description

H05RN-F cable features Category 5 stranded copper conductors, EPR (ethylene propylene rubber) insulation, and a durable, oil-resistant chloroprene rubber (Nicotin) outer sheath. Its Category 5 flexible copper conductors are available in only two sizes: 0.75 mm² and 1 mm². Standard configurations include 2-core, 3-core, and 4-core options.

H05RN-F cable is renowned for its exceptional flexibility, capable of withstanding various challenges such as weather changes, oil/grease contamination, mechanical stress, and thermal stress. It is suitable for low-stress applications in dry, humid, or submerged environments, and can also be used outdoors (but not for extended periods). It is commonly used in portable handheld household devices, workshop tools (such as soldering irons), furniture, and the construction industry (primarily for prefabricated building components).

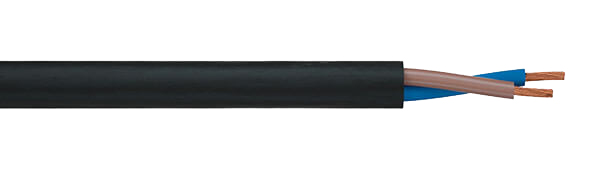

h05rn-f

H05RN-F Cable Construction

Conductor
Class 5 flexible copper conductor
Insulation
EPR (Ethylene Propylene Rubber)
Sheath
PCP (Polychloroprene)

H05RN-F Cable Characteristics

Voltage Rating U/Uo
300/500V
Temperature Rating
Operating: -40°C to +60°C
Minimum installation and use temperature: -25°C
Maximum temperature of short circuit: +200°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Mobile: 6 x overall diameter

H05RN-F Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM CONDUCTOR DIAMETER mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm		NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM CONDUCTOR DIAMETER mm	NOMINAL THICKNESS OF INSULATION mm	Minimum	Maximum	NOMINAL WEIGHT kg/km
2	0.75	0.95	0.6	5.7	7.4	44
2	1	1.3	0.6	6.1	8	55
3	0.75	0.95	0.6	6.2	8.1	60
3	1	1.3	0.6	6.5	8.5	72
4	0.75	0.95	0.6	6.8	8.8	82
4	1	1.3	0.6	7.1	9.3	87
