318-TRS / H05RR-F Cable Description
318-TRS / H05RR-F features a durable rubber composite insulation and jacket that can be repeatedly coiled and unwound without excessive wear, ensuring durability and safety even in wet environments.
This cable is suitable for electrical and electronic equipment, such as home appliances, small hand tools, and office equipment, that may be subject to light to moderate stress in both dry and wet environments. Ideal for use as a 13-amp extension cord to power portable devices.
318-TRS / H05RR-F Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- Rubber Compound
- Outer Sheath
- Rubber
318-TRS / H05RR-F Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- Temperature Rating
- Fixed: -25ºC to +60ºC
- Minimum Bending Radius
- Flexed: 4 x overall diameter
- Fixed: 3 x overall diameter
318-TRS / H05RR-F Cable Colur Code
- 2 core: Blue, Brown
- 3 core: Green/Yellow, Blue, Brown
- 4 core: Green/Yellow, Brown, Black, Grey
- 5 core: Green/Yellow, Brown, Black, Grey, Blue

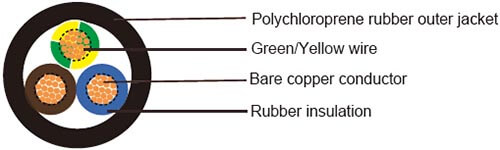

318-TRS / H05RR-F Cable Diagram
318-TRS / H05RR-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm |
|---|---|---|---|
| 2 | 0.75 | 0.6 | 6.1 |
| 2 | 1 | 0.6 | 6.6 |
| 2 | 1.5 | 0.8 | 7.8 |
| 2 | 2.5 | 0.9 | 9.2 |
| 2 | 4 | 1 | 10.8 |
| 3 | 0.75 | 0.6 | 6.6 |
| 3 | 1 | 0.6 | 7 |
| 3 | 1.5 | 0.8 | 8.4 |
| 3 | 2.5 | 0.9 | 9.9 |
| 3 | 4 | 1 | 11.7 |
| 3 | 6 | 1 | 13.3 |
| 4 | 0.75 | 0.6 | 7.3 |
| 4 | 1 | 0.6 | 7.6 |
| 4 | 1.5 | 0.8 | 9.4 |
| 4 | 2.5 | 0.9 | 11.1 |
| 4 | 4 | 1 | 13 |
| 4 | 6 | 1 | 14.5 |
| 5 | 0.75 | 0.6 | 8.1 |
| 5 | 1 | 0.6 | 8.4 |
| 5 | 1.5 | 0.8 | 10.3 |
| 5 | 2.5 | 0.9 | 12.4 |
| 5 | 4 | 1 | 14.5 |
