H07RN-F Cable Description
H07RN-F cable is resistant to chemicals, mechanical stress and various weather conditions. It is used in a wide range of applications, including handling equipment, mobile power supplies, construction sites, stage and audio-visual equipment, port areas and dams.
The cable is flame retardant according to IEC/EN 60332-1-2 and waterproof according to AD8 standards.

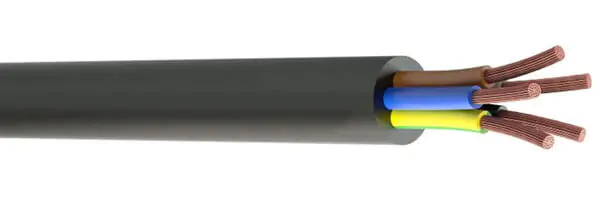

H07RN-F Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- EPR (Ethylene Propylene Rubber)
- Outer Sheath
- PCP (Polychloroprene)
H07RN-F Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- Fixed: -30°C to +90°C
- Flexed: – 15°C to +90°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
H07RN-F Cable Colour Code
- 1 core: Black
- 2 core: Blue, Brown
- 3 core: Green/Yellow, Blue, Brown
- 4 core: Green/Yellow, Brown, Black, Grey
- 5 core: Green/Yellow, Blue, Brown, Black, Grey
- 6 core and above: Black with White numbers, Green/Yellow

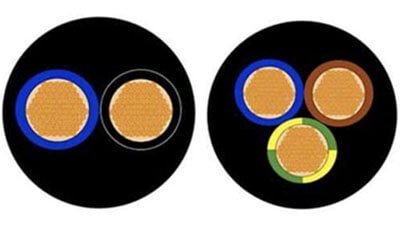

H07RN-F 2 core and 3 core
H07RN-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | A2 GLANDS Brass | A2PL GLAND Plastic |
|---|---|---|---|---|---|---|
| 1 | 1.5 | 0.8 | 5.8 | 52 | 20/16 | 20S |
| 1 | 2.5 | 0.9 | 6.5 | 67 | 20/16 | 20S |
| 1 | 4 | 1 | 7.4 | 92 | 20/16 | 20S |
| 1 | 6 | 1 | 8.1 | 119 | 20S | 20S |
| 1 | 10 | 1.2 | 9.8 | 185 | 20S | 20S |
| 1 | 16 | 1.2 | 11.35 | 258 | 20 | 20 |
| 1 | 25 | 1.4 | 13.3 | 375 | 25 | 20 |
| 1 | 35 | 1.4 | 14.6 | 485 | 25 | 25 |
| 1 | 50 | 1.6 | 17.2 | 669 | 25 | 25 |
| 1 | 70 | 1.6 | 19.35 | 892 | 32 | 32 |
| 1 | 95 | 1.8 | 22.2 | 1160 | 32 | 32 |
| 1 | 120 | 1.8 | 24.3 | 1436 | 32 | 32 |
| 1 | 150 | 2 | 25.9 | 1748 | 40 | 40 |
| 1 | 185 | 2.2 | 29.7 | 2142 | 40 | 40 |
| 1 | 240 | 2.4 | 31.5 | 2698 | 50S | 50S |
| 1 | 300 | 2.6 | 36.5 | 3348 | 50 | 50S |
| 1 | 400 | 2.8 | 40.4 | 4293 | 50 | 50 |
| 1 | 500 | 3 | 42.6 | 5262 | 50 | 50 |
| 1 | 630 | 3 | 47.2 | 6790 | 63S | 63S |
| 2 | 1 | 0.8 | 8.1 | 94 | 20S | 20S |
| 2 | 1.5 | 0.8 | 9 | 120 | 20S | 20S |
| 2 | 2.5 | 0.9 | 10.7 | 173 | 20S | 20S |
| 2 | 4 | 1 | 12.3 | 239 | 20 | 20 |
| 2 | 6 | 1 | 13.8 | 313 | 25 | 25 |
| 2 | 10 | 1.2 | 18.6 | 563 | 32 | 25 |
| 2 | 16 | 1.2 | 21.7 | 830 | 32 | 32 |
| 2 | 25 | 1.4 | 25.8 | 1211 | 40 | 40 |
| 3 | 1 | 0.8 | 8.74 | 117 | 20S | 20S |
| 3 | 1.5 | 0.8 | 9.68 | 147 | 20S | 20S |
| 3 | 2.5 | 0.9 | 11.48 | 123 | 20 | 20 |
| 3 | 4 | 1 | 13.2 | 297 | 25 | 25 |
| 3 | 6 | 1 | 14.78 | 390 | 25 | 25 |
| 3 | 10 | 1.2 | 19.9 | 705 | 32 | 32 |
| 3 | 16 | 1.2 | 23.31 | 1031 | 32 | 32 |
| 3 | 25 | 1.4 | 27.7 | 1512 | 40 | 40 |
| 3 | 35 | 1.4 | 30.2 | 1907 | 50S | 50S |
| 3 | 50 | 1.6 | 35.8 | 2651 | 50 | 50S |
| 3 | 70 | 1.6 | 40.1 | 3484 | 50 | 50 |
| 3 | 95 | 1.8 | 46.4 | 4594 | 63S | 63S |
| 4 | 1 | 0.8 | 9.63 | 142 | 20S | 20S |
| 4 | 1.5 | 0.8 | 10.63 | 180 | 20S | 20S |
| 4 | 2.5 | 0.9 | 12.6 | 260 | 20 | 20 |
| 4 | 4 | 1 | 14.6 | 336 | 25 | 25 |
| 4 | 6 | 1 | 16.4 | 449 | 25 | 32 |
| 4 | 10 | 1.2 | 21.8 | 833 | 32 | 32 |
| 4 | 16 | 1.2 | 25.4 | 1138 | 40 | 40 |
| 4 | 25 | 1.4 | 30.7 | 1714 | 50S | 50 |
| 4 | 35 | 1.4 | 33.4 | 2204 | 50S | 50 |
| 4 | 50 | 1.6 | 39.6 | 3029 | 50 | - |
| 4 | 70 | 1.6 | 44.9 | 4121 | 63 | - |
| 4 | 95 | 1.8 | 51.9 | 5361 | 63 | - |
| 4 | 120 | 1.8 | 55.3 | 6546 | - | - |
| 4 | 150 | 2 | 60.8 | 8095 | - | - |
| 4 | 185 | 2.2 | 65.7 | 9652 | - | - |
| 4 | 240 | 2.4 | 75.7 | 12614 | - | - |
| 5 | 1.5 | 0.8 | 11.8 | 206 | 20 | 20L |
| 5 | 2.5 | 0.9 | 14 | 297 | 25 | 25 |
| 5 | 4 | 1 | 16.2 | 422 | 25 | 25 |
| 5 | 6 | 1 | 18.2 | 567 | 32 | 32 |
| 5 | 10 | 1.2 | 24 | 1010 | 40 | 40 |
| 5 | 16 | 1.2 | 28.2 | 1400 | 40 | 40 |
| 5 | 25 | 1.4 | 33.9 | 2096 | 50S | 50 |
| 5 | 35 | 1.4 | 37.2 | 2700 | 50 | 50 |
| 5 | 50 | 1.6 | 44 | 3730 | 63S | 63S |
| 5 | 70 | 1.6 | 48 | 5033 | 63 | - |
| 5 | 95 | 1.6 | 53.2 | 6271 | 63 | - |
| 7 | 1.5 | 0.8 | 15.13 | 315 | 25 | 25 |
| 7 | 2.5 | 0.9 | 17.6 | 445 | 25 | 32 |
| 12 | 1.5 | 0.8 | 18.2 | 493 | 25 | 32 |
| 12 | 2.5 | 0.9 | 21.4 | 702 | 32 | 32 |
| 19 | 1.5 | 0.8 | 22.1 | 710 | 32 | 32 |
