H07RN8-F Cable Description
H07RN8-F cable can withstand moderate mechanical stress and can be used in industrial or agricultural workshop equipment. It is also suitable for fixed installation along the floor or shelf at temporary construction sites, as well as the connection of lifting equipment, machinery, and other structural parts.
H07RN8-F cable is waterproof and can be used in fresh water at a maximum depth of 10 meters and a maximum water temperature of 40°C, so it can be used as a power supply cable for submersible pumps. However, it is not suitable for underwater power transmission or installation in waterways or in places where mechanical damage may occur and cause danger.
H07RN8-F Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- Rubber
- Outer Sheath
- Rubber
H07RN8-F Cable Characteristics
- Voltage Rating U/Uo
- 450/750V
- Temperature Rating
- Fixed: -40°C to +60°C
- Flexed: -15°C to +60°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
H07RN8-F Cable Colour Code
- 1 core: Black
- 2 core: Blue, Brown
- 3 core: Green/Yellow, Blue, Brown
- 4 core: Green/Yellow, Blue, Brown, Grey
- 5 core: Green/Yellow, Blue, Brown, Black, Grey
- 6 core and above: Black with White numbers, Green/Yellow

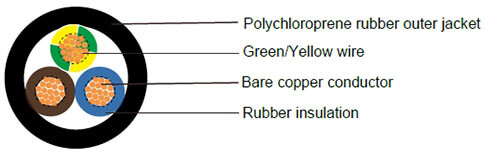

H07RN8-F 3 Core
H07RN8-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | 1.5 | 5.7 | 7.1 | 50 |
| 1 | 2.5 | 1.9 | 6.3 | 7.9 | 70 |
| 1 | 4 | 2.4 | 7.2 | 9 | 100 |
| 1 | 6 | 3 | 7.9 | 9.8 | 130 |
| 1 | 10 | 3.9 | 9.5 | 11.9 | 200 |
| 1 | 16 | 4.9 | 10.8 | 13.4 | 280 |
| 1 | 25 | 6.1 | 12.7 | 15.8 | 400 |
| 1 | 35 | 7.3 | 14.3 | 17.9 | 510 |
| 1 | 50 | 8.9 | 16.5 | 20.6 | 710 |
| 3 | 1.5 | 1.5 | 9.2 | 11.9 | 150 |
| 3 | 2.5 | 1.9 | 10.9 | 14 | 210 |
| 3 | 4 | 2.4 | 12.7 | 16.2 | 280 |
| 3 | 6 | 3 | 14.1 | 18 | 370 |
| 3 | 10 | 3.9 | 19.1 | 24.2 | 660 |
| 3 | 16 | 4.9 | 21.8 | 27.6 | 920 |
| 3 | 25 | 6.1 | 26.1 | 33 | 1360 |
| 3 | 35 | 7.3 | 29.3 | 37.1 | 1820 |
| 3 | 50 | 8.9 | 34.1 | 42.9 | 2500 |
| 4 | 1 | 1.2 | 9.2 | 11.9 | 150 |
| 4 | 1.5 | 1.5 | 10.2 | 13.1 | 190 |
| 4 | 2.5 | 1.9 | 12.1 | 15.5 | 260 |
| 4 | 4 | 2.4 | 14 | 17.9 | 350 |
| 4 | 6 | 3 | 15.7 | 20 | 460 |
| 4 | 10 | 3.9 | 20.9 | 26.5 | 830 |
| 4 | 16 | 4.9 | 23.8 | 30.1 | 1190 |
| 4 | 25 | 6.1 | 28.9 | 36.6 | 1720 |
| 4 | 35 | 7.3 | 32.5 | 41.1 | 2260 |
| 7 | 1.5 | 1.5 | 15 | 19 | 340 |
| 7 | 2.5 | 1.9 | 17.5 | 21.5 | 500 |
| 12 | 1.5 | 1.5 | 17.6 | 22.4 | 530 |
| 12 | 2.5 | 1.9 | 20.6 | 26.2 | 720 |
| 18 | 1.5 | 1.5 | 20.7 | 26.3 | 700 |
| 24 | 1.5 | 1.5 | 24.3 | 30.7 | 960 |
| 36 | 1.5 | 1.5 | 27.8 | 35.2 | 1360 |
