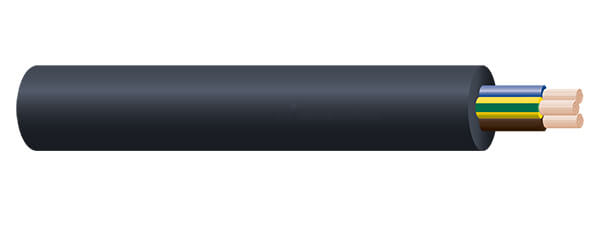

H07ZZ-F Cable Description
H07ZZ-F cable is often seen as a replacement for the H07RN-F rubber flexible cable – providing the same flexible power distribution solution but also addressing fire safety issues.
H07ZZ-F cable should be used in dry, damp and wet environments, including industrial and agricultural workshops, construction sites, and in the connection of machinery and equipment expected to be subjected to moderate mechanical stress. It is also suitable for mobile power supplies, UPS units, and stage lighting and audio-visual equipment.
The cables comply with the EN 50525-3-21 standard and the IEC/EN 60332-3-10 flame retardant standard.
H07ZZ-F Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- LSZH (Low Smoke Zero Halogen) Cross-Linked Compound
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
H07ZZ-F Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- Fixed: -20°C to +90°C
- Flexed: -5°C to +50°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
H07ZZ-F Cable Colour Code
- 1 core: Black
- 2 core: Blue, Brown
- 3 core: Green/Yellow, Blue, Brown
- 4 core: Green/Yellow, Brown, Black, Grey
- 5 core: Green/Yellow, Blue, Brown, Black, Grey
- 6 core and above: Black with White numbers, Green/Yellow

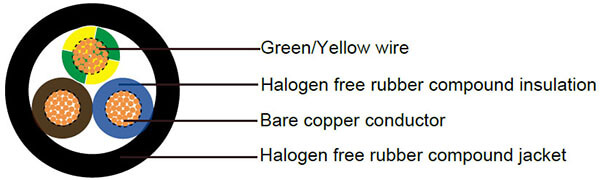

H07ZZ-F 3 Core
H07ZZ-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | A2 GLANDS Brass | A2PL GLAND Plastic |
|---|---|---|---|---|---|
| 1 | 1.5 | 6.4 | 63 | - | - |
| 1 | 2.5 | 7.1 | 76 | - | - |
| 1 | 4 | 8.1 | 107 | 20S | 20 |
| 1 | 6 | 8.85 | 140 | 20S | 20 |
| 1 | 10 | 10.7 | 213 | 20S | 20 |
| 1 | 16 | 12.1 | 291 | 20 | 25 |
| 1 | 25 | 14.25 | 415 | 25 | 25 |
| 1 | 35 | 16.1 | 539 | 25 | 25 |
| 1 | 50 | 18.55 | 740 | 25 | 32 |
| 1 | 70 | 20.95 | 989 | 32 | 32 |
| 1 | 95 | 23.4 | 1290 | 32 | 40 |
| 1 | 120 | 25.7 | 1592 | 40 | 40 |
| 1 | 150 | 28.3 | 1957 | 40 | 40 |
| 1 | 185 | 31 | 2350 | 50S | 50 |
| 1 | 240 | 34.45 | 3099 | 50 | 63 |
| 1 | 300 | 37.7 | 3687 | 50 | - |
| 1 | 400 | 42.1 | 4850 | 63S | - |
| 1 | 500 | 46.65 | 5998 | 63 | - |
| 2 | 1 | 8.85 | 112 | - | - |
| 2 | 1.5 | 9.75 | 135 | 20S | 20 |
| 2 | 2.5 | 11.65 | 190 | 20 | 25 |
| 2 | 4 | 13.45 | 255 | 25 | - |
| 2 | 6 | 14.95 | 335 | 25 | - |
| 2 | 10 | 20.15 | 590 | 32 | - |
| 2 | 16 | 22.95 | 821 | 32 | - |
| 2 | 25 | 27.5 | 1172 | 40 | - |
| 3 | 1 | 9.5 | 125 | - | - |
| 3 | 1.5 | 10.55 | 129 | 20 | 20 |
| 3 | 2.5 | 12.45 | 250 | 25 | 25 |
| 3 | 4 | 14.45 | 330 | 25 | - |
| 3 | 6 | 16.05 | 440 | 25 | - |
| 3 | 10 | 21.65 | 800 | 32 | - |
| 3 | 16 | 24.7 | 1150 | 40 | - |
| 3 | 25 | 29.55 | 1680 | 50S | - |
| 3 | 35 | 33.2 | 2170 | 50S | - |
| 4 | 1 | 10.55 | 170 | 20S | - |
| 4 | 1.5 | 11.65 | 196 | 20 | 25 |
| 4 | 2.5 | 13.8 | 275 | 25 | 25 |
| 4 | 4 | 15.95 | 388 | 25 | 25 |
| 4 | 6 | 17.85 | 515 | 32 | 32 |
| 4 | 10 | 23.7 | 882 | 40 | 40 |
| 4 | 16 | 26.95 | 1234 | 40 | 40 |
| 4 | 25 | 32.75 | 1811 | 50S | 50 |
| 4 | 35 | 36.8 | 2365 | 50 | 63 |
| 4 | 50 | 42.6 | 3212 | 63S | - |
| 4 | 70 | 48.35 | 4320 | 63 | - |
| 4 | 95 | 54.7 | 5572 | 73S | - |
| 4 | 120 | 59.5 | 6930 | 75 | - |
| 4 | 150 | 65.5 | 8419 | - | - |
| 4 | 185 | 72 | 10165 | - | - |
| 4 | 240 | 81.5 | 13420 | - | - |
| 5 | 1 | 11.65 | 205 | 20 | - |
| 5 | 1.5 | 12.8 | 242 | 25 | 25 |
| 5 | 2.5 | 15.15 | 341 | 25 | 25 |
| 5 | 4 | 17.75 | 495 | 32 | 32 |
| 5 | 6 | 19.85 | 642 | 32 | 32 |
| 5 | 10 | 26 | 1090 | 40 | 40 |
| 5 | 16 | 29.85 | 1534 | 50S | 50 |
| 5 | 25 | 36.2 | 2291 | 50 | 63 |
| 5 | 35 | 39.5 | 2700 | - | - |
| 5 | 50 | 44.2 | 3730 | 63S | - |
| 5 | 70 | 50.4 | 5022 | - | - |
| 5 | 95 | 56.2 | 6520 | - | - |
| 5 | 120 | 64.1 | 8080 | - | - |
| 5 | 150 | 70.1 | 8660 | - | - |
| 7 | 1.5 | 16.7 | 355 | 25 | 32 |
| 12 | 1.5 | 20 | 660 | 32 | 32 |
| 19 | 1.5 | 27.5 | 788 | 40 | 40 |
| 27 | 1.5 | 31.5 | 1077 | 40 | 40 |
| 37 | 1.5 | 36.5 | 1358 | 50S | 50 |
