NSGAFÖU Cable

NSGAFÖU Cable

NSGAFÖU cable is a single core flexible rubber cable rated at 1.8/3kV for power and general wiring.

  • iso-certification
  • ce-certification
  • ccc-certification
  • ul-certification
  • abs-certification

NSGAFÖU Cable Description

NSGAFÖU cable exhibits good flame retardancy and oil resistance, making it suitable for indoor use in dry environments, and is often used in general equipment wiring and switch cabinets.

The cable provides short-circuit and ground fault protection and is often used in the wiring of rolling stock and buses. The unique flexibility makes it suitable for installations that require bending.

nsgafou-cable

NSGAFÖU Cable Construction

  • Conductor
  • Class 5 Flexible Stranded Tinned Copper
  • Insulation
  • EPR (Ethylene Propylene Rubber)
  • Outer Sheath
  • PCP (Polychloroprene)

NSGAFÖU Cable Characteristics

  • Voltage Rating Uo/U
  • 1.8/3kV
  • Temperature Rating
  • Fixed: -40°C to +90°C
  • Flexed: -25°C to +90°C
  • Minimum Bending Radius
  • Fixed: 4 x overall diameter
  • Flexed: 5 x overall diameter

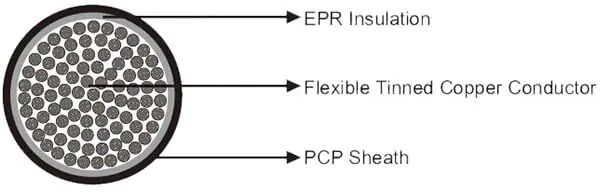

nsgafou-cable-diagram

NSGAFÖU Cable Diagram

NSGAFÖU Cable Specifications

NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm²
NOMINAL THICKNESS OF INSULATION
mm
NOMINAL THICKNESS OF SHEATH
mm
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
11.51.30.86.351
12.51.30.86.763
141.30.87.482
161.30.87.9103
1101.50.89.5159
1161.50.810.5219
1251.6112.8335
1351.6114.1435
1501.8115.9582
1701.8117.8757
1952.2120.11040
11202.21221289
11502.21.2241581
11852.41.226.31895
12402.61.229.62452
13002.81.232.22998
14003.11.440.54200
15003.41.642.0 5500
