(N)SSCHÖU – J 0.6/1kV Cable Description
(N)SSCHÖU cables feature Category 5 tinned copper conductors, rubber insulation, and a copper braided shield, providing electromagnetic compatibility protection. Its rubber outer sheath is flame-retardant and effectively resists mechanical stress, UV radiation, oil, grease, abrasion, and tearing.
This cable is suitable for dry, wet, water-immersed, and hazardous environments, and can be submerged up to 100 meters in fresh/salt/sewage water. “-j” indicates the inclusion of a protective grounding (green/yellow) conductor.

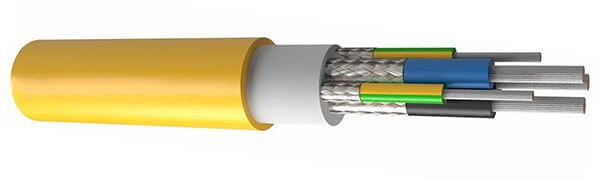

(N)SSCHÖU – J 0.6/1kV Cable Construction
- Conductor
- Class 5 tinned copper conductor
- Earth Conductor
- Class 5 tinned copper conductor
- Insulation
- Rubber compound
- Screen
- TCWB (Tinned Copper Wire Braid)
- Inner Sheath
- Rubber compound
- Outer Sheath
- Rubber compound
(N)SSCHÖU – J 0.6/1kV Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Range
- Maximum Short Circuit Temperature: 250°C
- Static Condition: -40°C to +80°C
- Mobile Condition: -25°C to +80°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 5 x overall diameter
(N)SSCHÖU - J 0.6/1kV Cable Specification
| NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL WEIGHT kg/km | MAXIMUM TENSILE LOAD N |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 3 + 3 | 16 | 2.5E | 4.8 | 24.6 | 27.1 | 12 | 1170 | 720 |
| 3 + 3 | 25 | 4E | 6.1 | 28.4 | 31.1 | 15 | 1650 | 1125 |
| 3 + 3 | 35 | 16/3E | 7.2 | 31.9 | 33.6 | 22 | 2200 | 1575 |
| 3 + 3 | 50 | 25/3E | 8.9 | 37.6 | 39.3 | 25 | 3110 | 2250 |
| 3 + 3 | 70 | 35/3E | 10.6 | 41.4 | 44.2 | 30 | 3990 | 3150 |
| 3 + 3 | 95 | 50/3E | 12.5 | 47.7 | 49.4 | 34 | 5080 | 4275 |
| 3 + 3 | 120 | 70/3E | 14.2 | 51.6 | 53.4 | 38 | 6250 | 5400 |
| 3 + 3 | 150 | 70/3E | 15.9 | 56.5 | 58.3 | 53 | 7450 | 6750 |
| 3 + 3 | 185 | 95/3E | 17.7 | 62.4 | 64.4 | 59 | 9200 | 8325 |
| 3 + 3 | 240 | 120/3E | 20.1 | 68.4 | 71.3 | 67 | 11700 | 10800 |
