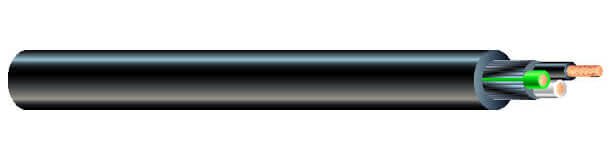

SJOOW / SOOW

SJOOW / SOOW Cable Description

SOOW is commonly used in heavy equipment, construction machinery, motors and welding wires, portable lighting, shallow water immersion, and mining environments.

SJOOW is a basic version, typically used for lighter applications such as small motors, portable tools, temporary power supplies, and household appliances.

SJOOW / SOOW Cable Construction

Conductor
Stranded bare copper
Insulation
EPDM (Ethylene Propylene Diene Monomer)
Assembly
Insulated cores cabled together with integral fillers
Outer Sheath
Chlorinated Polyethylene (CPE)

SJOOW / SOOW Cable Characteristics

Rated Voltage
SJOOW: 300 V
SOOW: 600 V
Temperature Range
-40 °C to +90 °C

SJOOW
SOOW

Number of Cores and Size	No of wire x Diameter of Wire	Nominal Insulation Thickness		Cable Diameter Approx. (Tolerance ±5%)		Cable Weight Approx.	Cable Weight Approx.
No. x..AWG	No. x ..AWG	inches	mm	mm	inches	kg/km	Ibs/MF
2 x 18AWG	16 x 30	0,03	0,76	7,4	0,291	59	40
3 x 18AWG	16 x 30	0,03	0,76	7,9	0,311	77	52
4 x 18AWG	16 x 30	0,03	0,76	8,6	0,339	95	64
2 x 16AWG	26 x 30	0,03	0,76	8	0,315	73	49
3 x 16AWG	26 x 30	0,03	0,76	8,5	0,335	96	65
4 x 16AWG	26 x 30	0,03	0,76	9,4	0,37	120	80
2 x 14AWG	41 x 30	0,03	0,76	8,8	0,346	96	65
3 x 14AWG	41 x 30	0,03	0,76	9,4	0,37	130	37
4 x 14AWG	41 x 30	0,03	0,76	10,7	0,421	173	116
2 x 12AWG	65 x 30	0,03	0,76	10,3	0,406	140	94
3 x 12AWG	65 x 30	0,03	0,76	11	0,433	185	124
4 x 12AWG	65 x 30	0,03	0,76	12,2	0,48	240	161
2 x 10AWG	104 x 30	0,045	1,14	14	0,551	246	165
3 x 10AWG	104 x 30	0,045	1,14	15	0,591	320	215
4 x 10AWG	104 x 30	0,045	1,14	17	0,67	425	286

Number of Cores and Size	No of wire x Diameter of Wire	Nominal Insulation Thickness		Cable Diameter Approx. (Tolerance ±5%)		Cable Weight Approx.	Cable Weight Approx.
No. x..AWG	No. x ..AWG	inches	mm	mm	inches	kg/km	Ibs/MF
2 x 18AWG	16 x 30	0,03	0,76	8,8	0,346	88	59
3 x 18AWG	16 x 30	0,03	0,76	9,3	0,66	107	72
4 x 18AWG	16 x 30	0,03	0,76	10	0,394	132	89
5 x 18AWG	16 x 30	0,03	0,76	11,8	0,465	182	122
6 x 18AWG	16 x 30	0,03	0,76	12,6	0,496	206	138
7 x 18AWG	16 x 30	0,03	0,76	13,6	0,535	231	155
8 x 18AWG	16 x 30	0,03	0,76	13,9	0,547	244	164
10 x 18AWG	16 x 30	0,03	0,76	15,4	0,606	290	195
12 x 18AWG	16 x 30	0,03	0,76	15,9	0,626	325	218
14 x 18AWG	16 x 30	0,03	0,76	16,6	0,654	362	243
16 x 18AWG	16 x 30	0,03	0,76	18,2	0,717	442	297
18 x 18AWG	16 x 30	0,03	0,76	19	0,748	482	324
20 x 18AWG	16 x 30	0,03	0,76	20	0,787	524	352
24 x 18AWG	16 x 30	0,03	0,76	21,8	0,858	601	404
30 x 18AWG	16 x 30	0,03	0,76	23	0,906	706	475
2 x 16AWG	26 x 30	0,03	0,76	9,4	0,37	104	70
3 x 16AWG	26 x 30	0,03	0,76	9,9	0,39	128	86
4 x 16AWG	26 x 30	0,03	0,76	10,8	0,425	162	109
5 x 16AWG	26 x 30	0,03	0,76	12,6	0,496	219	147
6 x 16AWG	26 x 30	0,03	0,76	13,5	0,531	249	167
7 x 16AWG	26 x 30	0,03	0,76	13,5	0,531	270	182
8 x 16AWG	26 x 30	0,03	0,76	14,9	0,587	300	202
9 x 16AWG	26 x 30	0,03	0,76	16,4	0,646	342	230
10 x 16AWG	26 x 30	0,03	0,76	16,6	0,654	358	240
12 x 16AWG	26 x 30	0,03	0,76	17,9	0,705	440	296
14 x 16AWG	26 x 30	0,03	0,76	18,7	0,736	491	330
16 x 16AWG	26 x 30	0,03	0,76	19,6	0,772	549	369
18 x 16AWG	26 x 30	0,03	0,76	20,5	0,807	601	404
20 x 16AWG	26 x 30	0,03	0,76	21,6	0,85	656	440
22 x 16AWG	26 x 30	0,03	0,76	22,6	0,89	710	477
24 x 16AWG	26 x 30	0,03	0,76	23,6	0,929	757	509
26 x 16AWG	26 x 30	0,03	0,76	23,6	0,929	800	538
30 x 16AWG	26 x 30	0,03	0,76	25,5	1004	935	628
2 x 14AWG	41 x 30	0,045	1,14	12,6	0,496	181	122
3 x 14AWG	41 x 30	0,045	1,14	13,3	0,524	226	152
4 x 14AWG	41 x 30	0,045	1,14	14,5	0,571	286	192
5 x 14AWG	41 x 30	0,045	1,14	16,7	0,657	376	252
6 x 14AWG	41 x 30	0,045	1,14	17,9	0,705	446	300
7 x 14AWG	41 x 30	0,045	1,14	17,9	0,705	466	313
8 x 14AWG	41 x 30	0,045	1,14	19,9	0,783	517	347
9 x 14AWG	41 x 30	0,045	1,14	21,9	0,862	591	397
10 x 14AWG	41 x 30	0,045	1,14	22,2	0,874	621	417
12 x 14AWG	41 x 30	0,045	1,14	22,9	0,902	704	473
14 x 14AWG	41 x 30	0,045	1,14	24	0,945	793	524
16 x 14AWG	41 x 30	0,045	1,14	25,9	1,02	934	628
20 x 14AWG	41 x 30	0,045	1,14	28,6	1126	1121	753
24 x 14AWG	41 x 30	0,045	1,14	31,4	1236	1300	874
30 x 14AWG	41 x 30	0,045	1,14	33,2	1307	1548	1040
2 x 12AWG	65 x 30	0,045	1,14	14,5	0,571	251	169
3 x 12AWG	65 x 30	0,045	1,14	15,3	0,602	311	209
4 x 12AWG	65 x 30	0,045	1,14	16,5	0,65	391	263
5 x 12AWG	65 x 30	0,045	1,14	17,9	0,705	459	308
6 x 12AWG	65 x 30	0,045	1,14	19,3	0,76	527	354
7 x 12AWG	65 x 30	0,045	1,14	19,3	0,76	577	388
8 x 12AWG	65 x 30	0,045	1,14	21,4	0,843	639	429
9 x 12AWG	65 x 30	0,045	1,14	23,7	0,933	733	493
10 x 12AWG	65 x 30	0,045	1,14	24,6	0,969	809	543
12 x 12AWG	65 x 30	0,045	1,14	25,4	1	921	619
14 x 12AWG	65 x 30	0,045	1,14	26,6	1047	1038	698
16 x 12AWG	65 x 30	0,045	1,14	28	1102	1173	788
18 x 12AWG	65 x 30	0,045	1,14	29,4	1157	1293	869
20 x 12AWG	65 x 30	0,045	1,14	31,8	1252	1479	994
24 x 12AWG	65 x 30	0,045	1,14	34,9	1374	1715	1152
26 x 12AWG	65 x 30	0,045	1,14	34,9	1374	1816	1220
30 x 12AWG	65 x 30	0,045	1,14	36,9	1453	2050	1378
2 x 10AWG	104 x 30	0,045	1,14	15,8	0,622	311	209
3 x 10AWG	104 x 30	0,045	1,14	16,7	0,657	394	265
4 x 10AWG	104 x 30	0,045	1,14	18,1	0,713	483	325
5 x 10AWG	104 x 30	0,045	1,14	19,6	0,772	592	398
6 x 10AWG	104 x 30	0,045	1,14	21,2	0,835	684	460
7 x 10AWG	104 x 30	0,045	1,14	21,2	0,835	756	508
10 x10AWG	104 x 30	0,045	1,14	27,2	1071	1062	714
12 x 10AWG	104 x 30	0,045	1,14	28,1	1106	1220	820
16 x 10AWG	104 x 30	0,045	1,14	31,2	1228	1584	1065
20 x 10AWG	104 x 30	0,045	1,14	35,2	1386	1971	1325
2 x 8AWG	133 x 29	0,06	1,52	20,6	0,811	540	363
3 x 8AWG	133 x 29	0,06	1,52	21,8	0,858	660	444
4 x 8AWG	133 x 29	0,06	1,52	24,6	0,968	860	578
5 x 8AWG	133 x 29	0,06	1,52	26,8	1055	1080	726
2 x 6AWG	133 x 27	0,06	1,52	23,8	0,937	770	518
3 x 6WG	133 x 27	0,06	1,52	25,2	0,992	960	645
4 x 6AWG	133 x 27	0,06	1,52	28,3	1114	1250	840
5 x 6AWG	133 x 27	0,06	1,52	31	1,22	1570	1055
2 x 4AWG	133 x 25	0,06	1,52	27,5	1083	1060	712
3 x 4WG	133 x 25	0,06	1,52	29,1	1146	1330	894
4 x 4AWG	133 x 25	0,06	1,52	32,5	1,28	1730	1162
5 x 4AWG	133 x 25	0,06	1,52	35,5	1398	2175	1462
