H07Z1-K Type 2 Cu Sn Description
H07Z1-K(AS) Type 2 Cu Sn features tin-plated copper conductors and halogen-free thermoplastic insulation, providing corrosion resistance and UV protection to prevent galvanic corrosion at connections. This halogen-free cable meets the highest CPR ratings (B2cas1a, d1, a1) and UV protection requirements of EN 50618 solar standards.
This cable can be installed in surface-mount, buried conduit, or similar enclosed systems, and is particularly suitable for photovoltaic installations, public places (shopping malls, schools, hospitals, cinemas, etc.), and locations with significant fire risks or where minimizing smoke and corrosive gas emissions is necessary in the event of a fire or combustion.

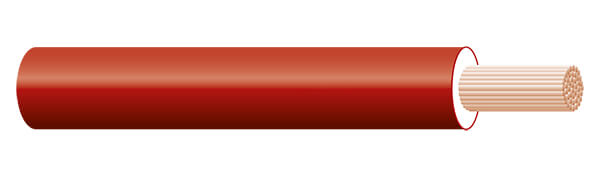

H07Z1-K Type 2 Cu Sn Construction
- Conductor
- Class 5 flexible tinned copper
- Insulation
- Halogen-free thermoplastic polyolefin compound (Type TI 7)
H07Z1-K Type 2 Cu Sn Characteristics
- Voltage Rating
- 450/750V
- Thermal performance
- Maximum conductor temperature: 70ºC
- Maximum short-circuit temperature: 160ºC (max. 5 s)
- Mechanical performance
- Minimum bending radius: x5 cable diameter
H07Z1-K Type 2 Cu Sn Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) | In conduit 2 cond (A) | In conduit 3 cond (A) | Voltage drop (V/A·km) |
|---|---|---|---|---|---|
| 1 x 4 | 4,1 | 45 | 32 | 28 | 12,2 |
| 1 x 6 | 4,7 | 65 | 41 | 36 | 8,11 |
| 1 x 10 | 6,0 | 105 | 57 | 50 | 4,66 |
| 1 x 16 | 7,0 | 160 | 76 | 68 | 2,97 |
| 1 x 25 | 8,8 | 250 | 101 | 89 | 1,90 |
| 1 x 35 | 9,9 | 335 | 125 | 110 | 1,35 |
| 1 x 50 | 11,7 | 480 | 151 | 134 | 0,940 |
| 1 x 70 | 13,2 | 660 | 192 | 171 | 0,662 |
| 1 x 95 | 15,6 | 870 | 232 | 207 | 0,502 |
| 1 x 120 | 17,0 | 1.1 | 269 | 239 | 0,392 |
| 1 x 150 | 18,9 | 1.38 | 300 | 262 | 0,315 |
| 1 x 185 | 21,5 | 1.68 | 341 | 296 | 0,258 |
| 1 x 240 | 24,5 | 2.205 | 400 | 346 | 0,195 |
