NA2X2Y Cable Description

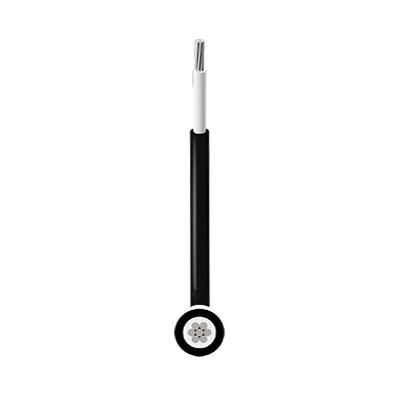

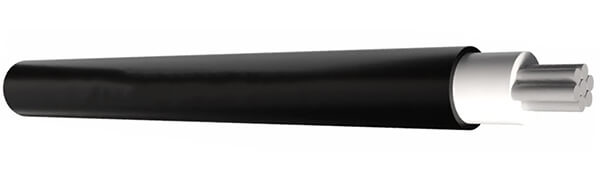

NA2X2Y cable features an aluminum conductor and cross-linked polyethylene (XLPE) insulation. The medium-density polyethylene (MDPE) outer sheath provides strong protection against mechanical stress, abrasion, moisture, and UV radiation.
NA2X2Y cables are suitable for external installation. They can be fixed in cable ducts, conduits, or fixed to walls. They are also suitable for burial in pipes.
NA2X2Y Cable Construction
| NA2X2Y Cable 0.6/1kV | NA2X2Y Cable 1.8/3kV | |
|---|---|---|
| Conductor | Class 2 Stranded Plain Aluminium Circular Compact Conductor 3 & 4 core: Sector Shaped for sizes ≥ 50 mm² | Class 2 Stranded Plain Aluminium Circular Compact Conductor |
| Insulation | XLPE (Cross linked Polyethylene) | |
| Sheath | MDPE (Medium Density Polyethylene) | MDPE (Low Density Polyethylene) |
| Sheath Colour | Black | |
NA2X2Y Cable Characteristics
| NA2X2Y Cable 0.6/1kV | NA2X2Y Cable 1.8/3kV | |
|---|---|---|
| Voltage Rating | AC: 0.6/1 (1.2)kV DC: 0.9/1.8kV | AC: 1.8/3 (3.6)kV DC: 2.7/5.4 kV |
| Temperature Range | Maximum Conductor Operating Temperature: +90ºC Maximum Conductor Temperature During S.C: +250°C |
|
| Minimum Bending Radius | Single core: 15 x Overall Diameter Multicore: 12 x Overall Diameter | 15 x Overall Diameter |
- NA2X2Y Cable 0.6/1kV
- NA2X2Y Cable 1.8/3kV
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 16 | 0.7 | 1.4 | 8.5 | 85 |
| 1 | 25 | 0.9 | 1.4 | 10 | 120 |
| 1 | 35 | 0.9 | 1.4 | 11.1 | 155 |
| 1 | 50 | 1 | 1.4 | 12.6 | 200 |
| 1 | 70 | 1.1 | 1.4 | 14.4 | 275 |
| 1 | 95 | 1.1 | 1.5 | 16.1 | 350 |
| 1 | 120 | 1.2 | 1.5 | 17.7 | 440 |
| 1 | 150 | 1.4 | 1.6 | 20.3 | 545 |
| 1 | 185 | 1.6 | 1.6 | 21.6 | 655 |
| 1 | 240 | 1.7 | 1.7 | 24.4 | 835 |
| 1 | 300 | 1.8 | 1.8 | 27.2 | 1040 |
| 1 | 400 | 2 | 1.9 | 30.3 | 1320 |
| 1 | 500 | 2.2 | 2 | 33.9 | 1660 |
| 1 | 630 | 2.4 | 2.2 | 38.6 | 2160 |
| 1 | 800 | 2.6 | 2.3 | 44 | 2800 |
| 1 | 1000 | 2.8 | 2.4 | 49.2 | 3445 |
| 2 | 70 | 1.1 | 1.8 | 27.5 | 760 |
| 2 | 95 | 1.1 | 2 | 30.9 | 975 |
| 2 | 120 | 1.2 | 2.1 | 34.1 | 1215 |
| 2 | 150 | 1.4 | 2.2 | 39.5 | 1555 |
| 2 | 185 | 1.6 | 2.3 | 42.3 | 1860 |
| 2 | 240 | 1.7 | 2.5 | 47.9 | 2380 |
| 2 | 300 | 1.8 | 2.7 | 53.5 | 2970 |
| 2 | 400 | 2 | 2.9 | 59.7 | 3760 |
| 3 | 70 | 1.1 | 1.9 | 25.9 | 855 |
| 3 | 95 | 1.1 | 2 | 29.2 | 1090 |
| 3 | 120 | 1.2 | 2.1 | 32.4 | 1375 |
| 3 | 150 | 1.4 | 2.3 | 35.5 | 1690 |
| 3 | 185 | 1.6 | 2.4 | 39.5 | 2085 |
| 3 | 240 | 1.7 | 2.6 | 44.6 | 2650 |
| 3 | 300 | 1.8 | 2.8 | 49.5 | 3255 |
| 3 | 400 | 2 | 3.1 | 56.7 | 4290 |
| 4 | 70 | 1.1 | 2 | 30.2 | 1090 |
| 4 | 95 | 1.1 | 2.1 | 32.7 | 1390 |
| 4 | 120 | 1.2 | 2.3 | 36.8 | 1775 |
| 4 | 150 | 1.4 | 2.4 | 41.3 | 2190 |
| 4 | 185 | 1.6 | 2.6 | 46.3 | 2725 |
| 4 | 240 | 1.7 | 2.8 | 52.1 | 3460 |
| 4 | 300 | 1.8 | 3 | 57.7 | 4275 |
| 4 | 400 | 2 | 3.3 | 66.1 | 5660 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 16 | 11.5 | 125 |
| 1 | 25 | 12.6 | 160 |
| 1 | 35 | 13.7 | 195 |
| 1 | 50 | 15 | 240 |
| 1 | 70 | 16.8 | 325 |
| 1 | 95 | 18.3 | 400 |
| 1 | 120 | 19.9 | 490 |
| 1 | 150 | 22.1 | 590 |
| 1 | 185 | 23.2 | 705 |
| 1 | 240 | 25.8 | 875 |
| 1 | 300 | 28.2 | 1065 |
| 1 | 400 | 30.9 | 1330 |
| 1 | 500 | 34.9 | 1680 |
| 1 | 630 | 39 | 2165 |
| 1 | 800 | 44.4 | 2800 |
| 1 | 1000 | 51.3 | 3535 |
