NA2XY Cable Description
NA2XY distribution cables feature aluminum conductors and are a lightweight alternative to copper conductor cables such as N2XY. They are typically manufactured to standards such as IEC 60502-1 and are widely used in 0.6/1 kV and 1.8/3 kV voltage levels. The jacket color is black.
NA2XY Cable Construction
- CONDUCTOR
- Class 1 solid Aluminium (sector-shaped multicore)
- INSULATION
- XLPE (Cross-Linked Polyethylene)
- BEDDING
- PVC (Polyvinyl Chloride)
- OUTER SHEATH
- PVC (Polyvinyl Chloride)
NA2XY Cable Characteristics
| NA2XY Aluminium Conductor XLPE PVC 0.6/1kV Cable | NA2XY 1.8/3kV Aluminium Cable | |
|---|---|---|
| Voltage Rating | 0.6/1 (1.2)kV | AC: 1.8/3 (3.6)kV DC. 2.7/5.4 kV |
| Temperature Rating | Maximum conductor operating temperature: 90°C Maximum conductor temperature during S.C: 250°C |
|
| Minimum Bending Radius | 12 x Overall Diameter | 15 x Overall Diameter |
NA2XY Cable Applications
These cables are commonly used in power distribution networks, industrial plants, underground installations, and other applications where a reliable and durable power cable is needed.

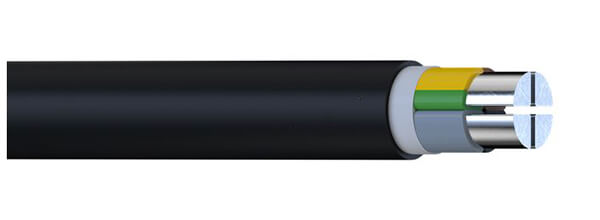

- NA2XY Aluminium Conductor XLPE PVC 0.6/1kV Cable

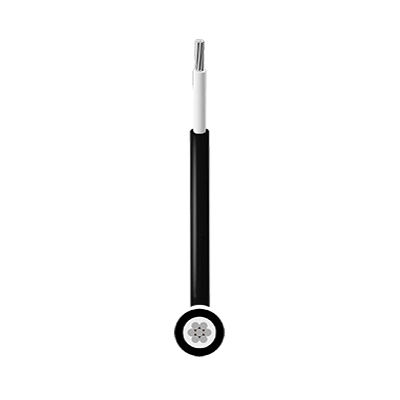

- NA2XY 1.8/3kV Aluminium Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 4 | 16 | 0.7 | 1.8 | 18.3 | 402 |
| 4 | 25 | 0.9 | 1.8 | 21.9 | 572 |
| 4 | 35 | 0.9 | 1.8 | 24.6 | 735 |
| 4 | 50 | 1 | 1.9 | 26.1 | 875 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 16 | 10.9 | 140 |
| 1 | 25 | 12 | 180 |
| 1 | 35 | 13.1 | 215 |
| 1 | 50 | 14.4 | 265 |
| 1 | 70 | 16.2 | 350 |
| 1 | 95 | 17.7 | 430 |
| 1 | 120 | 19.3 | 530 |
| 1 | 150 | 21.5 | 635 |
| 1 | 185 | 22.6 | 750 |
| 1 | 240 | 25.2 | 935 |
| 1 | 300 | 27.5 | 1125 |
| 1 | 400 | 30.4 | 1410 |
| 1 | 500 | 34.3 | 1775 |
| 1 | 630 | 38.4 | 2280 |
| 1 | 800 | 43.8 | 2945 |
| 1 | 1000 | 50.7 | 3710 |
