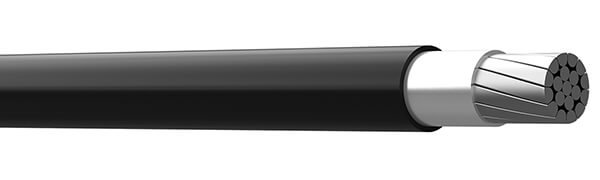

PV Al 1500V

PV Al 1500V Description

PV Al 1500V cable uses a Class 2 flexible aluminum conductor and cross-linked polyethylene (XLPE) insulation, offering resistance to UV radiation, ozone, and water (AD8 immersion). It can be directly buried or laid outdoors.

This cable is available in several variations: PV AWA/SWA Al 1500V features aluminum (AWA) or steel (SWA) wire armor for added mechanical protection. PV Al 1500V HEAVY DUTY utilizes a reinforced, thickened insulation layer for enhanced durability.

PV Al 1500V Construction

	PV Al 1500V	PV AWA/SWA Al 1500V	PV LSZH Al 1500V	PV Al 1500V HEAVY DUTY
Conductor	Class 2 Aluminium
Insulation	XLPE(Cross-linked polyethylene)
Armour	-	Single-core cables are armored with aluminum wire (AWA), while multi-core cables are armored with galvanized steel wire (SWA).	-	-
Outer sheath	PVC and UV resistant		Polyethylene LSZH and UV resistant

PV Al 1500V Characteristics

	PV Al 1500V	PV AWA/SWA Al 1500V	PV LSZH Al 1500V	PV Al 1500V HEAVY DUTY
Voltage Rating	1,5/1,5 (1,8) kV DC 1,8/3 (3,6) kV AC
Thermal performance	Maximum conductor temperature: 90ºC. Maximum short-circuittemperature: 250ºC (max. 5 s). Minimum service temperature: -40ºC (fixed and protected installations).
Mechanical performance	Minimum bending radius: x5 cable diameter	Minimum bending radius: x10 cable diameter	Minimum bending radius: x5 cable diameter

PV Al 1500V
PV AWA/SWA Al 1500V
PV LSZH Al 1500V
PV Al 1500V HEAVY DUTY

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R max. 20ºC (Ω/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 50	14,5	255	0,641	184	139	1,643
1 x 70	16,6	340	0,443	237	170	1,135
1 x 95	17,7	425	0,320	289	204	0,820
1 x 120	19,3	520	0,253	337	233	0,648
1 x 150	20,7	610	0,206	389	261	0,528
1 x 185	22,5	740	0,164	447	296	0,420
1 x 240	24,9	930	0,125	530	343	0,320
1 x 300	27,0	1.095	0,100	613	386	0,256
1 x 400	30,0	1.395	0,0778	740	444	0,199
1 x 500	34,3	1.755	0,0605	856	510	0,155
1 x 630	38,4	2.225	0,0469	996	588	0,120
2 x 240 *	50,2	3.51	0,125	470	343	0,320
3 x 95 + 1 x 50 *	39,9	2.09	0,320	257	204	0,820
3 x 150 + 1 x 95 *	46,6	3.04	0,206	346	261	0,528
3 x 185 *	47,2	3.13	0,164	397	296	0,420
3 x 240 *	52,9	3.99	0,125	470	343	0,320
3 x 240 + 1 x 120 *	56,7	4.43	0,125	470	343	0,320
3 x 300 *	57,2	4.695	0,100	543	386	0,256
3 x 300 + 1 x 150 *	61,7	5.26	0,100	543	386	0,256
3 x 400 *	63,7	5.95	0,0778	650	444	0,199
3 x 1 x 70	35,2	1.035	0,443	237	170	1,135
3 x 1 x 95	38,3	1.295	0,320	289	204	0,820
3 x 1 x 95 + 1 x 50	40,4	1.555	0,320	289	204	0,820
3 x 1 x 120	41,5	1.585	0,253	337	233	0,648
3 x 1 x 150	44,5	1.855	0,206	389	261	0,528
3 x 1 x 150 + 1 x 70	47,0	2.2	0,206	389	261	0,528
3 x 1 x 185	48,4	2.245	0,164	447	296	0,420
3 x 1 x 185 + 1 x 95	51,1	2.675	0,164	447	296	0,420
3 x 1 x 240	53,5	2.81	0,125	530	343	0,320
3 x 1 x 240 + 1 x 120	56,5	3.345	0,125	530	343	0,320
3 x 1 x 300	58,1	3.33	0,100	613	386	0,256
3 x 1 x 300 + 1 x 150	61,3	3.94	0,100	613	386	0,256
3 x 1 x 400	64,7	4.24	0,0778	740	444	0,199
3 x 1 x 400 + 1 x 240	68,3	5.185	0,0778	740	444	0,199
4 x 95 *	42,0	2.3	0,320	257	204	0,820
4 x 120 *	46,1	2.8	0,253	300	233	0,648
4 x 150 *	49,3	3.32	0,206	346	261	0,528
4 x 1 x 120	46,5	2.1	0,253	337	233	0,648
4 x 1 x 150	49,9	2.465	0,206	389	261	0,528
4 x 1 x 240	60,0	3.745	0,125	530	343	0,320
4 x 1 x 300	65,1	4.435	0,100	613	386	0,256
4 x 1 x 400	72,3	5.67	0,0778	740	444	0,199

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R max. 20°C (Ω/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 95	24,1	785	0,320	289	204	0,820
1 x 120	25,7	900	0,253	337	233	0,648
1 x 150	26,9	1.005	0,206	389	261	0,528
1 x 185	28,7	1.165	0,164	447	296	0,420
1 x 240	31,4	1.415	0,125	530	343	0,320
1 x 300	33,4	1.61	0,100	613	386	0,256
1 x 400	36,7	2	0,0778	740	445	0,199
1 x 500	41,1	2.44	0,0605	856	510	0,155
2 x 150 *	48,5	4.195	0,206	346	261	0,528
2 x 240 *	57,3	5.595	0,125	470	343	0,320
2 x 300 *	61,5	6.29	0,100	543	386	0,256
2 x 400 *	67,4	7.485	0,0778	650	445	0,199
3 x 95 *	44,7	3.82	0,320	257	204	0,820
3 x 120 *	48,6	4.44	0,253	300	233	0,648
3 x 150 *	51,3	4.94	0,206	346	261	0,528
3 x 185 *	55,0	5.57	0,164	397	296	0,420
3 x 240 *	60,8	6.685	0,125	470	343	0,320
3 x 300 *	65,5	7.665	0,100	543	386	0,256
3 x 400 *	71,9	9.13	0,0778	650	445	0,199
3 x 500 *	81,3	11.145	0,0605	750	510	0,155
4 x 185 *	60,5	6.6	0,164	397	296	0,420
4 x 240 *	66,9	7.96	0,125	470	343	0,320
4 x 300 *	72,1	9.12	0,100	543	386	0,256
4 x 400 *	79,8	11.105	0,0778	650	445	0,199

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R max. 20°C (Ω/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 95	18,1	410	0,320	289	204	0,820
1 x 120	19,9	525	0,253	337	233	0,648
1 x 150	21,1	590	0,206	389	261	0,528
1 x 185	23,4	745	0,164	447	296	0,420
1 x 240	25,6	910	0,125	530	343	0,320
1 x 300	27,8	1.085	0,100	613	386	0,256
1 x 400	30,9	1.365	0,0778	740	445	0,199
1 x 500	34,9	1.695	0,0605	856	505	0,155

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R max. 20°C (Ω/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 70	21,8	460	0,443	237	170	1,135
1 x 95	23,2	550	0,320	289	204	0,820
1 x 120	24,1	630	0,253	337	233	0,648
1 x 150	25,3	755	0,206	389	261	0,528
1 x 185	26,9	880	0,164	447	296	0,420
1 x 240	29,0	1.065	0,125	530	343	0,320
1 x 300	31,0	1.24	0,100	613	386	0,256
1 x 400	33,2	1.505	0,0778	740	445	0,199
4 x 1 x 150	61,3	2.945	0,206	389	261	0,528
4 x 1 x 240	69,9	4.145	0,125	530	343	0,320
4 x 1 x 300	74,7	4.84	0,100	613	386	0,256
