Aluminium Turbine Tower Cable Description
Aluminum turbine tower cables are a lightweight and cost-effective alternative to copper cables. Because aluminum is less expensive and lighter than copper, it is easier to install, helping to improve the overall cost-effectiveness of wind energy projects.
Aluminum turbine tower cables are low-voltage distribution cables rated at 0.6/1 kV, featuring a low-smoke, zero-halogen (LSZH) jacket and are suitable for interior installation.
HEPR/PO 1kV cables utilize rigid ethylene propylene rubber (HEPR) insulation, a rubber inner jacket, and a polyolefin outer jacket. In contrast, XLEVA 1kV cables retain EPR insulation but add a TCWB shield and a cross-linked ethylene vinyl acetate (XL-EVA) jacket. Both cable jacket materials offer excellent chemical resistance, thermal resistance, and mechanical properties.
Aluminium Turbine Tower Cable Construction
| Aluminium HEPR PO 1kV Turbine Power Cable | Aluminium EPR XLEVA LSZH 1kV Turbine Tower Cable | |
|---|---|---|
| Conductor | Class 2 stranded Aluminium | |
| Insulation | HEPR (Hard Ethylene Propylene Rubber) | EPR (Ethylene Propylene Rubber) |
| Inner Covering | Rubber compound | - |
| Screen | - | TWCB (Tinned wire copper braid) |
| Sheath | PO (Polyolefin) type HXM1 | XL-EVA (cross-linked Ethylene-Vinyl Acetate) |
Aluminium Turbine Tower Cable Characteristics
| Aluminium HEPR PO 1kV Turbine Power Cable | Aluminium EPR XLEVA LSZH 1kV Turbine Tower Cable | |
|---|---|---|
| Rated Voltage Uo/U | 0.6/1kV | |
| Temperature Rating | -40°C +90°C Short-circuit Temperature: 250°C | -40°C +90°C |
| Minimum Bending Radius | 4x Overall Diameter | 6x Overall Diameter |
| Maximum Tensile Load | - | 15N/mm² |

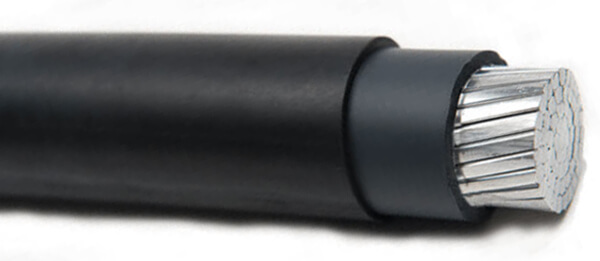

- Aluminium HEPR PO 1kV Turbine Power Cable

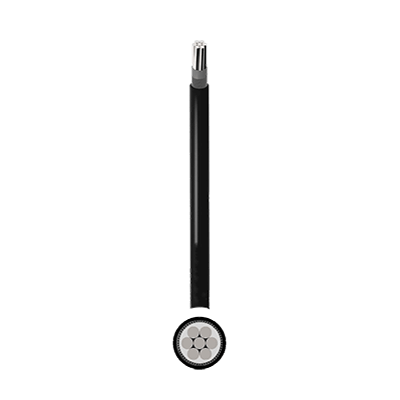

- Aluminium EPR XLEVA LSZH 1kV Turbine Tower Cable
| NO. OF CORES | NOMINAL CROSS SECTION AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|
| 1 | 50 | 13 | 266 |
| 1 | 70 | 15 | 352 |
| 1 | 95 | 16.5 | 450 |
| 1 | 120 | 18 | 556 |
| 1 | 150 | 20 | 686 |
| 1 | 185 | 22.5 | 842 |
| 1 | 240 | 26 | 1076 |
| 1 | 300 | 29 | 1299 |
| 1 | 400 | 32.5 | 1680 |
| 3 | 150 | 44 | 2756 |
| 4 | 150 | 49 | 3367 |
| NO. OF CORES | NOMINAL CROSS SECTION AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 150 | 22.5 | 640 |
| 1 | 185 | 25 | 770 |
| 1 | 240 | 27.8 | 980 |
| 1 | 300 | 30.5 | 1210 |
| 1 | 400 | 35.5 | 1550 |
