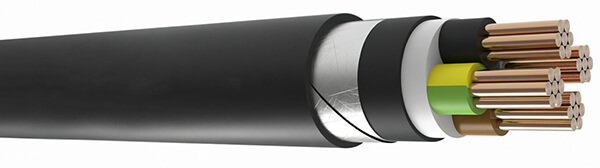

N2XB2Y Cable

N2XB2Y Cable Description

N2XB2Y cables can be directly buried underground and are also suitable for indoor installations, cable trenches, and concrete. They are widely used in power plants, substations, urban and industrial power networks, and other power facilities. They are suitable for locations requiring structural strength but not excessive tensile stress.

Compared to N2XBY, the HDPE sheath used in N2XB2Y offers superior abrasion resistance, impact resistance, moisture resistance, and chemical corrosion resistance. It is ideal when the cable needs to be directly buried in harsh, corrosive soils or very humid environments.

N2XB2Y Cable Construction

Conductor
Cu, class 1 or 2
Insulation
XLPE compound DIX 3
Bedding
Extruded elastomere or plastomere compound or plastic tape
Armour
two galvanized steel tapes
Sheath
HDPE compound DMP 2

N2XB2Y Cable Characteristics

Rated voltage
0,6/1 kV
Bending radius (min)
single-core: 15D
multicore: 12D
Max. conductor temperature
90°C
Max. short-circuit temperature
250°C

N2XB2Y Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR SHAPE	MAX. RESISTANCE AT 20°C (Ω/km)	CURRENT CAPACITY IN AIR (A)	CURRENT CAPACITY IN EARTH (A)	OUTER DIAM.(APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
2x4	RE/RM	4,61	42	52	14,2	76,8	326
2x6	RE/RM	3,08	53	64	15,2	115,2	390
2x10	RE/RM	1,83	74	86	17,2	192,0	521
2x16	RE/RM	1,15	98	112	19,0	307,2	706
2x25	RM	0,727	133	145	22,0	480,0	1001
2x35	RM	0,524	162	174	24,2	672,0	1275
2x50	RM	0,387	197	206	27,4	960,0	1729
2x70	RM	0,268	250	254	31,4	1344,0	2299
3x10	RE/RM	1830	74	86	18,0	288,0	637
3x16	RE/RM	1150	98	112	19,9	460,8	884
3x25	RE/RM	0,727	133	145	23,2	720,0	1275
3x35	SM	0,524	162	174	24,5	1008,0	1341
3x50	SM	0,387	197	206	28,3	1440,0	2044
3x70	SM	0,268	250	254	32,5	2016,0	2709
3x95	SM	0,193	308	305	35,7	2736,0	3493
3x120	SM	0,153	359	348	39,1	3456,0	4363
3x150	SM	0,124	412	392	43,2	4320,0	5336
3x185	SM	0,0991	475	444	47,1	5328,0	6470
3x240	SM	0,0754	564	517	52,5	6912,0	8185
4x10	RE/RM	1830	74	86	19,3	384,0	841
4x16	RE/RM	1150	98	112	21,5	614,4	1162
4x25	RE/RM	0,727	133	145	25,1	960,0	1671
4x35	SM	0,524	162	174	27,1	1344,0	1847
4x50	SM	0,387	197	206	31,2	1920,0	2741
4x70	SM	0,268	250	254	35,8	2688,0	3662
4x95	SM	0,193	308	305	39,6	3648,0	4821
4x120	SM	0,153	359	348	43,4	4608,0	5903
4x150	SM	0,124	412	392	48,8	5760,0	7290
4x185	SM	0,0991	475	444	53,2	7104,0	8815
4x240	SM	0,0754	564	517	59,3	9216,0	11194
5x10	RE/RM	1830	74	86	20,7	480	885,6
5x16	RE/RM	1150	98	112	23,1	768	1258,4
5x25	RM	0,727	133	145	27,2	1200	1847,4
5x35	RM	0,524	162	174	30,2	1680	2429,2
5x50	RM	0,387	197	206	35,6	2400	3545,1
5x70	RM	0,268	250	254	40,7	3360	4781,6
5x95	RM	0,193	308	305	45,4	4560	6287,1
