J-Y(St)Yh Cable

J-Y(St)Yh Cable Description

J-Y(St)Yh cable features solid bare copper wire, PVC insulation and outer sheath, and a plastic-coated aluminum foil shielding layer, and is used in conjunction with a tinned copper grounding wire. It can be laid above, inside, or below drywall, and can also be laid within pipes and conduits. It is suitable for dry, damp, and water-immersed areas, as well as outdoor use, but direct sunlight must be avoided.

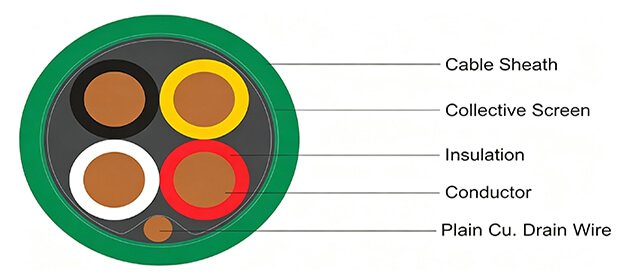

J-Y(St)Yh Cable Construction

Conductor
Solid bare copper wire
Insulation
PVC (Polyvinyl chloride)
Screen
Plastic-laminated aluminum foil with a tinned copper drain wire
Outer Sheath
PVC (Polyvinyl chloride)

J-Y(St)Yh Cable Characteristics

Voltage Rating
Max. 250V to 300V
Temperature range
fixed: -30°C to +70°C

J-Y(St)Yh Cable Specification

No. of Pairs x Nominal Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Approx. Copper Weight (kg/km)	Approx. Cable Weight (kg/km)
2 x 2 x 0.8 mm	6.5 +/- 0.5 mm	20	68
