JE-2Y(St)C2Y Cable

JE-2Y(St)C2Y Cable Description

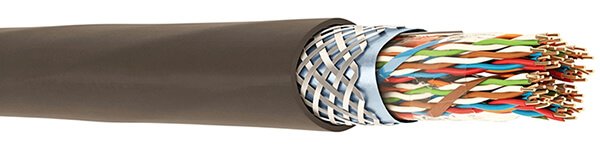

The JE-2Y(St)C2Y cable features solid copper conductors, polyethylene (PE) insulation and outer sheathing, an electrostatic shield (typically plastic-coated aluminum foil with a tinned copper drain wire), and an additional copper braid shield for enhanced electromagnetic interference (EMI) protection. It is suitable for fixed installations both indoors and outdoors, including in conduits or on building facades.

JE-2Y(St)C2Y Cable Construction

Conductor
Electrolytic solid bare copper
Insulation
Solid PE(Polyethylene)
Screen
Plastic-coated aluminum (Al/PET) foil, tinned copper
earthing wire, tinned copper braiding
Outer Sheath
UV-resistant PE(Polyethylene)

JE-2Y(St)C2Y Cable Characteristics

Temperature Range
-55°C ~ +70°C
Bending Radius
10 x D

JE-2Y(St)C2Y Cable Specification

Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.4	4.1	11.4	21
4	0.4	5.4	19	34
8	0.4	7.1	31.5	55
12	0.4	9.6	45.8	81
16	0.4	11	57.3	100
20	0.4	12	69.4	120
24	0.4	13	80.9	142
32	0.4	14	101.2	171
40	0.4	15	128	211
48	0.4	17	150.8	247
56	0.4	17	173.8	282
64	0.4	19	195.1	317
96	0.4	22	286.6	455
2	0.51	4.5	15.6	27
4	0.51	6	25.2	43
8	0.51	8	44.4	73
12	0.51	11	64.9	105
16	0.51	12	82.8	133
20	0.51	14	100.4	161
24	0.51	15	122.9	195
32	0.51	16	156.7	240
40	0.51	17	192.1	291
48	0.51	19	225.2	339
56	0.51	20	257.6	385
64	0.51	21	297.7	441
96	0.51	25	430.4	630
