JE-2Y(St)CH Cable Description
The JE-2Y(St)CH cable utilizes solid bare copper conductors, polyethylene insulation, a combination of aluminum foil and copper braid shielding, and a low-smoke, halogen-free (LSZH/HFFR) outer sheath. It is suitable for fixed indoor installations (in dry or damp rooms, or under plaster) but is not intended for high-current power distribution or direct underground burial. It is commonly used in public or industrial buildings where there are strict requirements for fire safety and electromagnetic shielding.

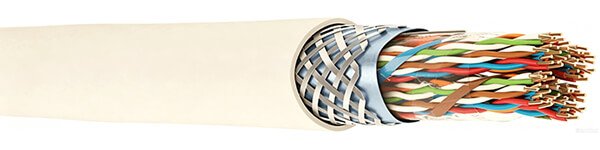

JE-2Y(St)CH Cable Construction
- Conductor
- Electrolytic solid copper
- Insulation
- PE(Polyethylene)
- Screen
- Tinned copper grounding wire, electrostatic shielding layer made of
plastic-laminated aluminum foil, and copper braided shielding layer. - Outer Sheath
- Low-Smoke, Halogen-Free (LSZH / HFFR)
JE-2Y(St)CH Cable Characteristics
- Temperature Range
- -40°C ~ +70°C
- Bending Radius
- 10 x D
JE-2Y(St)CH Cable
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.4 | 4.1 | 11.4 | 25 |
| 4 | 0.4 | 5.4 | 19 | 39 |
| 8 | 0.4 | 7.1 | 31.5 | 63 |
| 12 | 0.4 | 9.6 | 45.8 | 91 |
| 16 | 0.4 | 11 | 57.3 | 112 |
| 20 | 0.4 | 12 | 69.4 | 135 |
| 24 | 0.4 | 13 | 80.9 | 159 |
| 32 | 0.4 | 14 | 101.2 | 191 |
| 40 | 0.4 | 15 | 128 | 234 |
| 48 | 0.4 | 17 | 150.8 | 273 |
| 56 | 0.4 | 17 | 173.8 | 310 |
| 64 | 0.4 | 19 | 195.1 | 349 |
| 96 | 0.4 | 22 | 286.6 | 498 |
| 2 | 0.51 | 4.5 | 15.6 | 31 |
| 4 | 0.51 | 6 | 25.2 | 49 |
| 8 | 0.51 | 8 | 44.4 | 82 |
| 12 | 0.51 | 11 | 64.9 | 117 |
| 16 | 0.51 | 12 | 82.8 | 148 |
| 20 | 0.51 | 14 | 100.4 | 178 |
| 24 | 0.51 | 15 | 122.9 | 216 |
| 32 | 0.51 | 16 | 156.7 | 263 |
| 40 | 0.51 | 17 | 192.1 | 318 |
| 48 | 0.51 | 19 | 225.2 | 371 |
| 56 | 0.51 | 20 | 257.6 | 419 |
| 64 | 0.51 | 21 | 297.7 | 479 |
| 96 | 0.51 | 25 | 430.4 | 680 |
