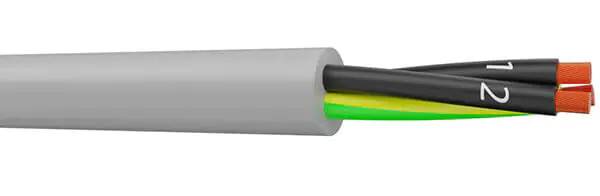

H05VV5-F Cable Description
The H05VV5-F is also known as NYSLYÖ-JZ, where -JZ indicates the core insulation is black with white numbers and the wires are green/yellow. The gray PVC jacket is oil-resistant and suitable for use in dry and damp indoor environments and under low to moderate mechanical stress.
This product is designed for use in industrial environments as a connection and control cable for machinery, machine tools, and production lines. It is not suitable for outdoor use.
H05VV5-F Cable Construction
- Conductor
- Class 5 Fine Stranded Bare Copper
- Insulation
- PVC (Polyvinyl Chloride)
- Outer Sheath
- PVC (Polyvinyl Chloride) – Oil resistant
H05VV5-F Cable Characteristics
- Voltage Rating (Uo/U)
- 300/500V
- Temperature Rating
- Fixed: -40ºC to +70ºC
- Installation: -5ºC to +70ºC
- Conductor Maximum Temperature
- +70ºC
- Minimum Bending Radius
- Fixed Installation: 4 x overall diameter
- Moved Application: 12.5 x overall diameter
H05VV5-F Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 0.75 | 7.2 | 61 |
| 3 | 1 | 7.4 | 71 |
| 3 | 1.5 | 8 | 92 |
| 3 | 2.5 | 9.7 | 146 |
| 4 | 0.75 | 7.8 | 75 |
| 4 | 1 | 8 | 89 |
| 4 | 1.5 | 9.2 | 125 |
| 4 | 2.5 | 11 | 196 |
| 5 | 0.75 | 9 | 100 |
| 5 | 1 | 9.2 | 116 |
| 5 | 1.5 | 10 | 155 |
| 5 | 2.5 | 12.1 | 235 |
| 7 | 0.75 | 10.5 | 141 |
| 7 | 1 | 10.8 | 166 |
| 7 | 1.5 | 12.2 | 227 |
| 7 | 2.5 | 14.2 | 343 |
| 12 | 0.75 | 13 | 214 |
| 12 | 1 | 13.4 | 251 |
| 12 | 1.5 | 14.6 | 330 |
| 12 | 2.5 | 17.7 | 535 |
| 18 | 0.75 | 15.1 | 306 |
| 18 | 1 | 16.2 | 385 |
| 18 | 1.5 | 17.7 | 506 |
| 18 | 2.5 | 21.3 | 800 |
| 25 | 0.75 | 18.6 | 427 |
| 25 | 1 | 19.8 | 534 |
| 25 | 1.5 | 21.6 | 700 |
| 25 | 2.5 | 25.9 | 1100 |
| 34 | 0.75 | 21.3 | 590 |
| 34 | 1 | 22 | 700 |
| 34 | 1.5 | 24.1 | 920 |
