VHOV-K & VOV-K

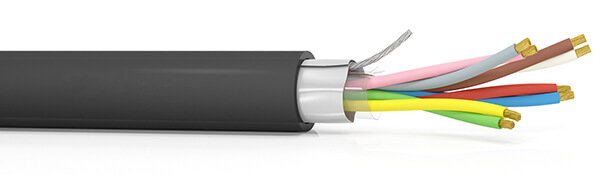

VHOV-K and VOV-K Cable Description

These products feature Category 5 flexible copper conductors, PVC insulation, inner and outer sheaths, and a copper wire shield. They are flame-retardant and exhibit good resistance to chemical corrosion and oils.

VOV-K uses only overall shielding and is suitable for general industrial signals present but not severe in automation applications. VHOV-K uses both individual paired shielding and overall shielding, making it suitable for industrial applications with very low signal strength, such as industrial control and sensor networks where high requirements are necessary.

VHOV-K and VOV-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Flexible PVC
Assembly of cores
Stranded conductors in pairs
Individual screen (VHOV-K)
Individual polyester (per pair) composed by aluminium / polyester
tape with 100% coverage + tinned copper drain wire
Assembly of pairs
Cabled in concentric layers
Collective Screen
Aluminium / polyester tape with 100% coverage + tinned copper drain wire
Outer sheath
Flexible PVC

VHOV-K and VOV-K Cable Characteristics

Voltage Rating
300/500 V
Thermal performance
Maximum conductor temperature: 70ºC
Maximum short-circuit temperature: 160ºC (max. 5 s)
Minimum service temperature: -30ºC
Minimum bending radius
5x cable diameter

VHOV-K and VOV-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R 20ºC (W/km)	Capacity between cond (µF/km)
VHOV-K
2 x 2 x 0,75	8,8	90	26,0	0,739
4 x 2 x 0,75	10,4	145	26,0	0,739
8 x 2 x 0,75	13,6	260	26,0	0,739
12 x 2 x 0,75	16,6	370	26,0	0,739
16 x 2 x 0,75	17,9	470	26,0	0,739
2 x 2 x 1	9,4	105	19,5	0,791
3 x 2 x 1	9,7	130	19,5	0,791
4 x 2 x 1	10,8	165	19,5	0,791
10 x 2 x 1	16,4	370	19,5	0,791
1 x 2 x 1,5	6,8	65	13,3	0,785
2 x 2 x 1,5	10,3	140	13,3	0,785
4 x 2 x 1,5	13,0	225	13,3	0,785
8 x 2 x 1,5	17,0	415	13,3	0,785
10 x 2 x 1,5	20,2	510	13,3	0,785
12 x 2 x 1,5	21,1	600	13,3	0,785
VOV-K
1 x 2 x 0,75	5,7	45	26,0	0,739
2 x 2 x 0,75	8,0	65	26,0	0,739
4 x 2 x 0,75	9,4	115	26,0	0,739
2 x 2 x 1	8,6	90	19,5	0,791
4 x 2 x 1	9,8	140	19,5	0,791
10 x 2 x 1	15,0	335	19,5	0,791
12 x 2 x 1	15,8	365	19,5	0,791
1 x 2 x 1,5	6,8	65	13,3	0,785
2 x 2 x 1,5	10,0	125	13,3	0,785
4 x 2 x 1,5	11,9	200	13,3	0,785
8 x 2 x 1,5	15,5	365	13,3	0,785
10 x 2 x 1,5	18,4	455	13,3	0,785
12 x 2 x 1,5	19,0	520	13,3	0,785
