HSL(St)CH Cable Description
These cables utilize annealed copper conductors, halogen-free flame-retardant insulation and outer sheathing, and a composite shield consisting of plastic-coated aluminum foil and tinned copper wire braiding. They are commonly used in industrial electronics, measurement, monitoring, and control systems, as well as in public areas with stringent fire safety requirements.

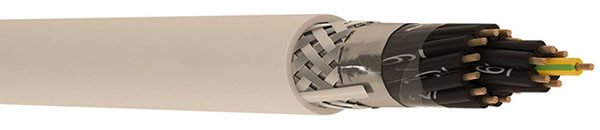

HSL(St)CH Cable Construction
- Conductor
- Class 5 stranded annealed copper
- Insulation
- LSZH (Low Smoke Zero Halogen)
- Screen
- Aluminum-polyester tape plus a tinned copper wire braid
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
HSL(St)CH Cable Characteristics
- Voltage Rating
- 300/500V
- Temperature Rating
- -30°C ~ +70°C
- Bending Radius
- 7.5xD mm
HSL(St)CH Cable Specification
| Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.5 | 5.4 | 16.9 | 40 |
| 3 | 0.5 | 5.7 | 21.8 | 49 |
| 4 | 0.5 | 6.1 | 27.2 | 58 |
| 5 | 0.5 | 6.6 | 32.5 | 70 |
| 6 | 0.5 | 7.2 | 38.2 | 83 |
| 7 | 0.5 | 7.2 | 42.6 | 86 |
| 8 | 0.5 | 7.9 | 48.3 | 99 |
| 9 | 0.5 | 9.2 | 57.9 | 121 |
| 10 | 0.5 | 9.2 | 62.3 | 124 |
| 12 | 0.5 | 9.5 | 72.4 | 141 |
| 14 | 0.5 | 9.9 | 81.6 | 157 |
| 16 | 0.5 | 10.5 | 92.3 | 178 |
| 18 | 0.5 | 11 | 101.8 | 197 |
| 20 | 0.5 | 11.6 | 112.5 | 221 |
| 24 | 0.5 | 12.9 | 132.9 | 252 |
| 25 | 0.5 | 12.9 | 137.3 | 266 |
| 27 | 0.5 | 13.1 | 141.2 | 269 |
| 2 | 0.75 | 5.8 | 22.1 | 48 |
| 3 | 0.75 | 6.1 | 29.4 | 59 |
| 4 | 0.75 | 6.6 | 36.9 | 71 |
| 5 | 0.75 | 7.3 | 44.8 | 86 |
| 6 | 0.75 | 7.9 | 52.8 | 100 |
| 7 | 0.75 | 7.9 | 59.4 | 110 |
| 8 | 0.75 | 8.6 | 69.9 | 125 |
| 9 | 0.75 | 10.1 | 80.8 | 149 |
| 10 | 0.75 | 10.1 | 87.4 | 158 |
| 12 | 0.75 | 10.4 | 101 | 179 |
| 14 | 0.75 | 10.9 | 114.9 | 200 |
| 16 | 0.75 | 11.5 | 130 | 228 |
| 18 | 0.75 | 12.1 | 144.4 | 257 |
| 20 | 0.75 | 12.8 | 159.2 | 283 |
| 24 | 0.75 | 14.2 | 188.4 | 324 |
| 25 | 0.75 | 14.2 | 195 | 342 |
| 27 | 0.75 | 14.5 | 204.3 | 353 |
| 2 | 1 | 6.2 | 26.3 | 55 |
| 3 | 1 | 6.6 | 35.2 | 68 |
| 4 | 1 | 7.2 | 44.8 | 85 |
| 5 | 1 | 7.9 | 54.4 | 104 |
| 6 | 1 | 8.6 | 66.6 | 126 |
| 7 | 1 | 8.6 | 74.9 | 132 |
| 8 | 1 | 9.3 | 85.4 | 151 |
| 9 | 1 | 10.9 | 96.7 | 179 |
| 10 | 1 | 10.9 | 105 | 186 |
| 12 | 1 | 11.3 | 123.3 | 214 |
| 14 | 1 | 11.8 | 140 | 240 |
| 16 | 1 | 12.6 | 159 | 274 |
| 18 | 1 | 13.2 | 176 | 304 |
| 20 | 1 | 14 | 194.8 | 341 |
| 24 | 1 | 15.6 | 231.5 | 394 |
| 25 | 1 | 15.6 | 239.7 | 416 |
| 27 | 1 | 15.9 | 250.5 | 424 |
| 2 | 1.5 | 6.9 | 37.1 | 70 |
| 3 | 1.5 | 7.3 | 50.1 | 89 |
| 4 | 1.5 | 8 | 64.1 | 111 |
| 5 | 1.5 | 8.8 | 81.5 | 138 |
| 6 | 1.5 | 9.6 | 96.8 | 166 |
| 7 | 1.5 | 9.6 | 109.7 | 176 |
| 8 | 1.5 | 10.4 | 124.7 | 201 |
| 9 | 1.5 | 12.3 | 140.3 | 240 |
| 10 | 1.5 | 12.3 | 153.2 | 249 |
| 12 | 1.5 | 12.7 | 180.1 | 285 |
| 14 | 1.5 | 13.4 | 207.5 | 326 |
| 16 | 1.5 | 14.1 | 235.5 | 369 |
| 18 | 1.5 | 14.9 | 262 | 413 |
| 20 | 1.5 | 15.8 | 290.8 | 464 |
| 24 | 1.5 | 17.6 | 350.8 | 541 |
| 25 | 1.5 | 17.6 | 363.7 | 571 |
| 27 | 1.5 | 18.1 | 386.5 | 597 |
| 2 | 2.5 | 8.2 | 56.3 | 100 |
| 3 | 2.5 | 8.8 | 82.3 | 133 |
| 4 | 2.5 | 9.6 | 105.4 | 167 |
| 5 | 2.5 | 10.6 | 129.2 | 208 |
| 6 | 2.5 | 11.6 | 153 | 249 |
| 7 | 2.5 | 11.6 | 174.4 | 265 |
| 8 | 2.5 | 12.6 | 198.5 | 304 |
| 9 | 2.5 | 14.9 | 225.5 | 362 |
| 10 | 2.5 | 14.9 | 246.9 | 378 |
| 12 | 2.5 | 15.4 | 290.4 | 435 |
| 14 | 2.5 | 16.2 | 337.6 | 500 |
| 16 | 2.5 | 17.3 | 384.6 | 576 |
| 18 | 2.5 | 18.4 | 429 | 649 |
| 20 | 2.5 | 19.6 | 473.6 | 730 |
| 24 | 2.5 | 22 | 573.7 | 862 |
| 25 | 2.5 | 22 | 595.1 | 910 |
| 27 | 2.5 | 22.2 | 630.5 | 930 |
| 2 | 4 | 9.4 | 88.1 | 139 |
| 3 | 4 | 9.9 | 124.2 | 183 |
| 4 | 4 | 10.9 | 159.7 | 231 |
| 5 | 4 | 12 | 197 | 289 |
| 2 | 6 | 11.2 | 125.6 | 195 |
| 3 | 6 | 11.9 | 178.8 | 260 |
| 4 | 6 | 13 | 233.1 | 332 |
| 5 | 6 | 14.5 | 289.2 | 420 |
| 2 | 10 | 13.4 | 207.1 | 295 |
| 3 | 10 | 14.2 | 297 | 400 |
| 4 | 10 | 15.8 | 389.6 | 517 |
| 5 | 10 | 17.5 | 487.1 | 658 |
| 2 | 16 | 17.6 | 322.6 | 477 |
| 3 | 16 | 19.2 | 464.8 | 668 |
| 4 | 16 | 21.2 | 618.8 | 869 |
| 5 | 16 | 23.7 | 769.4 | 1111 |
