Li2Y(St)CH Cable Description
Li2Y(St)CH cables feature flexible copper conductors, polyethylene (PE) insulation that ensures low capacitance for long-distance data transmission, a dual-layer shield consisting of an aluminum/polyester foil electrostatic screen and a tinned copper wire braid, and a halogen-free outer sheath that emits minimal smoke and no corrosive gases during a fire. Designed for fixed indoor installation, the cable is suitable for serial communication protocols such as RS-485 and RS-422.

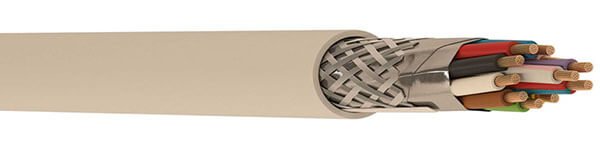

Li2Y(St)CH Cable Construction
- Conductor
- Flexible stranded tinned or bare copper, Class 5
- Insulation
- Polyethylene (PE)
- Screen
- Aluminum-coated polyester tape (Al-PES), tinned copper braiding
- Outer Sheath
- Halogen-free compound (LSZH / HFFR)
Li2Y(St)CH Cable Characteristics
- Voltage Rating
- 300/500 V
- Temperature Rating
- -30°C ~ +70°C
- Bending Radius
- 7.5 x D mm
Li2Y(St)CH Cable Specification
| Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.22 | 3.8 | 9.7 | 20 |
| 3 | 0.22 | 4 | 11.8 | 23 |
| 4 | 0.22 | 4.4 | 14 | 28 |
| 5 | 0.22 | 4.8 | 16.2 | 32 |
| 6 | 0.22 | 5.2 | 18.4 | 37 |
| 7 | 0.22 | 5.2 | 20.5 | 40 |
| 8 | 0.22 | 5.6 | 23.9 | 46 |
| 9 | 0.22 | 6 | 26.3 | 50 |
| 10 | 0.22 | 6.5 | 28.4 | 56 |
| 12 | 0.22 | 6.8 | 33.7 | 65 |
| 14 | 0.22 | 7.1 | 38.4 | 72 |
| 16 | 0.22 | 7.5 | 42.9 | 79 |
| 18 | 0.22 | 7.8 | 47.4 | 86 |
| 19 | 0.22 | 7.8 | 49.5 | 89 |
| 20 | 0.22 | 8.2 | 52.4 | 94 |
| 21 | 0.22 | 8.2 | 54.5 | 97 |
| 24 | 0.22 | 9.1 | 62.5 | 112 |
| 25 | 0.22 | 9.1 | 64.6 | 115 |
| 27 | 0.22 | 9.3 | 69.4 | 122 |
| 2 | 0.34 | 4.6 | 13.4 | 28 |
| 3 | 0.34 | 4.9 | 16.7 | 33 |
| 4 | 0.34 | 5.4 | 20 | 40 |
| 5 | 0.34 | 5.9 | 24.7 | 49 |
| 6 | 0.34 | 6.3 | 28 | 55 |
| 7 | 0.34 | 6.3 | 31.3 | 60 |
| 8 | 0.34 | 6.8 | 36 | 67 |
| 9 | 0.34 | 7.4 | 39.3 | 75 |
| 10 | 0.34 | 7.9 | 44 | 83 |
| 12 | 0.34 | 8.2 | 50.6 | 93 |
| 14 | 0.34 | 8.8 | 57.3 | 107 |
| 16 | 0.34 | 9.2 | 63.9 | 118 |
| 18 | 0.34 | 9.7 | 70.6 | 131 |
| 19 | 0.34 | 9.7 | 73.9 | 136 |
| 20 | 0.34 | 11 | 77.3 | 142 |
| 21 | 0.34 | 11 | 80.6 | 147 |
| 24 | 0.34 | 12 | 95.2 | 175 |
| 25 | 0.34 | 12 | 98.6 | 179 |
| 27 | 0.34 | 12 | 105.2 | 189 |
| 2 | 0.5 | 5 | 15.6 | 32 |
| 3 | 0.5 | 5.3 | 20.1 | 39 |
| 4 | 0.5 | 5.8 | 24.6 | 48 |
| 5 | 0.5 | 6.4 | 29.1 | 58 |
| 6 | 0.5 | 6.9 | 34.8 | 68 |
| 7 | 0.5 | 6.9 | 39.3 | 72 |
| 8 | 0.5 | 7.6 | 44 | 84 |
| 9 | 0.5 | 8.8 | 51 | 99 |
| 10 | 0.5 | 8.8 | 55.4 | 103 |
| 12 | 0.5 | 9.2 | 64.7 | 118 |
| 14 | 0.5 | 9.7 | 73.8 | 134 |
| 16 | 0.5 | 11 | 83.3 | 149 |
| 18 | 0.5 | 11 | 92.5 | 168 |
| 19 | 0.5 | 11 | 96.9 | 172 |
| 20 | 0.5 | 12 | 102.5 | 185 |
| 21 | 0.5 | 12 | 106.9 | 187 |
| 24 | 0.5 | 13 | 123.5 | 220 |
| 25 | 0.5 | 13 | 127.9 | 230 |
| 27 | 0.5 | 13 | 136.8 | 238 |
| 2 | 0.75 | 5.6 | 20.1 | 41 |
| 3 | 0.75 | 6 | 26.8 | 50 |
| 4 | 0.75 | 6.5 | 33.6 | 62 |
| 5 | 0.75 | 7.2 | 41.4 | 77 |
| 6 | 0.75 | 7.7 | 48.6 | 89 |
| 7 | 0.75 | 7.7 | 55.2 | 95 |
| 8 | 0.75 | 8.5 | 62.8 | 113 |
| 9 | 0.75 | 9.8 | 70.6 | 128 |
| 10 | 0.75 | 9.8 | 77.7 | 134 |
| 12 | 0.75 | 11 | 91.6 | 155 |
| 14 | 0.75 | 11 | 105.7 | 177 |
| 16 | 0.75 | 12 | 120.1 | 197 |
| 18 | 0.75 | 13 | 136.1 | 225 |
| 19 | 0.75 | 13 | 142.8 | 230 |
| 20 | 0.75 | 13 | 150.8 | 248 |
| 21 | 0.75 | 13 | 157.4 | 251 |
| 24 | 0.75 | 14 | 177.8 | 286 |
| 25 | 0.75 | 14 | 184.4 | 300 |
| 27 | 0.75 | 15 | 197.8 | 316 |
| 2 | 1 | 6 | 23.5 | 47 |
| 3 | 1 | 6.4 | 32 | 58 |
| 4 | 1 | 7 | 41.4 | 73 |
| 5 | 1 | 7.7 | 50 | 89 |
| 6 | 1 | 8.3 | 59.8 | 105 |
| 7 | 1 | 8.3 | 68.1 | 112 |
| 8 | 1 | 9.2 | 77.6 | 134 |
| 9 | 1 | 11 | 86.7 | 152 |
| 10 | 1 | 11 | 95 | 159 |
| 12 | 1 | 12 | 112.4 | 184 |
| 14 | 1 | 12 | 132.6 | 213 |
| 16 | 1 | 13 | 150.7 | 238 |
| 18 | 1 | 13 | 166.6 | 267 |
| 19 | 1 | 13 | 174.9 | 273 |
| 20 | 1 | 14 | 183.5 | 293 |
| 21 | 1 | 14 | 191.8 | 298 |
| 24 | 1 | 16 | 219.3 | 342 |
| 25 | 1 | 16 | 227.6 | 359 |
| 27 | 1 | 16 | 244.5 | 374 |
| 2 | 1.5 | 6.5 | 34.1 | 60 |
| 3 | 1.5 | 6.9 | 47 | 76 |
| 4 | 1.5 | 7.6 | 60.2 | 95 |
| 5 | 1.5 | 8.4 | 74.7 | 117 |
| 6 | 1.5 | 9 | 88.8 | 138 |
| 7 | 1.5 | 9 | 101.7 | 148 |
| 8 | 1.5 | 10 | 115.2 | 176 |
| 9 | 1.5 | 12 | 129.4 | 200 |
| 10 | 1.5 | 12 | 142.3 | 210 |
| 12 | 1.5 | 13 | 171.8 | 247 |
| 14 | 1.5 | 13 | 199.1 | 283 |
| 16 | 1.5 | 14 | 224.2 | 315 |
| 18 | 1.5 | 15 | 251.1 | 356 |
| 19 | 1.5 | 15 | 264.1 | 367 |
| 20 | 1.5 | 15 | 278.5 | 394 |
| 21 | 1.5 | 15 | 291.4 | 401 |
| 24 | 1.5 | 17 | 331.1 | 462 |
| 25 | 1.5 | 17 | 344.1 | 485 |
| 27 | 1.5 | 17 | 370.1 | 508 |
| 2 | 2.5 | 7.8 | 52.8 | 85 |
| 3 | 2.5 | 8.3 | 74.7 | 111 |
| 4 | 2.5 | 9.3 | 97.4 | 143 |
| 5 | 2.5 | 11 | 120.3 | 181 |
| 6 | 2.5 | 12 | 145.9 | 218 |
| 7 | 2.5 | 12 | 167.4 | 235 |
| 8 | 2.5 | 13 | 190.4 | 278 |
| 9 | 2.5 | 15 | 212.6 | 317 |
| 10 | 2.5 | 15 | 234.1 | 334 |
| 12 | 2.5 | 16 | 277.5 | 389 |
| 14 | 2.5 | 16 | 322.2 | 447 |
| 16 | 2.5 | 17 | 365.8 | 501 |
| 18 | 2.5 | 18 | 411.3 | 568 |
| 19 | 2.5 | 18 | 432.8 | 585 |
| 20 | 2.5 | 19 | 455.5 | 629 |
| 21 | 2.5 | 19 | 477.1 | 641 |
| 24 | 2.5 | 21 | 548.4 | 738 |
| 25 | 2.5 | 21 | 569.9 | 776 |
| 27 | 2.5 | 22 | 616.9 | 817 |
