LiY(St)CY Cable Description
Featuring flexible copper conductors, PVC insulation and outer sheathing, and a dual-shielding system—comprising an aluminum foil electrostatic shield and a tinned copper braid—the LiY(St)CY cable effectively blocks both high- and low-frequency external noise.
Suitable for dry or damp indoor environments, this cable is commonly used in industrial automation, intercom and voice systems, electronic control systems, and computer and office equipment.

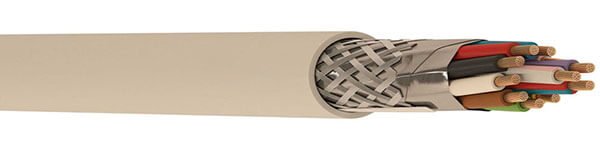

LiY(St)CY Cable Construction
- Conductor
- Class 5 stranded bare copper
- Insulation
- Polyvinyl chloride (PVC)
- Screen
- Aluminum-polyester (Al-PET) tape, tinned copper braiding
- Outer Sheath
- Polyvinyl chloride (PVC)
LiY(St)CY Cable Characteristics
- Voltage Rating
- Up to 250V or 300V
- Temperature Range
- -30°C ~ +70°C
LiY(St)CY Cable Specification
| Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.22 | 3.8 | 8.3 | 20 |
| 3 | 0.22 | 4 | 10.4 | 24 |
| 4 | 0.22 | 4.4 | 12.8 | 29 |
| 5 | 0.22 | 4.7 | 16.1 | 35 |
| 6 | 0.22 | 5.2 | 18.4 | 41 |
| 7 | 0.22 | 5.2 | 20.5 | 44 |
| 8 | 0.22 | 5.6 | 23 | 49 |
| 9 | 0.22 | 5.9 | 26.2 | 55 |
| 10 | 0.22 | 6.5 | 28.4 | 61 |
| 12 | 0.22 | 6.9 | 33.5 | 73 |
| 14 | 0.22 | 7.1 | 38.4 | 79 |
| 16 | 0.22 | 7.4 | 42.9 | 87 |
| 18 | 0.22 | 7.8 | 47.3 | 96 |
| 19 | 0.22 | 7.8 | 49.4 | 99 |
| 20 | 0.22 | 8.2 | 52.3 | 105 |
| 21 | 0.22 | 8.2 | 54.5 | 108 |
| 24 | 0.22 | 9.1 | 62.4 | 125 |
| 25 | 0.22 | 9.1 | 64.5 | 128 |
| 27 | 0.22 | 9.3 | 69.4 | 136 |
| 2 | 0.34 | 4.6 | 11.7 | 29 |
| 3 | 0.34 | 4.8 | 15.4 | 35 |
| 4 | 0.34 | 5.3 | 18.9 | 43 |
| 5 | 0.34 | 5.8 | 22.6 | 52 |
| 6 | 0.34 | 6.3 | 26.9 | 59 |
| 7 | 0.34 | 6.3 | 30.2 | 65 |
| 8 | 0.34 | 6.8 | 33.6 | 72 |
| 9 | 0.34 | 7.3 | 38.1 | 81 |
| 10 | 0.34 | 7.9 | 41.7 | 89 |
| 12 | 0.34 | 8.1 | 48.9 | 101 |
| 14 | 0.34 | 8.7 | 56.1 | 118 |
| 16 | 0.34 | 9.1 | 64.1 | 131 |
| 18 | 0.34 | 9.7 | 71 | 147 |
| 19 | 0.34 | 9.7 | 74.4 | 152 |
| 20 | 0.34 | 10.2 | 78 | 159 |
| 21 | 0.34 | 10.2 | 81.4 | 165 |
| 24 | 0.34 | 11.4 | 93 | 192 |
| 25 | 0.34 | 11.4 | 96.4 | 198 |
| 27 | 0.34 | 11.6 | 103.2 | 209 |
| 2 | 0.5 | 5 | 14.2 | 34 |
| 3 | 0.5 | 5.3 | 18.6 | 41 |
| 4 | 0.5 | 5.8 | 23.7 | 52 |
| 5 | 0.5 | 6.4 | 29.1 | 64 |
| 6 | 0.5 | 6.9 | 34.8 | 76 |
| 7 | 0.5 | 6.9 | 39.2 | 79 |
| 8 | 0.5 | 7.5 | 43.9 | 94 |
| 9 | 0.5 | 8.8 | 50.9 | 110 |
| 10 | 0.5 | 8.8 | 55.4 | 113 |
| 12 | 0.5 | 9.2 | 64.7 | 131 |
| 14 | 0.5 | 9.7 | 73.7 | 149 |
| 16 | 0.5 | 10.2 | 83.3 | 166 |
| 18 | 0.5 | 10.8 | 92.5 | 188 |
| 19 | 0.5 | 10.8 | 96.9 | 192 |
| 20 | 0.5 | 11.4 | 102.5 | 208 |
| 21 | 0.5 | 11.4 | 106.9 | 209 |
| 24 | 0.5 | 12.7 | 120.9 | 242 |
| 25 | 0.5 | 12.7 | 125.3 | 256 |
| 27 | 0.5 | 13 | 134.4 | 264 |
| 2 | 0.75 | 5.6 | 19.2 | 43 |
| 3 | 0.75 | 5.9 | 25.9 | 54 |
| 4 | 0.75 | 6.5 | 33.6 | 67 |
| 5 | 0.75 | 7.1 | 41.4 | 84 |
| 6 | 0.75 | 7.7 | 48.5 | 98 |
| 7 | 0.75 | 7.7 | 55.2 | 103 |
| 8 | 0.75 | 8.5 | 62.7 | 125 |
| 9 | 0.75 | 9.8 | 70.5 | 142 |
| 10 | 0.75 | 9.8 | 77.7 | 147 |
| 12 | 0.75 | 10.2 | 91.5 | 170 |
| 14 | 0.75 | 10.8 | 105.6 | 195 |
| 16 | 0.75 | 11.3 | 120.1 | 217 |
| 18 | 0.75 | 12 | 136.1 | 249 |
| 19 | 0.75 | 12 | 142.7 | 254 |
| 20 | 0.75 | 12.7 | 150.7 | 275 |
| 21 | 0.75 | 12.7 | 157.4 | 277 |
| 24 | 0.75 | 14 | 174.8 | 313 |
| 25 | 0.75 | 14 | 181.5 | 331 |
| 27 | 0.75 | 14.4 | 197.7 | 349 |
| 2 | 1 | 6 | 23.5 | 50 |
| 3 | 1 | 6.3 | 32 | 63 |
| 4 | 1 | 7 | 41.3 | 79 |
| 5 | 1 | 7.7 | 49.9 | 98 |
| 6 | 1 | 8.3 | 59.8 | 116 |
| 7 | 1 | 8.3 | 68.1 | 123 |
| 8 | 1 | 9.2 | 77.5 | 148 |
| 9 | 1 | 10.6 | 86.7 | 168 |
| 10 | 1 | 10.6 | 94.9 | 174 |
| 12 | 1 | 11 | 112.4 | 202 |
| 14 | 1 | 11.7 | 132.6 | 234 |
| 16 | 1 | 12.3 | 150.7 | 261 |
| 18 | 1 | 13 | 164.3 | 293 |
| 19 | 1 | 13 | 172.5 | 299 |
| 20 | 1 | 13.7 | 183.4 | 326 |
| 21 | 1 | 13.7 | 191.7 | 329 |
| 24 | 1 | 15.2 | 219.3 | 377 |
| 25 | 1 | 15.2 | 227.6 | 400 |
| 27 | 1 | 15.5 | 244.4 | 414 |
| 2 | 1.5 | 6.7 | 32.8 | 64 |
| 3 | 1.5 | 7.1 | 46.2 | 83 |
| 4 | 1.5 | 7.8 | 60.2 | 105 |
| 5 | 1.5 | 8.6 | 74.6 | 131 |
| 6 | 1.5 | 9.3 | 88.7 | 155 |
| 7 | 1.5 | 9.3 | 101.6 | 165 |
| 8 | 1.5 | 10.2 | 115.2 | 197 |
| 9 | 1.5 | 11.9 | 129.4 | 224 |
| 10 | 1.5 | 11.9 | 142.3 | 234 |
| 12 | 1.5 | 12.4 | 171.8 | 276 |
| 14 | 1.5 | 13.1 | 199 | 316 |
| 16 | 1.5 | 13.8 | 224.2 | 352 |
| 18 | 1.5 | 14.6 | 251.1 | 401 |
| 19 | 1.5 | 14.6 | 264 | 411 |
| 20 | 1.5 | 15.4 | 278.5 | 445 |
| 21 | 1.5 | 15.4 | 289.7 | 448 |
| 24 | 1.5 | 17.2 | 331.1 | 518 |
| 25 | 1.5 | 17.2 | 344 | 548 |
| 27 | 1.5 | 17.6 | 370.1 | 570 |
| 2 | 2.5 | 7.8 | 52.8 | 90 |
| 3 | 2.5 | 8.3 | 74.7 | 119 |
| 4 | 2.5 | 9.2 | 97.3 | 155 |
| 5 | 2.5 | 10.3 | 120.3 | 197 |
| 6 | 2.5 | 11.2 | 145.8 | 238 |
| 7 | 2.5 | 11.2 | 167.4 | 254 |
| 8 | 2.5 | 12.4 | 190.3 | 304 |
| 9 | 2.5 | 14.5 | 212.6 | 346 |
| 10 | 2.5 | 14.5 | 234.1 | 362 |
| 12 | 2.5 | 15.1 | 277.4 | 422 |
| 14 | 2.5 | 15.9 | 322.1 | 485 |
| 16 | 2.5 | 16.8 | 365.8 | 545 |
| 18 | 2.5 | 17.8 | 411.2 | 621 |
| 19 | 2.5 | 17.8 | 432.8 | 636 |
| 20 | 2.5 | 18.8 | 455.5 | 689 |
| 21 | 2.5 | 18.8 | 477 | 697 |
| 24 | 2.5 | 20.9 | 548.3 | 802 |
| 25 | 2.5 | 20.9 | 569.9 | 851 |
| 27 | 2.5 | 21.4 | 616.8 | 889 |
