LiH(St)H Cable Description

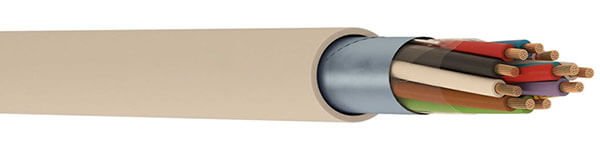

LiH(St)H cables feature flexible tinned copper conductors, halogen-free flame-retardant insulation and outer sheathing, and an electrostatic shield made of aluminum foil, accompanied by a tinned copper drain wire. They are suitable for dry and damp indoor environments but are not intended for outdoor installation or direct burial.
These cables are ideally suited for public buildings, offices, and indoor facilities where the protection of people and valuable equipment from fire hazards and smoke is essential.
LiH(St)H Cable Construction
- Conductor
- Flexible stranded tinned or bare copper, Class 5
- Insulation
- Halogen-free compound (LSZH / HFFR)
- Screen
- Aluminum-coated polyester tape (Al-PES) with a tinned copper drain wire
- Outer Sheath
- Halogen-free compound (LSZH / HFFR)
LiH(St)H Cable Characteristics
- Voltage Rating
- 300/500 V
- Temperature Rating
- -30°C ~ +70°C
- Bending Radius
- 7.5 x D mm
LiH(St)H Cable Specification
| Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.25 | 4.2 | 7 | 21 |
| 3 | 0.25 | 4.4 | 9.4 | 25 |
| 4 | 0.25 | 4.7 | 11.8 | 30 |
| 5 | 0.25 | 5.2 | 14.2 | 36 |
| 6 | 0.25 | 5.6 | 16.6 | 41 |
| 7 | 0.25 | 5.6 | 18.9 | 44 |
| 8 | 0.25 | 6.1 | 21.3 | 50 |
| 9 | 0.25 | 6.6 | 23.7 | 57 |
| 10 | 0.25 | 7.1 | 26.1 | 63 |
| 12 | 0.25 | 7.3 | 30.9 | 71 |
| 14 | 0.25 | 7.7 | 35.7 | 81 |
| 16 | 0.25 | 8.2 | 40.6 | 92 |
| 18 | 0.25 | 8.6 | 45.4 | 101 |
| 19 | 0.25 | 8.6 | 47.8 | 104 |
| 20 | 0.25 | 9.1 | 50.2 | 112 |
| 21 | 0.25 | 9.1 | 52.6 | 115 |
| 24 | 0.25 | 10.1 | 59.8 | 133 |
| 25 | 0.25 | 10.1 | 62.2 | 137 |
| 27 | 0.25 | 10.3 | 67 | 145 |
| 2 | 0.5 | 5.3 | 11 | 33 |
| 3 | 0.5 | 5.6 | 15.4 | 40 |
| 4 | 0.5 | 6 | 19.8 | 48 |
| 5 | 0.5 | 6.5 | 24.2 | 58 |
| 6 | 0.5 | 7.1 | 28.6 | 69 |
| 7 | 0.5 | 7.1 | 33 | 73 |
| 8 | 0.5 | 7.8 | 37.4 | 88 |
| 9 | 0.5 | 9 | 41.8 | 100 |
| 10 | 0.5 | 9 | 46.2 | 103 |
| 12 | 0.5 | 9.4 | 55 | 120 |
| 14 | 0.5 | 9.9 | 63.8 | 137 |
| 16 | 0.5 | 10.4 | 72.6 | 152 |
| 18 | 0.5 | 10.9 | 81.4 | 170 |
| 19 | 0.5 | 10.9 | 85.8 | 174 |
| 20 | 0.5 | 11.6 | 90.2 | 191 |
| 21 | 0.5 | 11.6 | 94.6 | 192 |
| 24 | 0.5 | 12.7 | 107.8 | 218 |
| 25 | 0.5 | 12.9 | 112.2 | 236 |
| 27 | 0.5 | 13.1 | 121 | 245 |
| 2 | 0.75 | 5.9 | 17.7 | 43 |
| 3 | 0.75 | 6.2 | 24.3 | 53 |
| 4 | 0.75 | 6.8 | 30.9 | 66 |
| 5 | 0.75 | 7.5 | 37.4 | 81 |
| 6 | 0.75 | 8 | 44 | 94 |
| 7 | 0.75 | 8 | 50.6 | 99 |
| 8 | 0.75 | 8.8 | 57.2 | 118 |
| 9 | 0.75 | 10.1 | 63.8 | 134 |
| 10 | 0.75 | 10.1 | 70.4 | 139 |
| 12 | 0.75 | 10.5 | 83.7 | 161 |
| 14 | 0.75 | 11.1 | 96.9 | 184 |
| 16 | 0.75 | 11.7 | 110.1 | 205 |
| 18 | 0.75 | 12.3 | 123.3 | 232 |
| 19 | 0.75 | 12.3 | 129.9 | 237 |
| 20 | 0.75 | 13 | 136.5 | 255 |
| 21 | 0.75 | 13 | 143.1 | 259 |
| 24 | 0.75 | 14.4 | 162.9 | 300 |
| 25 | 0.75 | 14.4 | 169.5 | 315 |
| 27 | 0.75 | 14.7 | 182.7 | 328 |
| 2 | 1 | 6.3 | 21 | 49 |
| 3 | 1 | 6.7 | 29.2 | 62 |
| 4 | 1 | 7.3 | 37.4 | 76 |
| 5 | 1 | 8 | 45.7 | 94 |
| 6 | 1 | 8.6 | 53.9 | 110 |
| 7 | 1 | 8.6 | 62.2 | 116 |
| 8 | 1 | 9.5 | 70.4 | 139 |
| 9 | 1 | 10.9 | 78.7 | 158 |
| 10 | 1 | 10.9 | 87 | 165 |
| 12 | 1 | 11.4 | 103.5 | 191 |
| 14 | 1 | 12 | 120 | 218 |
| 16 | 1 | 12.6 | 136.5 | 243 |
| 18 | 1 | 13.3 | 153 | 276 |
| 19 | 1 | 13.3 | 161.2 | 283 |
| 20 | 1 | 14 | 169.5 | 305 |
| 21 | 1 | 14 | 177.7 | 308 |
| 24 | 1 | 15.5 | 202.5 | 353 |
| 25 | 1 | 15.5 | 210.7 | 373 |
| 27 | 1 | 15.8 | 227.2 | 388 |
| 2 | 1.5 | 7 | 30.2 | 63 |
| 3 | 1.5 | 7.4 | 43 | 81 |
| 4 | 1.5 | 8.1 | 55.9 | 101 |
| 5 | 1.5 | 8.9 | 68.7 | 125 |
| 6 | 1.5 | 9.6 | 81.6 | 147 |
| 7 | 1.5 | 9.6 | 94.4 | 157 |
| 8 | 1.5 | 10.6 | 107.3 | 187 |
| 9 | 1.5 | 12.2 | 120.2 | 213 |
| 10 | 1.5 | 12.2 | 133 | 223 |
| 12 | 1.5 | 12.7 | 158.7 | 260 |
| 14 | 1.5 | 13.4 | 184.5 | 298 |
| 16 | 1.5 | 14.1 | 210.2 | 334 |
| 18 | 1.5 | 14.9 | 235.9 | 378 |
| 19 | 1.5 | 14.9 | 248.8 | 389 |
| 20 | 1.5 | 15.7 | 261.6 | 419 |
| 21 | 1.5 | 15.7 | 274.5 | 425 |
| 24 | 1.5 | 17.5 | 313 | 491 |
| 25 | 1.5 | 17.5 | 325.9 | 517 |
| 27 | 1.5 | 17.9 | 351.6 | 541 |
| 2 | 2.5 | 8.2 | 47.3 | 89 |
| 3 | 2.5 | 8.7 | 68.8 | 116 |
| 4 | 2.5 | 9.6 | 90.2 | 148 |
| 5 | 2.5 | 10.5 | 111.6 | 184 |
| 6 | 2.5 | 11.4 | 133 | 219 |
| 7 | 2.5 | 11.4 | 154.4 | 236 |
| 8 | 2.5 | 12.6 | 175.9 | 281 |
| 9 | 2.5 | 14.6 | 197.3 | 318 |
| 10 | 2.5 | 14.6 | 218.7 | 335 |
| 12 | 2.5 | 15.2 | 261.6 | 392 |
| 14 | 2.5 | 16.1 | 304.5 | 452 |
| 16 | 2.5 | 16.9 | 347.3 | 508 |
| 18 | 2.5 | 17.9 | 390.2 | 577 |
| 19 | 2.5 | 17.9 | 411.6 | 594 |
| 20 | 2.5 | 18.9 | 433.1 | 640 |
| 21 | 2.5 | 18.9 | 454.5 | 651 |
| 24 | 2.5 | 21.1 | 518.8 | 751 |
| 25 | 2.5 | 21.1 | 540.2 | 794 |
| 27 | 2.5 | 21.6 | 583.1 | 831 |
