YSLYQY Cable

YSLYQY Cable Description

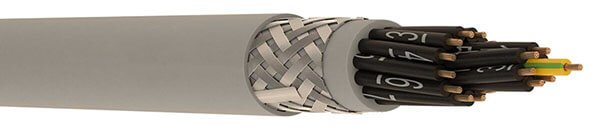

YSLYQY cables feature finely stranded bare copper conductors, PVC insulation, inner and outer sheaths (with the outer sheath typically transparent or grey), and a galvanized steel wire braid shield that effectively protects against mechanical damage and external physical stress.

These cables are suitable for use in dry and damp indoor areas; outdoor installation without protection is generally not recommended. They are commonly used for signal transmission, measurement, control, and regulation in machinery, assembly lines, and manufacturing plants.

YSLYQY Cable Construction

Conductor
Class 5 flexible stranded bare copper
Insulation
PVC (Polyvinyl Chloride)
Bedding
PVC (Polyvinyl Chloride)
Screen
Galvanized steel wire braiding
Outer Sheath
PVC (Polyvinyl Chloride)

YSLYQY Cable Characteristics

Voltage Rating Uo/U
300/500 V
Temperature Rating
Fixed: -40°C to +70°C
In motion: -5°C to +70°C
Bending Radius
7.5xD mm

YSLYQY Cable Specification

Number of cores and nominal cross section mm²	Copper figure kg/km	Cond. construction (appr. value) mm	Overall diameter appr. mm	Weight appr. kg / km
2 x 0,75	14,40	24 x 0,21	7,5	73
3 x 0,75	21,60	24 x 0,21	7,8	82
4 x 0,75	28,80	24 x 0,21	8,2	89
5 x 0,75	36,00	24 x 0,21	8,8	101
7 x 0,75	50,40	24 x 0,21	9,1	127
12 x 0,75	86,40	24 x 0,21	11,5	187
18 x 0,75	129,60	24 x 0,21	13,3	258
25 x 0,75	180,00	24 x 0,21	16,3	370
34 x 0,75	244,80	24 x 0,21	18,0	473
50 x 0,75	360,00	24 x 0,21	20,5	649
2 x 1	19,20	32 x 0,21	7,7	79
3 x 1	28,80	32 x 0,21	8,0	90
4 x 1	38,40	32 x 0,21	8,5	106
5 x 1	48,00	32 x 0,21	9,1	119
7 x 1	67,20	32 x 0,21	9,7	145
12 x 1	115,20	32 x 0,21	12,1	226
18 x 1	172,80	32 x 0,21	13,8	311
25 x 1	240,00	32 x 0,21	16,9	438
34 x 1	326,40	32 x 0,21	18,5	561
50 x 1	480,00	32 x 0,21	22,4	794
2 x 1,5	28,80	30 x 0,26	8,3	96
3 x 1,5	43,20	30 x 0,26	8,5	117
4 x 1,5	57,60	30 x 0,26	9,2	132
5 x 1,5	72,00	30 x 0,26	9,7	147
7 x 1,5	100,80	30 x 0,26	10,6	184
12 x 1,5	172,80	30 x 0,26	13,5	293
18 x 1,5	259,20	30 x 0,26	16,3	433
25 x 1,5	360,00	30 x 0,26	19,0	572
34 x 1,5	489,60	30 x 0,26	21,2	739
50 x 1,5	720,00	30 x 0,26	28,1	1227
3 x 2,5	72,00	50 x 0,26	9,7	155
4 x 2,5	96,00	50 x 0,26	10,7	191
5 x 2,5	120,00	50 x 0,26	11,5	224
7 x 2,5	168,00	50 x 0,26	12,6	285
12 x 2,5	288,00	50 x 0,26	16,6	460
18 x 2,5	432,00	50 x 0,26	19,3	654
25 x 2,5	600,00	50 x 0,26	23,2	891
4 x 4	153,60	56 x 0,31	12,3	271
5 x 4	192,00	56 x 0,31	13,8	330
7 x 4	268,80	56 x 0,31	15,4	442
4 x 6	230,40	84 x 0,31	14,5	379
5 x 6	288,00	84 x 0,31	16,4	474
7 x 6	403,20	84 x 0,31	17,7	615
4 x 10	384,00	80 x 0,41	18,0	608
7 x 10	672,00	80 x 0,41	21,6	920
4 x 16	614,40	128 x 0,41	21,8	945
5 x 16	768,00	128 x 0,41	23,4	1123
7 x 16	1,075,20	128 x 0,41	26,0	1494
4 x 25	960,00	200 x 0,41	25,1	1349
4 x 35	1,344,00	280 x 0,41	29,6	1839
5 x 35	1,680,00	280 x 0,41	32,0	2197
4 x 50	1,920,00	400 x 0,41	34,3	2605
4 x 70	2,688,00	356 x 0,51	38,5	3453
4 x 95	3,648,00	470 x 0,51	43,0	4544
