LiH(St)CH Cable Description
LIH(St)CH cables feature flexible copper conductors and low-smoke, zero-halogen (LSZH) insulation and outer sheathing. The electrostatic shield consists of an aluminum/polyester (Al-PES) foil and a tinned copper wire braid, protecting against external electromagnetic interference and signal distortion.
These cables are suitable for fixed installation in dry indoor environments and are commonly used in computer systems, office equipment, voice frequency transmission, and indoor communication or audio systems.

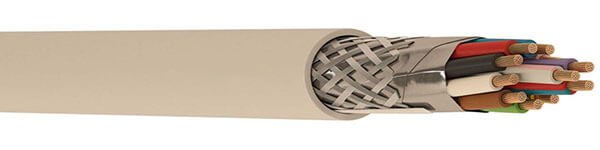

LiH(St)CH Cable Construction
- Conductor
- Flexible stranded tinned or bare copper, Class 5
- Insulation
- Halogen-free compound (LSZH / HFFR)
- Screen
- Aluminum-coated polyester tape (Al-PES), tinned copper braiding
- Outer Sheath
- Halogen-free compound (LSZH / HFFR)
LiH(St)CH Cable Characteristics
- Voltage Rating
- 300/500 V
- Temperature Rating
- -30°C ~ +70°C
- Bending Radius
- 7.5 x D mm
LiH(St)CH Cable Specification
| Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0.22 | 3.8 | 8.3 | 20 |
| 3 | 0.22 | 4.0 | 10.4 | 23 |
| 4 | 0.22 | 4.4 | 12.7 | 29 |
| 5 | 0.22 | 4.7 | 16.1 | 34 |
| 6 | 0.22 | 5.2 | 18.4 | 40 |
| 7 | 0.22 | 5.2 | 20.5 | 43 |
| 8 | 0.22 | 5.6 | 22.7 | 47 |
| 9 | 0.22 | 5.9 | 26.2 | 53 |
| 10 | 0.22 | 6.5 | 28.4 | 59 |
| 12 | 0.22 | 6.8 | 32.8 | 68 |
| 14 | 0.22 | 7.1 | 38.4 | 77 |
| 16 | 0.22 | 7.4 | 42.9 | 85 |
| 18 | 0.22 | 7.8 | 47.3 | 92 |
| 19 | 0.22 | 7.8 | 49.4 | 95 |
| 20 | 0.22 | 8.2 | 52.3 | 101 |
| 21 | 0.22 | 8.2 | 54.5 | 104 |
| 24 | 0.22 | 9.1 | 62.4 | 120 |
| 25 | 0.22 | 9.1 | 64.5 | 123 |
| 27 | 0.22 | 9.3 | 69.4 | 131 |
| 2 | 0.34 | 4.6 | 11.0 | 28 |
| 3 | 0.34 | 4.8 | 15.4 | 34 |
| 4 | 0.34 | 5.3 | 18.7 | 42 |
| 5 | 0.34 | 5.8 | 22.4 | 50 |
| 6 | 0.34 | 6.3 | 26.9 | 58 |
| 7 | 0.34 | 6.3 | 30.1 | 63 |
| 8 | 0.34 | 6.8 | 33.6 | 69 |
| 9 | 0.34 | 7.3 | 38.1 | 79 |
| 10 | 0.34 | 7.9 | 41.7 | 87 |
| 12 | 0.34 | 8.1 | 48.9 | 98 |
| 14 | 0.34 | 8.7 | 56.1 | 114 |
| 16 | 0.34 | 9.1 | 63.5 | 126 |
| 18 | 0.34 | 9.7 | 71.0 | 141 |
| 19 | 0.34 | 9.7 | 74.4 | 146 |
| 20 | 0.34 | 10.2 | 78.0 | 154 |
| 21 | 0.34 | 10.2 | 81.4 | 159 |
| 24 | 0.34 | 11.4 | 93.0 | 186 |
| 25 | 0.34 | 11.4 | 96.4 | 190 |
| 27 | 0.34 | 11.6 | 103.2 | 201 |
| 2 | 0.5 | 5.0 | 14.2 | 33 |
| 3 | 0.5 | 5.3 | 18.6 | 40 |
| 4 | 0.5 | 5.9 | 24.6 | 53 |
| 5 | 0.5 | 6.4 | 29.1 | 62 |
| 6 | 0.5 | 6.9 | 34.8 | 73 |
| 7 | 0.5 | 6.9 | 39.2 | 77 |
| 8 | 0.5 | 7.5 | 43.9 | 90 |
| 9 | 0.5 | 8.8 | 50.9 | 106 |
| 10 | 0.5 | 8.8 | 55.4 | 110 |
| 12 | 0.5 | 9.2 | 64.7 | 126 |
| 14 | 0.5 | 9.7 | 73.7 | 144 |
| 16 | 0.5 | 10.2 | 83.3 | 160 |
| 18 | 0.5 | 10.8 | 92.5 | 181 |
| 19 | 0.5 | 10.8 | 96.9 | 184 |
| 20 | 0.5 | 11.4 | 102.5 | 200 |
| 21 | 0.5 | 11.4 | 106.9 | 201 |
| 24 | 0.5 | 12.7 | 120.9 | 233 |
| 25 | 0.5 | 12.7 | 125.3 | 245 |
| 27 | 0.5 | 13.0 | 134.4 | 254 |
| 2 | 0.75 | 5.6 | 18.8 | 42 |
| 3 | 0.75 | 5.9 | 26.7 | 54 |
| 4 | 0.75 | 6.5 | 33.5 | 66 |
| 5 | 0.75 | 7.1 | 41.4 | 82 |
| 6 | 0.75 | 7.7 | 48.5 | 95 |
| 7 | 0.75 | 7.7 | 55.2 | 101 |
| 8 | 0.75 | 8.5 | 62.7 | 121 |
| 9 | 0.75 | 9.8 | 70.5 | 137 |
| 10 | 0.75 | 9.8 | 77.7 | 143 |
| 12 | 0.75 | 10.2 | 91.5 | 165 |
| 14 | 0.75 | 10.8 | 105.6 | 189 |
| 16 | 0.75 | 11.3 | 120.1 | 210 |
| 18 | 0.75 | 12.0 | 136.1 | 241 |
| 19 | 0.75 | 12.0 | 142.7 | 246 |
| 20 | 0.75 | 12.7 | 150.7 | 265 |
| 21 | 0.75 | 12.7 | 157.4 | 268 |
| 24 | 0.75 | 14.0 | 176.3 | 304 |
| 25 | 0.75 | 14.0 | 182.9 | 320 |
| 27 | 0.75 | 14.4 | 197.7 | 337 |
| 2 | 1.0 | 6.0 | 23.5 | 49 |
| 3 | 1.0 | 6.3 | 32.0 | 62 |
| 4 | 1.0 | 7.0 | 41.3 | 77 |
| 5 | 1.0 | 7.7 | 49.9 | 95 |
| 6 | 1.0 | 8.3 | 59.8 | 113 |
| 7 | 1.0 | 8.3 | 68.1 | 119 |
| 8 | 1.0 | 9.2 | 77.5 | 143 |
| 9 | 1.0 | 10.6 | 86.7 | 162 |
| 10 | 1.0 | 10.6 | 94.9 | 169 |
| 12 | 1.0 | 11.0 | 112.4 | 196 |
| 14 | 1.0 | 11.7 | 132.6 | 227 |
| 16 | 1.0 | 12.3 | 150.7 | 253 |
| 18 | 1.0 | 13.0 | 164.3 | 283 |
| 19 | 1.0 | 13.0 | 172.5 | 289 |
| 20 | 1.0 | 13.7 | 183.4 | 314 |
| 21 | 1.0 | 13.7 | 191.7 | 317 |
| 24 | 1.0 | 15.2 | 219.3 | 365 |
| 25 | 1.0 | 15.2 | 227.6 | 384 |
| 27 | 1.0 | 15.5 | 244.4 | 399 |
| 2 | 1.5 | 6.7 | 33.0 | 64 |
| 3 | 1.5 | 7.1 | 46.9 | 82 |
| 4 | 1.5 | 7.8 | 60.2 | 103 |
| 5 | 1.5 | 8.6 | 74.6 | 128 |
| 6 | 1.5 | 9.3 | 88.7 | 151 |
| 7 | 1.5 | 9.3 | 101.6 | 161 |
| 8 | 1.5 | 10.2 | 115.2 | 191 |
| 9 | 1.5 | 11.9 | 129.4 | 218 |
| 10 | 1.5 | 11.9 | 142.3 | 228 |
| 12 | 1.5 | 12.4 | 171.8 | 268 |
| 14 | 1.5 | 13.1 | 199.0 | 308 |
| 16 | 1.5 | 13.8 | 224.2 | 343 |
| 18 | 1.5 | 14.6 | 251.1 | 388 |
| 19 | 1.5 | 14.6 | 264.0 | 399 |
| 20 | 1.5 | 15.4 | 276.8 | 429 |
| 21 | 1.5 | 15.4 | 289.7 | 435 |
| 24 | 1.5 | 17.2 | 331.1 | 503 |
| 25 | 1.5 | 17.2 | 344.0 | 529 |
| 27 | 1.5 | 17.6 | 370.1 | 553 |
| 2 | 2.5 | 7.8 | 52.8 | 89 |
| 3 | 2.5 | 8.3 | 74.7 | 117 |
| 4 | 2.5 | 9.2 | 97.3 | 151 |
| 5 | 2.5 | 10.3 | 120.3 | 192 |
| 6 | 2.5 | 11.2 | 145.8 | 231 |
| 7 | 2.5 | 11.2 | 167.4 | 247 |
| 8 | 2.5 | 12.4 | 190.3 | 294 |
| 9 | 2.5 | 14.5 | 212.6 | 336 |
| 10 | 2.5 | 14.5 | 234.1 | 352 |
| 12 | 2.5 | 15.1 | 277.4 | 410 |
| 14 | 2.5 | 15.9 | 322.1 | 472 |
| 16 | 2.5 | 16.8 | 365.8 | 529 |
| 18 | 2.5 | 17.8 | 408.3 | 599 |
| 19 | 2.5 | 17.8 | 432.8 | 618 |
| 20 | 2.5 | 18.8 | 455.5 | 666 |
| 21 | 2.5 | 18.8 | 477.0 | 677 |
| 24 | 2.5 | 20.9 | 548.3 | 779 |
| 25 | 2.5 | 20.9 | 569.9 | 822 |
| 27 | 2.5 | 21.4 | 616.8 | 862 |
