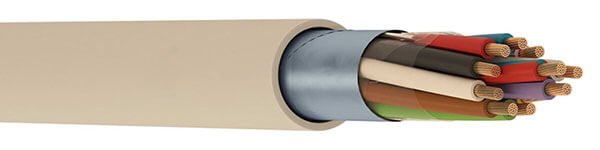

Li2Y(St)H Cable Description
Li2Y(St)H cables feature stranded bare copper conductors, polyethylene (PE) insulation, a halogen-free low-smoke outer sheath, and an electrostatic shield made of aluminum foil, accompanied by a tinned copper drain wire. They are commonly used in indoor environments with strict fire safety requirements, as well as for data processing, measurement, and control equipment that requires protection against external electrical noise interference.
Li2Y(St)H Cable Construction
- Conductor
- Class 5 stranded bare copper
- Insulation
- Polyethylene (PE)
- Screen
- Plastic-coated aluminum foil shield with a copper drain wire
- Outer Sheath
- Halogen-free, low-smoke (LSZH / HFFR)
Li2Y(St)H Cable Characteristics
- Voltage Rating
- Up to 250V or 300V
- Temperature Range
- -30°C ~ +70°C
- Bending Radius
- 7.5 x D mm
Li2Y(St)H Cable Technical Data
| Cross Section (mm²) | Conductor Resistance (20 °C) Ω/km | Insulation Resistance (20 °C) MΩ/km | Mutual Capacitance nF/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|---|
| 0.22 | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 | 7.98 | 5000 | 150 | 300/500 | 2000 |
