Li2Y(St)Y Cable

Li2Y(St)Y Cable Description

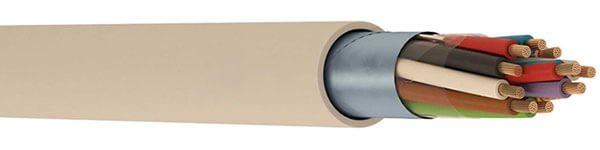

Li2Y(St)Y cables feature flexible stranded copper conductors, polyethylene (PE) core insulation, a PVC outer sheath, and an electrostatic shield made of plastic-laminated aluminum foil, accompanied by a tinned copper drain wire.

The metal foil shield protects internal signals from external electromagnetic interference (EMI). Designed for dry or damp indoor environments, the cable is not suitable for outdoor use or direct burial unless a specialized protective outer layer is applied.

Li2Y(St)Y Cable Construction

Conductor
Class 5 stranded bare copper
Insulation
Polyethylene (PE)
Screen
Plastic-coated aluminum foil shield with a copper drain wire
Outer Sheath
Polyvinyl chloride (PVC)

Li2Y(St)Y Cable Characteristics

Voltage Rating
Up to 250V or 300V
Temperature Range
-30°C ~ +70°C

Li2Y(St)Y Cable Specification

Conductor Count	Conductor Cross-section (mm²)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.22	4	6.5	19
3	0.22	4.2	8.6	22
4	0.22	4.5	10.8	26
5	0.22	5	12.9	31
6	0.22	5.3	15	35
7	0.22	5.3	17.1	38
8	0.22	5.8	19.3	43
9	0.22	6.3	21.4	49
10	0.22	6.7	23.5	54
12	0.22	6.9	27.8	60
14	0.22	7.3	32.1	69
16	0.22	7.8	36.3	78
18	0.22	8.1	40.6	85
19	0.22	8.1	42.7	88
20	0.22	8.6	44.9	95
21	0.22	8.6	47	98
24	0.22	9.5	53.4	112
25	0.22	9.5	55.5	115
27	0.22	9.7	59.8	122
2	0.25	4.2	7	20
3	0.25	4.4	9.4	24
4	0.25	4.8	11.8	28
5	0.25	5.3	14.2	34
6	0.25	5.6	16.6	39
7	0.25	5.3	19	39
8	0.25	6.1	21.4	48
9	0.25	6.6	23.8	54
10	0.25	7.1	26.2	60
12	0.25	7.3	31	67
14	0.25	7.8	35.8	77
16	0.25	8.3	40.6	87
18	0.25	8.6	45.4	95
19	0.25	8.6	47.8	98
20	0.25	9.1	50.2	106
21	0.25	9.1	52.6	108
24	0.25	11	59.8	125
25	0.25	11	62.2	129
27	0.25	11	67	136
2	0.34	4.8	8.9	26
3	0.34	5.1	12.2	31
4	0.34	5.5	15.6	37
5	0.34	6	18.9	45
6	0.34	6.4	22.2	51
7	0.34	6.4	25.6	55
8	0.34	7	28.9	63
9	0.34	8	32.2	72
10	0.34	8.1	35.5	79
12	0.34	8.4	42.2	89
14	0.34	8.9	48.9	101
16	0.34	9.3	55.5	112
18	0.34	9.8	62.2	126
19	0.34	9.8	65.5	130
20	0.34	11	68.9	140
21	0.34	11	72.2	144
24	0.34	12	82.2	169
25	0.34	12	85.5	173
27	0.34	12	92.2	183
2	0.5	5.3	11	31
3	0.5	5.6	15.4	38
4	0.5	6	19.8	46
5	0.5	6.5	24.2	55
6	0.5	7.1	28.6	65
7	0.5	7.1	33	69
8	0.5	7.9	37.4	83
9	0.5	8.9	41.8	94
10	0.5	9	46.2	98
12	0.5	9.4	55	113
14	0.5	9.9	63.8	130
16	0.5	11	72.6	144
18	0.5	11	81.4	161
19	0.5	11	85.8	164
20	0.5	12	90.2	180
21	0.5	12	94.6	182
24	0.5	13	107.8	205
25	0.5	13	112.2	222
27	0.5	14	121	231
2	0.75	6	17.7	42
3	0.75	6.3	24.3	51
4	0.75	6.9	30.9	63
5	0.75	7.5	37.5	77
6	0.75	8.1	44.1	89
7	0.75	8.1	50.7	95
8	0.75	8.9	57.3	113
9	0.75	11	63.9	128
10	0.75	11	70.5	133
12	0.75	11	83.7	154
14	0.75	12	96.9	175
16	0.75	12	110.1	195
18	0.75	13	123.3	220
19	0.75	13	129.9	226
20	0.75	13	136.5	242
21	0.75	13	143.1	246
24	0.75	15	162.9	285
25	0.75	15	169.5	299
27	0.75	15	182.7	311
2	1	6.4	21	47
3	1	6.7	29.3	59
4	1	7.3	37.5	73
5	1	8	45.7	90
6	1	8.7	54	104
7	1	8.7	62.2	111
8	1	9.5	70.5	132
9	1	11	78.7	150
10	1	11	87	157
12	1	12	103.5	182
14	1	12	120	208
16	1	13	136.5	232
18	1	14	153	262
19	1	14	161.3	269
20	1	15	169.5	289
21	1	15	177.8	293
24	1	16	202.5	336
25	1	16	210.8	353
27	1	16	227.3	368
2	1.5	6.9	30.2	60
3	1.5	7.2	43.1	76
4	1.5	7.9	55.9	95
5	1.5	8.7	68.8	117
6	1.5	9.4	81.6	137
7	1.5	9.4	94.5	147
8	1.5	11	107.3	174
9	1.5	12	120.2	198
10	1.5	12	133.1	208
12	1.5	13	158.8	242
14	1.5	13	184.5	278
16	1.5	14	210.2	311
18	1.5	15	235.9	352
19	1.5	15	248.8	362
20	1.5	16	261.7	388
21	1.5	16	274.5	396
24	1.5	17	313.1	457
25	1.5	17	326	480
27	1.5	18	351.7	503
2	2.5	8.3	47.4	86
3	2.5	8.8	68.8	112
4	2.5	9.6	90.2	142
5	2.5	11	111.6	177
6	2.5	12	133.1	209
7	2.5	12	154.5	227
8	2.5	13	175.9	269
9	2.5	15	197.4	305
10	2.5	15	218.8	322
12	2.5	16	261.7	377
14	2.5	17	304.5	434
16	2.5	17	347.4	488
18	2.5	18	390.2	553
19	2.5	18	411.7	570
20	2.5	19	433.1	613
21	2.5	19	454.5	625
24	2.5	22	518.8	721
25	2.5	22	540.3	759
27	2.5	22	583.1	797
