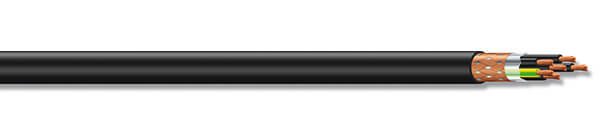

RC4V-K Cable

RC4V-K Cable Description

RC4V-K cable offers excellent electromagnetic interference shielding, making it suitable for instrumentation, control, signal transmission, and measurement applications in areas subject to significant electric or electromagnetic interference. It is commonly used in frequency converters (VFDs), robots, solenoid valves, control cabinets, and industrial automation. Its high flexibility makes it particularly suitable for complex wiring, and it can be used indoors or outdoors, mounted in conduits or trays.

RC4V-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
XLPE (Cross-linked Polyethylene)
Screen
Overlapping aluminium-polyester tape screen with 100% coverage + tinned copper drain wire.
Outer sheath
PVC (flexible)

RC4V-K Cable Characteristics

Voltage Rating
0,6/1 kV
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Mechanical performance
Minimum bending radius during installation: 5x cable diameter.

RC4V-K Cable Specifications

Section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 25	13,5	380	161	129	1,98
1 x 35	14,6	475	200	155	1,41
1 x 50	16,6	640	242	183	0,984
1 x 70	18,6	850	310	225	0,693
1 x 95	20,2	1.065	377	270	0,525
1 x 120	22,3	1.33	437	306	0,410
1 x 150	24,4	1.63	504	343	0,328
1 x 185	26,4	1.94	575	387	0,270
1 x 240	29,5	2.495	679	448	0,204
1 x 300	32,0	3.05	783	502	0,163
1 x 400	37,4	3.625	940	592	0,123
2 x 4	10,8	155	49	46	12,6
2 x 6	12,1	205	63	58	8,41
2 x 10	14,0	295	86	77	4,87
2 x 16	16,3	425	115	100	3,08
2 x 25	19,2	615	149	129	1,98
2 x 35	21,3	805	185	155	1,41
3 G 1,5	9,4	115	26	27	33,9
3 G 2,5	10,3	150	36	35	20,3
3 G 4	11,7	205	49	46	12,6
3 G 6	12,5	260	63	58	8,41
3 G 10	14,9	400	86	77	4,87
3 x 16	16,4	595	115	100	3,08
3 x 25	20,3	860	149	129	1,98
3 x 35	23,1	1.15	185	155	1,41
3 x 50	26,8	1.585	225	183	0,984
4 G 2,5	11,1	180	36	35	20,3
4 G 4	12,4	250	49	46	12,6
4 G 6	13,6	325	63	58	8,41
4 G 10	16,9	530	86	77	4,87
4 x 25	22,7	1.11	149	129	1,98
4 x 35	25,4	1.485	185	155	1,41
4 x 50	29,9	2.07	225	183	0,984
4 x 95	38,4	3.69	352	270	0,525
5 G 1,5	11,0	165	26	27	33,9
5 G 2,5	12,0	220	36	35	20,3
5 G 4	13,7	305	49	46	12,6
5 G 6	15,0	400	63	58	8,41
30 G 1,5	21,4	705	26	27	33,9
