Servo Motor Cable Description
Servo motor cables are typically designed for continuous flexing and static applications in harsh industrial environments to prevent electromagnetic interference (EMI), ensure signal integrity, and prevent failures.
ROZ1-K EMC Servo Cable is a flexible, halogen-free cable with increased fire resistance. It is UV-resistant, but is not recommended for direct burial. It is also resistant to hydrocarbons and is therefore suitable for applications in the petrochemical and oil and gas industries.
Servo Motor Cable Construction

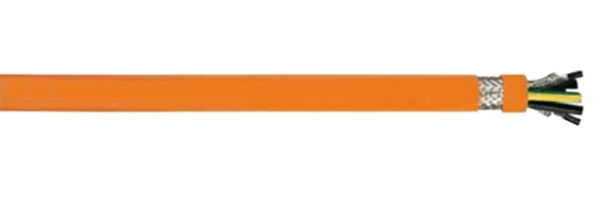

| Servo Cable CP | ROZ1-K EMC Servo Cable | |
|---|---|---|
| VOLTAGE | 0.6/1kV | |
| CONDUCTOR | Class 6 Extra Flexible Copper | Class 5 Flexible Stranded Copper |
| INSULATION | PP (Polypropylen) | XLPE (Cross-linked Polyethylene) |
| SEPARATOR | - | PET (Polyester Tape) |
| SCREEN 1 | - | Al/PET (Aluminium Polyester Tape) |
| SCREEN | TCWB (Tinned Copper Wire Braid) | |
| OUTER SHEATH | PUR (Polyurethane) | LSZH (Low Smoke Zero Halogen) |
Servo Motor Cable Characteristics
| Servo Cable CP | ROZ1-K EMC Servo Cable | |
|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | |
| Temperature Rating | Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC | Operating temperature (fixed): -40°C to +90°C Operating temperature (flexible): -5°C to +90°C Maximum continuous operating temperature of conductor: 90°C Maximum conductor temperature during short circuit: 250°C |
| Minimum Bending Radius | Fixed: 5 x overall diameter Flexed: 7.5 x overall diameter | 10 x overall diameter |
Servo Motor Cable Applications
They are widely used in robotics, automation, CNC machines, industrial machinery, and other applications where precise motor control is crucial.
- Servo Cable CP
- Servo Cable CP Earth Conductor

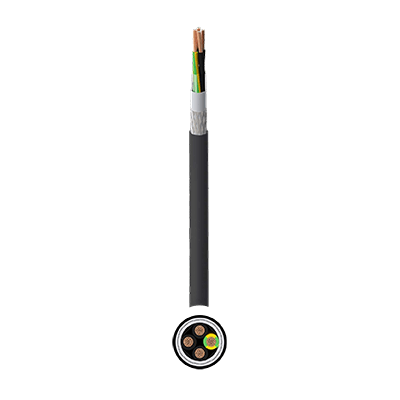

- ROZ1-K EMC Servo Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 4 | 1.5 | 9 | 159 |
| 4 | 2.5 | 10.6 | 235 |
| 4 | 4 | 11.9 | 323 |
| 4 | 6 | 14.7 | 464 |
| 4 | 10 | 17.5 | 672 |
| 4 | 16 | 21.6 | 1089 |
| 4 | 25 | 25.4 | 1523 |
| 4 | 35 | 28.6 | 2080 |
| 4 | 50 | 33.4 | 2710 |
| 4 | 70 | 42.5 | 4123 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| First Conductor | Second Conductor | |||
| 4+2 | 1.5 | 1.5 | 11.6 | 244 |
| 4+2 | 2.5 | 1.5 | 13.4 | 310 |
| 4+2 | 4 | 1.5 | 14.8 | 408 |
| 4+2 | 6 | 1.5 | 16.8 | 540 |
| 4+2 | 10 | 1.5 | 19.9 | 782 |
| 4+2 | 16 | 1.5 | 22.5 | 1101 |
| 4+2 | 25 | 1.5 | 26.2 | 1490 |
| 4+2 | 35 | 1.5 | 29.8 | 2015 |
| 4+2 | 50 | 1.5 | 34 | 2754 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM CONDUCTOR RESISTANCE DC AT 20ºC Ohm/km |
|---|---|---|---|---|
| 4 | 1.5 | 11.4 | 183 | 13.3 |
| 4 | 2.5 | 12.4 | 233 | 7.98 |
| 4 | 4 | 13.7 | 303 | 4.95 |
| 4 | 6 | 15.2 | 397 | 3.3 |
| 4 | 10 | 17.7 | 593 | 1.91 |
| 4 | 16 | 20.4 | 840 | 1.21 |
| 4 | 25 | 24.6 | 1260 | 0.78 |
| 4 | 35 | 29.6 | 1708 | 0.554 |
| 4 | 50 | 33.7 | 2344 | 0.386 |
| 4 | 70 | 39.9 | 3265 | 0.272 |
| 4 | 95 | 45.4 | 4205 | 0.206 |
| 4 | 120 | 49 | 5237 | 0.161 |
| 4 | 150 | 55 | 6482 | 0.129 |
| 4 | 185 | 62.5 | 7936 | 0.106 |
| 4 | 240 | 69.3 | 10265 | 0.0801 |
| 3 + 3 | 1.5 + 0.25 | 12.3 | 194 | 13.3 / 76 |
| 3 + 3 | 2.5 + 0.5 | 13.4 | 242 | 7.98 / 39 |
| 3 + 3 | 4 + 0.75 | 14.5 | 309 | 4.95 / 26 |
| 3 + 3 | 6 + 1 | 15.4 | 381 | 3.3 /19.5 |
| 3 + 3 | 10 + 1.5 | 17.2 | 542 | 1.91 / 13.3 |
| 3 + 3 | 16 + 2.5 | 19.5 | 760 | 1.21 / 7.98 |
| 3 + 3 | 25 + 4 | 22.7 | 1107 | 0.78 / 4.95 |
| 3 + 3 | 35 + 6 | 27.8 | 1522 | 0.554 / 3.3 |
| 3 + 3 | 50 + 10 | 30.5 | 2097 | 0.386 / 1.91 |
| 3 + 3 | 70 + 10 | 37 | 2816 | 0.272 / 1.91 |
| 3 + 3 | 95 + 16 | 41.5 | 3715 | 0.206 / 1.21 |
| 3 + 3 | 120 + 16 | 45.2 | 4512 | 0.161 / 1.21 |
| 3 + 3 | 150 + 25 | 50.6 | 5721 | 0.129 / 0.78 |
| 3 + 3 | 185 + 35 | 57 | 7085 | 0.106 / 0.554 |
| 3 + 3 | 240 + 50 | 63.4 | 9273 | 0.0801 / 0.386 |
