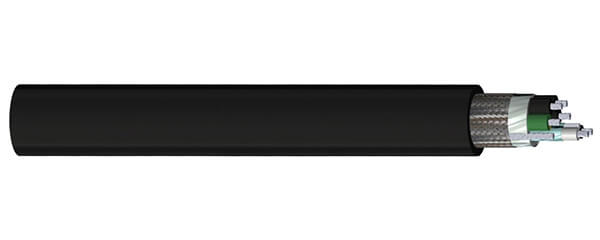

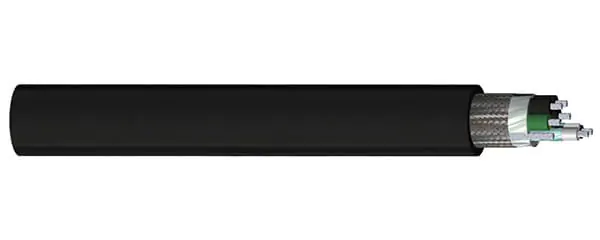

VFD Cable Description
A variable frequency drive (VFD), also known as an adjustable speed drive (ASD), is a controller that controls a motor or speed by varying the frequency and voltage of a signal.
VFD systems typically generate a lot of electrical noise, such as voltage spikes, reflected waves, charging currents, common-mode voltages, and RFI/EMI interference, which can result in voltages two to three times the supply voltage. Using non-VFD cables can cause insulation breakdown and cable failure, and can also introduce common-mode (or stray) voltages into the VFD motor and equipment grounds, causing motor and equipment failures.
Selecting the right drive cable is critical to reducing noise emissions, voltage reflections, and cable failures. This requires determining the structure that provides the lowest impedance ground path for the application.
VFD Cable Construction
| VFD EMC 2YSL(st)CY Cable | VFD EMC 2XSLCYK-J 1kV Cable | VFD 9YSLCYK-J Cable | VFD 2XSLCHRH 0.6/1kV Cable | VFD 2XSLCYRY 0.6/1kV Cable | Veriflex 2XSL(st)CH LSZH Cable | |
|---|---|---|---|---|---|---|
| VOLTAGE | 0.6/1kV | |||||
| CONDUCTOR | Class 5 flexible stranded Copper | |||||
| INSULATION | PE (Polyethylene) | XLPE (Cross-linked Polyethylene) | PP (Polypropylene) | XLPE (Cross-linked Polyethylene) | ||
| SCREEN | Al/Foil (Aluminium Foil) Tape | Al/PET (Aluminium Foil) Tape | Al/PET (Aluminium Polyester Tape) | |||
| BRAID | TCWB (Tinned Copper Wire Braid) | |||||
| INNER SHEATH | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | ||||
| ARMOUR | SWA (Galvanised Steel Wires) | |||||
| OUTER SHEATH | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | ||
VFD Cable Characteristics
| VFD EMC 2YSL(st)CY Cable | VFD EMC 2XSLCYK-J 1kV Cable | VFD 9YSLCYK-J Cable | VFD 2XSLCHRH 0.6/1kV Cable | VFD 2XSLCYRY 0.6/1kV Cable | Veriflex 2XSL(st)CH LSZH Cable | |
|---|---|---|---|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | |||||
| Temperature Rating | Fixed: -30°C to +70°C Flexed: -5°C to +70°C | Fixed laying: -40°C to + 70°C Fixed installation: -15°C to + 70°C Maximum temperature on conductor: + 90°C Maximum temperature in short circuit: + 250°C | Fixed: -50°C to + 90°C Flexible: -5°C to + 90°C UL Fixed: -40°C to + 80°C UL Flexible: -5°C to + 80°C | -40ºC to +90ºC Max. Conductor temperature during short circuit: +250ºC | Operating: -30ºC to +90ºC Maximum Conductor Temperature During S.C: +250ºC | Fixed: -30°C to +80°C Flexed: -5°C to +40°C |
| Minimum Bending Radius | Fixed: 10 x overall diameter Flexed: 25 x overall diameter | Fixed laying: up to 12 mm: 5 x outer diameter > 12 to 20 mm: 7.5 x outer diameter > 20 mm: 10 x outer diameter Flexible application: up to 12 mm: 10 x outer diameter > 12 to 20 mm: 15 x outer diameter > 20 mm: 20 x outer diameter | Single bending: 4 x outer diameter Multiple bending: 20 x outer diameter | 12 x overall diameter | 12 x Outer Diameter | Fixed: 7.5 x overall diameter Flexed: 15 x overall diameter |

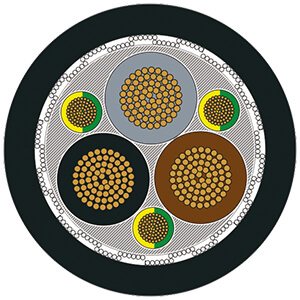

VFD Cable Colour Code
- Conductors:
- The main power conductors are typically black, and each is identified with a number (1, 2, 3, etc.) for easy identification.
- Ground:
- The ground wire, or earth conductor, is usually green with a yellow stripe.
- Shield:
- VFD cables often have a shield to minimize electromagnetic interference (EMI). This shield is typically an aluminum foil with a tinned copper braid.
- Jacket:
- The outer jacket of the cable is usually black and made of a material like PVC, which is oil and sunlight resistant.

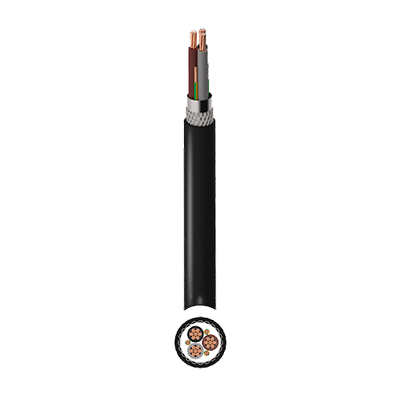

- VFD EMC 2YSL(st)CY Cable

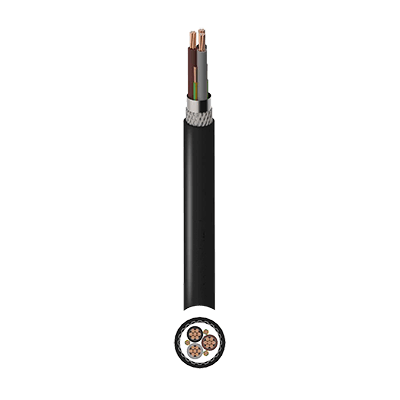

- VFD EMC 2XSLCYK-J 1kV Cable
- VFD 9YSLCYK-J Cable

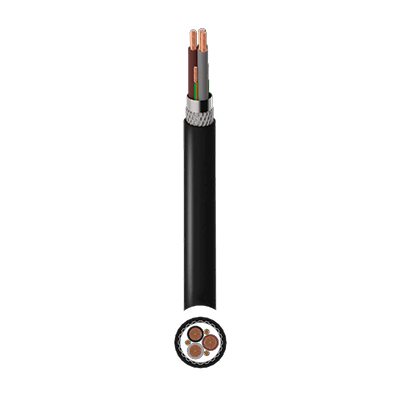

- VFD 2XSLCHRH 0.6/1kV Cable

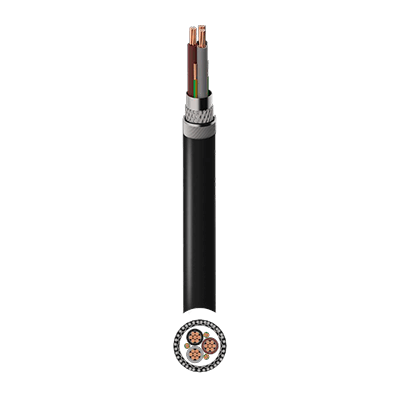

- VFD 2XSLCYRY 0.6/1kV Cable

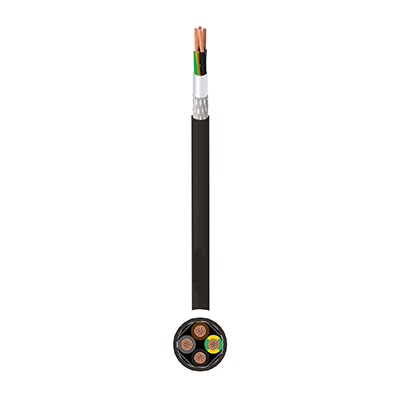

- Veriflex 2XSL(st)CH LSZH Cable
- 2XSL(st)CH With Split Earth Conductor
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Power Conductor | Earth Conductor | |||
| 3 + 3 earth | 1.5 | 0.25 | 10.2 | 140 |
| 3 + 3 earth | 2.5 | 0.5 | 11.4 | 220 |
| 3 + 3 earth | 4 | 0.75 | 13.1 | 323 |
| 3 + 3 earth | 6 | 1 | 14.9 | 420 |
| 3 + 3 earth | 10 | 1.5 | 18.4 | 615 |
| 3 + 3 earth | 16 | 2.5 | 21.6 | 819 |
| 3 + 3 earth | 25 | 4 | 25.3 | 1402 |
| 3 + 3 earth | 35 | 6 | 27.8 | 1718 |
| 3 + 3 earth | 50 | 10 | 32.6 | 2399 |
| 3 + 3 earth | 70 | 10 | 38.9 | 3173 |
| 3 + 3 earth | 95 | 16 | 44.3 | 4162 |
| 3 + 3 earth | 120 | 16 | 46.8 | 5253 |
| 3 + 3 earth | 150 | 25 | 53.5 | 6128 |
| 3 + 3 earth | 185 | 35 | 59.5 | 7450 |
| 3 + 3 earth | 240 | 50 | 70 | 10800 |
| 4 | 1.5 | - | 10.4 | 154 |
| 4 | 2.5 | - | 12.3 | 229 |
| 4 | 4 | - | 14.5 | 339 |
| 4 | 6 | - | 16.8 | 451 |
| 4 | 10 | - | 19.7 | 667 |
| 4 | 16 | - | 22 | 892 |
| 4 | 25 | - | 27 | 1440 |
| 4 | 35 | - | 30.3 | 1861 |
| 4 | 50 | - | 35 | 2547 |
| 4 | 70 | - | 39.4 | 3404 |
| 4 | 95 | - | 46 | 4888 |
| 4 | 120 | - | 51.4 | 5703 |
| 4 | 150 | - | 58.8 | 7040 |
| 4 | 185 | - | 61.1 | 9150 |
| 4 | 240 | - | 70 | 12500 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | AWG SIZE | NOMINAL OUTER DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|---|
| 3+3 | 1.5 + 3x 0.25 | 16 / 24 | 12 | 234 |
| 3+3 | 2.5 + 3x 0.5 | 14 / 20 | 13 | 282 |
| 3+3 | 4 + 3x 0.75 | 46010 | 14 | 447 |
| 3+3 | 6 + 3x 1 | 45948 | 16 | 575 |
| 3+3 | 10 + 3x 1.5 | 45885 | 18 | 650 |
| 3+3 | 16 + 3x 2.5 | 45822 | 20 | 846 |
| 3+3 | 25 + 3x 4 | 45759 | 24 | 1325 |
| 3+3 | 35 + 3x 6 | 45698 | 26 | 1840 |
| 3+3 | 50 + 3x 10 | 45665 | 30 | 2718 |
| 3+3 | 70 + 3x 10 | 2/0 / 8 | 34 | 3470 |
| 3+3 | 95 + 3x 16 | 3/0 / 6 | 37 | 4540 |
| 3+3 | 120 + 3x 16 | 4/0 / 6 | 42 | 5865 |
| 3+3 | 150 + 3x 25 | 250 MCM / 4 | 46 | 6490 |
| 3+3 | 185 + 3x 35 | 350 MCM / 2 | 51 | 8595 |
| 3+3 | 240 +3x 42.5 | 450 MCM / 1 | 59 | 11720 |
| 3+3 | 300 + 3x 50 | 550 MCM / 1 | 65 | 13380 |
| 4 | 1.5 | 16 | 11.3 | 230 |
| 4 | 2.5 | 14 | 12.4 | 300 |
| 4 | 4 | 12 | 13.6 | 485 |
| 4 | 6 | 10 | 14.8 | 630 |
| 4 | 10 | 8 | 17.5 | 860 |
| 4 | 16 | 6 | 20.2 | 1290 |
| 4 | 25 | 4 | 24.8 | 1860 |
| 4 | 35 | 2 | 27.4 | 2610 |
| 4 | 50 | 1 | 32 | 2950 |
| 4 | 70 | 2/0 | 37.1 | 3950 |
| 4 | 95 | 3/0 | 41.6 | 5300 |
| 4 | 120 | 4/0 | 45.2 | 6600 |
| 4 | 150 | 250 MCM | 52 | 7040 |
| 4 | 185 | 350 MCM | 58.1 | 8380 |
| 4 | 240 | 450 MCM | 66.1 | 11300 |
| 4 | 300 | 550 MCM | 71.5 | 13800 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL CABLE WEIGHT kg/km | AWG no. |
|---|---|---|---|---|
| 3+3 | 1.5 + 3 G 0.25 | 11.4 | 140 | 16 /24 |
| 3+3 | 2.5 + 3 G 0.5 | 12.9 | 220 | 14 / 20 |
| 3+3 | 4 + 3 G 0.75 | 13.6 | 323 | 46001 |
| 3+3 | 6 + 3 G 1 | 15.2 | 420 | 45948 |
| 3+3 | 10 + 3 G 1.5 | 17.4 | 615 | 45885 |
| 3+3 | 16 + 3 G 2.5 | 20 | 819 | 45822 |
| 3+3 | 25 + 3 G 4 | 24.3 | 1325 | 45759 |
| 3+3 | 35 + 3 G 6 | 27.5 | 1718 | 45698 |
| 3+3 | 50 + 3 G 10 | 31.1 | 2399 | 45665 |
| 3+3 | 70 + 3 G 10 | 37.1 | 3056 | 2/0 / 8 |
| 3+3 | 95 + 3 G 16 | 40 | 4162 | 3/0 / 6 |
| 3+3 | 120 + 3 G 16 | 42.6 | 5074 | 4/0 / 6 |
| 3+3 | 150 + 3 G 25 | 50 | 6128 | 250 MCM / 4 |
| 3+3 | 185 + 3 G 35 | 55.6 | 7820 | 350 MCM / 2 |
| 4 | 1.5 | 10.5 | 230 | 16 |
| 4 | 2.5 | 11.8 | 300 | 14 |
| 4 | 4 | 13.3 | 485 | 12 |
| 4 | 6 | 14.9 | 630 | 10 |
| 4 | 10 | 17.7 | 860 | 8 |
| 4 | 16 | 21.5 | 1290 | 6 |
| 4 | 25 | 26.3 | 1860 | 4 |
| 4 | 35 | 29.7 | 2610 | 2 |
| 4 | 50 | 34.1 | 2950 | 1 |
| 4 | 70 | 40.9 | 3950 | 2/0 |
| 4 | 95 | 45.4 | 5300 | 3/0 |
| 4 | 120 | 49.8 | 6600 | 4/0 |
| 4 | 150 | 56.1 | 7043 | 250 MCM |
| 4 | 185 | 61.4 | 8384 | 350 MCM |
| 4 | 240 | 67.9 | 12150 | 450 MCM |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAX. CONDUCTOR RESISTANCE DC AT 20ºC ohm/km |
|---|---|---|---|---|---|
| 3+3 | 1.5 + 0.25 | 10.8 | 16.8 | 530 | 13.3/76 |
| 3+3 | 2.5 + 0.5 | 12 | 18 | 620 | 7.98/39 |
| 3+3 | 4 + 0.75 | 13 | 19 | 707 | 4.95/26 |
| 3+3 | 6 + 1 | 14 | 20 | 824 | 3.3/19.5 |
| 3+3 | 10 + 1.5 | 15.7 | 22.4 | 1122 | 1.91/13.3 |
| 3+3 | 16 + 2.5 | 18.1 | 24.8 | 1424 | 1.21/7.98 |
| 3+3 | 25 + 4 | 21.4 | 28.2 | 1905 | 0.78/4.95 |
| 3+3 | 35 + 6 | 26.5 | 35.1 | 2764 | 0.554/3.3 |
| 3+3 | 50 + 10 | 29.4 | 38.2 | 3503 | 0.386/1.91 |
| 3+3 | 70 + 10 | 35.5 | 45.8 | 5001 | 0.272/1.91 |
| 3+3 | 95 + 16 | 40 | 50.6 | 6189 | 0.206/1.21 |
| 3+3 | 120 + 16 | 43.5 | 54.3 | 7191 | 0.161/1.21 |
| 3+3 | 150 + 25 | 48.9 | 60.1 | 8812 | 0.129/0.78 |
| 3+3 | 185 + 35 | 54.8 | 66.4 | 10511 | 0.106/0.554 |
| 3+3 | 240 + 50 | 60.8 | 75.2 | 14291 | 0.0801/0.386 |
| 4 | 1.5 | 9.9 | 15.2 | 428 | 13.3 |
| 4 | 2.5 | 10.9 | 16.9 | 558 | 7.41 |
| 4 | 4 | 12.2 | 18.1 | 687 | 4.61 |
| 4 | 6 | 13.6 | 19.7 | 814 | 3.3 |
| 4 | 10 | 16.2 | 22.4 | 1071 | 1.83 |
| 4 | 16 | 18.8 | 24.5 | 1490 | 1.15 |
| 4 | 25 | 23.2 | 30.1 | 2112 | 0.78 |
| 4 | 35 | 28.4 | 37.1 | 3042 | 0.554 |
| 4 | 50 | 32.3 | 41.4 | 3870 | 0.386 |
| 4 | 70 | 38.5 | 49 | 5607 | 0.272 |
| 4 | 95 | 43.6 | 54.4 | 6837 | 0.206 |
| 4 | 120 | 47 | 58.1 | 8083 | 0.161 |
| 4 | 150 | 53 | 64.5 | 9749 | 0.129 |
| 4 | 185 | 59.9 | 73.5 | 12462 | 0.106 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM CONDUCTOR RESISTANCE DC AT 20ºC Ω/km |
|---|---|---|---|---|---|
| 3 + 3 | 1.5 + 0.25 | 10.80 | 16.80 | 530 | 13.3 + 76 |
| 3 + 3 | 2.5 + 0.5 | 12.00 | 18.00 | 620 | 7.98 + 39 |
| 3 + 3 | 4 + 0.75 | 13.00 | 19.00 | 707 | 4.95 + 26 |
| 3 + 3 | 6 + 1 | 14.00 | 20.00 | 824 | 3.3 + 19.5 |
| 3 + 3 | 10 + 1.5 | 15.70 | 22.40 | 1122 | 1.91 + 13.3 |
| 3 + 3 | 16 + 2.5 | 18.10 | 24.80 | 1424 | 1.21 + 7.98 |
| 3 + 3 | 25 + 4 | 21.40 | 28.20 | 1905 | 0.78 + 4.95 |
| 3 + 3 | 35 + 6 | 26.50 | 35.10 | 2764 | 0.554 + 3.3 |
| 3 + 3 | 50 + 10 | 29.40 | 38.20 | 3503 | 0.386 + 1.91 |
| 3 + 3 | 70 + 10 | 35.50 | 45.80 | 5001 | 0.272 + 1.91 |
| 3 + 3 | 95 + 16 | 40.00 | 50.60 | 6189 | 0.206 + 1.21 |
| 3 + 3 | 120 + 16 | 43.50 | 54.30 | 7191 | 0.161 + 1.21 |
| 3 + 3 | 150 + 25 | 48.90 | 60.10 | 8812 | 0.129 + 0.78 |
| 3 + 3 | 185 + 35 | 54.80 | 66.40 | 10511 | 0.106 + 0.554 |
| 3 + 3 | 240 + 50 | 60.80 | 75.20 | 14291 | 0.0801 + 0.386 |
| 4 | 1.5 | 9.90 | 15.20 | 428 | 13.3 |
| 4 | 2.5 | 10.90 | 17.00 | 577 | 7.98 |
| 4 | 4 | 12.20 | 18.30 | 684 | 4.95 |
| 4 | 6 | 13.60 | 19.70 | 814 | 3.3 |
| 4 | 10 | 16.20 | 22.90 | 1185 | 1.91 |
| 4 | 16 | 18.80 | 25.50 | 1523 | 1.21 |
| 4 | 25 | 23.20 | 30.10 | 2112 | 0.78 |
| 4 | 35 | 28.40 | 37.10 | 3042 | 0.554 |
| 4 | 50 | 32.30 | 41.40 | 3870 | 0.386 |
| 4 | 70 | 38.50 | 49.00 | 5607 | 0.272 |
| 4 | 95 | 43.60 | 54.40 | 6837 | 0.206 |
| 4 | 120 | 47.00 | 58.10 | 8083 | 0.161 |
| 4 | 150 | 53.00 | 64.50 | 9749 | 0.129 |
| 4 | 185 | 59.90 | 73.50 | 12462 | 0.106 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 4 | 1.5 | 9.8 | 159 |
| 4 | 2.5 | 11.4 | 225 |
| 4 | 4 | 12.7 | 297 |
| 4 | 6 | 14.1 | 398 |
| 4 | 10 | 16.9 | 611 |
| 4 | 16 | 19.5 | 885 |
| 4 | 25 | 24.2 | 1339 |
| 4 | 35 | 27.5 | 1782 |
| 4 | 50 | 31.1 | 2447 |
| 4 | 70 | 36.4 | 3391 |
| 4 | 95 | 42.7 | 4584 |
| 4 | 120 | 47.7 | 5721 |
| 4 | 150 | 54.3 | 7220 |
| 4 | 185 | 60.9 | 8954 |
| 4 | 240 | 68.1 | 11400 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Conductor | Earth Conductor | |||
| 3+3 | 1.5 | 0.25 | 11.4 | 140 |
| 3+3 | 2.5 | 0.5 | 12.2 | 220 |
| 3+3 | 4 | 0.75 | 14.4 | 323 |
| 3+3 | 6 | 1 | 15.7 | 420 |
| 3+3 | 10 | 1.5 | 18 | 615 |
| 3+3 | 16 | 2.5 | 20.2 | 819 |
| 3+3 | 25 | 4 | 23.8 | 1325 |
| 3+3 | 35 | 6 | 26.9 | 1718 |
| 3+3 | 50 | 10 | 32.6 | 2399 |
| 3+3 | 70 | 10 | 36.4 | 3056 |
| 3+3 | 95 | 16 | 42 | 4162 |
| 3+3 | 120 | 16 | 47.8 | 5074 |
| 3+3 | 150 | 25 | 51.6 | 6128 |
| 3+3 | 185 | 35 | 56.5 | 7500 |
| 3+3 | 240 | 50 | 65.1 | 9770 |
