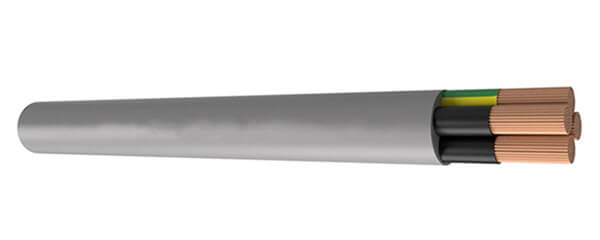

Veriflex YY Cable Description
YY cable is an unshielded cable, and its construction reference number is usually YSLY. It uses PVC insulation and sheath, which is flexible and protective. Low-smoke zero-halogen (LSZH) YY cable is particularly suitable for places where smoke and toxic gases may pose a potential threat to life or equipment in the event of a fire.
Veriflex YY Cable Construction
| Veriflex YY LSZH (HSLH) Control Cable | Veriflex YY PVC (YSLY) Control Cable | YSLY 0.6/1kV Black Cable | |
|---|---|---|---|
| VOLTAGE | 300/500V | 0.6/1kV | |
| CONDUCTOR | Class 5 Flexible Stranded Copper | ||
| INSULATION | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | |
Veriflex YY Cable Characteristics
| Veriflex YY LSZH (HSLH) Control Cable | Veriflex YY PVC (YSLY) Control Cable | YSLY 0.6/1kV Black Cable | |
|---|---|---|---|
| Voltage Rating | 300/500V | 0.6/1kV | |
| Temperature Rating | Fixed: -40°C to +80°C Flexed: -15°C to +70°C | Fixed: -40°C to +80°C Flexed: -5°C to +70°C | Fixed: -20ºC to +70ºC Installation: -5ºC to +70ºC |
| Minimum Bending Radius | Fixed: 6 x overall diameter Flexed: 15 x overall diameter | Fixed: 4 x overall diameter Flexed: 12.5 x overall diameter | Fixed Installation: 4 x overall diameter Flexed Application: 7.5 x overall diameter |
Veriflex YY Cable Colour Code
- 2-core: Black with white numbering
- 3-core and above: Black with white numbering and green/yellow core
- Colored cores with or without green/yellow on request
3 Core YY Cable

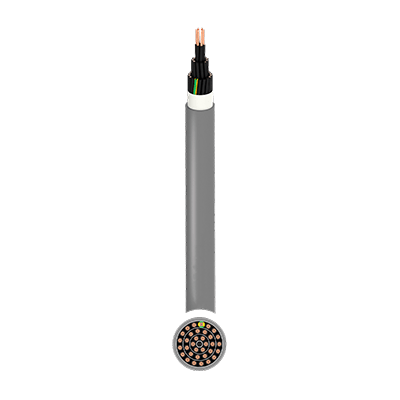

- Veriflex YY LSZH (HSLH) Control Cable
- Veriflex YY PVC (YSLY) Control Cable

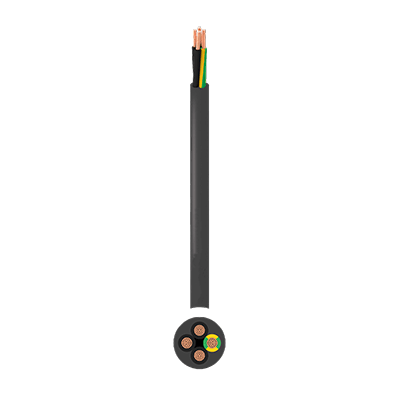

- YSLY 0.6/1kV Black Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.5 | 0.4 | 0.7 | 4.8 | 36 |
| 2 | 0.75 | 0.4 | 0.7 | 5.2 | 46 |
| 2 | 1 | 0.4 | 0.7 | 5.6 | 56 |
| 2 | 1.5 | 0.4 | 0.8 | 6.4 | 73 |
| 2 | 2.5 | 0.5 | 0.9 | 7.6 | 113 |
| 3 | 0.5 | 0.4 | 0.7 | 5.1 | 44 |
| 3 | 0.75 | 0.4 | 0.7 | 5.5 | 55 |
| 3 | 1 | 0.4 | 0.8 | 6.1 | 69 |
| 3 | 1.5 | 0.4 | 0.8 | 6.8 | 91 |
| 3 | 2.5 | 0.5 | 0.9 | 8.3 | 140 |
| 3 | 4 | 0.6 | 1 | 10 | 210 |
| 3 | 6 | 0.65 | 1.1 | 11.5 | 293 |
| 3 | 10 | 0.75 | 1.4 | 14.9 | 500 |
| 3 | 16 | 0.75 | 1.5 | 16.8 | 704 |
| 4 | 0.5 | 0.4 | 0.7 | 5.5 | 54 |
| 4 | 0.75 | 0.4 | 0.8 | 6.2 | 70 |
| 4 | 1 | 0.4 | 0.8 | 6.7 | 85 |
| 4 | 1.5 | 0.4 | 0.9 | 7.6 | 116 |
| 4 | 2.5 | 0.5 | 1 | 9.3 | 179 |
| 4 | 4 | 0.6 | 1.1 | 11.2 | 269 |
| 4 | 6 | 0.65 | 1.2 | 12.8 | 374 |
| 4 | 10 | 0.75 | 1.5 | 16.6 | 608 |
| 4 | 16 | 0.75 | 1.6 | 18.7 | 844 |
| 4 | 25 | 0.9 | 2 | 23.6 | 1327 |
| 4 | 35 | 0.95 | 2.2 | 27.2 | 1790 |
| 5 | 0.5 | 0.4 | 0.8 | 6.2 | 64 |
| 5 | 0.75 | 0.4 | 0.8 | 6.7 | 83 |
| 5 | 1 | 0.4 | 0.9 | 7.5 | 104 |
| 5 | 1.5 | 0.4 | 0.9 | 8.3 | 136 |
| 5 | 2.5 | 0.5 | 1.1 | 10.3 | 213 |
| 5 | 4 | 0.6 | 1.2 | 12.4 | 321 |
| 5 | 6 | 0.65 | 1.3 | 14.3 | 447 |
| 5 | 10 | 0.75 | 1.6 | 18.4 | 760 |
| 5 | 16 | 0.75 | 1.8 | 20.9 | 1064 |
| 5 | 25 | 0.9 | 2.2 | 26.4 | 1673 |
| 7 | 0.5 | 0.4 | 0.8 | 6.7 | 81 |
| 7 | 0.75 | 0.4 | 0.9 | 7.5 | 108 |
| 7 | 1 | 0.4 | 0.9 | 8.1 | 130 |
| 7 | 1.5 | 0.4 | 1 | 9.2 | 177 |
| 7 | 2.5 | 0.5 | 1.1 | 11.2 | 277 |
| 7 | 4 | 0.6 | 1.3 | 13.7 | 423 |
| 7 | 6 | 0.65 | 1.4 | 15.7 | 593 |
| 8 | 0.5 | 0.4 | 0.9 | 7.5 | 95 |
| 8 | 1 | 0.4 | 1 | 9 | 150 |
| 8 | 1.5 | 0.4 | 1 | 10 | 200 |
| 12 | 0.5 | 0.4 | 1 | 9.1 | 139 |
| 12 | 0.75 | 0.4 | 1 | 9.9 | 179 |
| 12 | 1 | 0.4 | 1.1 | 10.9 | 225 |
| 12 | 1.5 | 0.4 | 1.2 | 12.4 | 302 |
| 18 | 0.5 | 0.4 | 1.1 | 10.7 | 201 |
| 18 | 0.75 | 0.4 | 1.2 | 11.9 | 230 |
| 18 | 1 | 0.4 | 1.2 | 12.9 | 324 |
| 18 | 1.5 | 0.4 | 1.4 | 14.8 | 446 |
| 18 | 2.5 | 0.5 | 1.6 | 18.2 | 704 |
| 25 | 0.5 | 0.4 | 1.2 | 12.9 | 285 |
| 25 | 0.75 | 0.4 | 0.13 | 14.3 | 372 |
| 25 | 1 | 0.4 | 1.4 | 15.7 | 462 |
| 25 | 1.5 | 0.4 | 1.6 | 18 | 627 |
| 25 | 2.5 | 0.5 | 1.9 | 22.3 | 997 |
| 34 | 0.75 | 0.4 | 1.5 | 16.3 | 492 |
| 34 | 1 | 0.4 | 1.6 | 17.9 | 617 |
| 34 | 1.5 | 0.4 | 1.7 | 20.2 | 833 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.5 | 0.4 | 0.7 | 4.8 | 36 |
| 2 | 0.75 | 0.4 | 0.7 | 5.2 | 46 |
| 2 | 1 | 0.4 | 0.7 | 5.6 | 56 |
| 2 | 1.5 | 0.4 | 0.8 | 6.4 | 73 |
| 2 | 2.5 | 0.5 | 0.9 | 7.6 | 113 |
| 3 | 0.5 | 0.4 | 0.7 | 5.1 | 44 |
| 3 | 0.75 | 0.4 | 0.7 | 5.5 | 55 |
| 3 | 1 | 0.4 | 0.8 | 6.1 | 69 |
| 3 | 1.5 | 0.4 | 0.8 | 6.8 | 91 |
| 3 | 2.5 | 0.5 | 0.9 | 8.3 | 140 |
| 3 | 4 | 0.6 | 1 | 10 | 210 |
| 3 | 6 | 0.65 | 1.1 | 11.5 | 293 |
| 3 | 10 | 0.75 | 1.4 | 14.9 | 500 |
| 3 | 16 | 0.75 | 1.5 | 16.8 | 704 |
| 3 | 25 | 0.9 | 1.8 | 21.1 | 1080 |
| 4 | 0.5 | 0.4 | 0.7 | 5.5 | 54 |
| 4 | 0.75 | 0.4 | 0.8 | 6.2 | 70 |
| 4 | 1 | 0.4 | 0.8 | 6.7 | 85 |
| 4 | 1.5 | 0.4 | 0.9 | 7.6 | 116 |
| 4 | 2.5 | 0.5 | 1 | 9.3 | 179 |
| 4 | 4 | 0.6 | 1.1 | 11.2 | 269 |
| 4 | 6 | 0.65 | 1.2 | 12.8 | 374 |
| 4 | 10 | 0.75 | 1.5 | 16.6 | 608 |
| 4 | 16 | 0.75 | 1.6 | 18.7 | 844 |
| 4 | 25 | 0.9 | 2 | 23.6 | 1327 |
| 4 | 35 | 0.95 | 2.2 | 27.2 | 1790 |
| 5 | 0.5 | 0.4 | 0.8 | 6.2 | 64 |
| 5 | 0.75 | 0.4 | 0.8 | 6.7 | 83 |
| 5 | 1 | 0.4 | 0.9 | 7.5 | 104 |
| 5 | 1.5 | 0.4 | 0.9 | 8.3 | 136 |
| 5 | 2.5 | 0.5 | 1.1 | 10.3 | 213 |
| 5 | 4 | 0.6 | 1.2 | 12.4 | 321 |
| 5 | 6 | 0.65 | 1.3 | 14.3 | 447 |
| 5 | 10 | 0.75 | 1.6 | 18.4 | 760 |
| 5 | 16 | 0.75 | 1.8 | 20.9 | 1064 |
| 5 | 25 | 0.9 | 2.2 | 26.4 | 1673 |
| 5 | 35 | 0.95 | 2.4 | 30.3 | 2252 |
| 7 | 0.5 | 0.4 | 0.8 | 6.7 | 81 |
| 7 | 0.75 | 0.4 | 0.9 | 7.5 | 108 |
| 7 | 1 | 0.4 | 0.9 | 8.1 | 130 |
| 7 | 1.5 | 0.4 | 1 | 9.2 | 177 |
| 7 | 2.5 | 0.5 | 1.1 | 11.2 | 277 |
| 7 | 4 | 0.6 | 1.3 | 13.7 | 423 |
| 7 | 6 | 0.65 | 1.4 | 15.7 | 593 |
| 8 | 0.75 | 0.4 | 0.9 | 8.1 | 120 |
| 8 | 1 | 0.4 | 1 | 9 | 150 |
| 8 | 1.5 | 0.4 | 1 | 10 | 200 |
| 12 | 0.5 | 0.4 | 1 | 9.1 | 139 |
| 12 | 0.75 | 0.4 | 1 | 9.9 | 179 |
| 12 | 1 | 0.4 | 1.1 | 10.9 | 225 |
| 12 | 1.5 | 0.4 | 1.2 | 12.4 | 302 |
| 12 | 2.5 | 0.5 | 1.4 | 15.3 | 478 |
| 18 | 0.5 | 0.4 | 1.1 | 10.7 | 201 |
| 18 | 0.75 | 0.4 | 1.2 | 11.9 | 230 |
| 18 | 1 | 0.4 | 1.2 | 12.9 | 324 |
| 18 | 1.5 | 0.4 | 1.4 | 14.8 | 446 |
| 18 | 2.5 | 0.5 | 1.6 | 18.2 | 704 |
| 25 | 0.5 | 0.4 | 1.2 | 12.9 | 285 |
| 25 | 0.75 | 0.4 | 1.3 | 14.3 | 372 |
| 25 | 1 | 0.4 | 1.4 | 15.7 | 462 |
| 25 | 1.5 | 0.4 | 1.6 | 18 | 627 |
| 25 | 2.5 | 0.5 | 1.9 | 22.3 | 997 |
| 34 | 0.75 | 0.4 | 1.5 | 16.3 | 492 |
| 34 | 1 | 0.4 | 1.6 | 17.9 | 617 |
| 34 | 1.5 | 0.4 | 1.7 | 20.2 | 833 |
| 34 | 2.5 | 0.5 | 2.1 | 25.2 | 1337 |
| 50 | 1 | 0.4 | 1.8 | 21 | 869 |
| 50 | 1.5 | 0.4 | 2 | 23.8 | 1186 |
| 50 | 2.5 | 0.5 | 2.4 | 29.6 | 1898 |
| 61 | 1 | 0.4 | 1.9 | 22.7 | 1031 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 0.75 | 8.7 | 91 |
| 3 | 1 | 9 | 98 |
| 3 | 1.5 | 10.1 | 122 |
| 3 | 2.5 | 11.3 | 176 |
| 3 | 4 | 22 | 225 |
| 4 | 0.75 | 9.2 | 120 |
| 4 | 1 | 9.6 | 110 |
| 4 | 1.5 | 10.8 | 150 |
| 4 | 2.5 | 12.2 | 209 |
| 4 | 4 | 14 | 311 |
| 4 | 6 | 15.7 | 429 |
| 4 | 10 | 19.5 | 759 |
| 4 | 16 | 21.9 | 1093 |
| 4 | 25 | 30 | 1593 |
| 4 | 35 | 33 | 2390 |
| 4 | 50 | 40 | 3400 |
| 4 | 70 | 46 | 4750 |
| 5 | 0.75 | 9.9 | 134 |
| 5 | 1 | 10.4 | 136 |
| 5 | 1.5 | 11.7 | 176 |
| 5 | 2.5 | 13.3 | 252 |
| 5 | 4 | 15.3 | 398 |
| 5 | 6 | 17.9 | 602 |
| 5 | 10 | 23 | 927 |
| 5 | 16 | 27 | 1583 |
| 5 | 25 | 33.8 | 2040 |
| 5 | 35 | 36.9 | 2887 |
| 7 | 0.75 | 11.1 | 177 |
| 7 | 1 | 12.1 | 179 |
| 7 | 1.5 | 13.5 | 192 |
| 7 | 2.5 | 15.2 | 335 |
| 7 | 4 | 16.8 | 524 |
| 7 | 6 | 19.7 | 802 |
| 12 | 0.75 | 13.4 | 248 |
| 12 | 1 | 14.5 | 287 |
| 12 | 1.5 | 16.6 | 363 |
| 12 | 2.5 | 18.7 | 544 |
| 18 | 0.75 | 15.6 | 350 |
| 18 | 1 | 17.3 | 408 |
| 18 | 1.5 | 19.7 | 520 |
| 18 | 2.5 | 22 | 788 |
| 25 | 0.75 | 18.9 | 478 |
| 25 | 1 | 21.1 | 567 |
| 25 | 1.5 | 23.9 | 740 |
| 34 | 0.75 | 21.5 | 626 |
| 34 | 1 | 24 | 751 |
| 34 | 1.5 | 27.2 | 959 |
| 42 | 0.75 | 23.3 | 760 |
| 42 | 1 | 25.9 | 890 |
| 42 | 1.5 | 29.5 | 1110 |
| 50 | 0.75 | 25.6 | 871 |
| 50 | 1 | 28.5 | 1076 |
| 50 | 1.5 | 32.5 | 1399 |
| 61 | 0.75 | 28.2 | 1060 |
| 61 | 1.5 | 36.8 | 1680 |
