VV-K Cable Description
VV-K cables offer a high level of protection in a wide range of environments, making them suitable for complex, fixed installations and extremely versatile applications. Their robust construction makes them ideal for connecting motors, machinery, and robots. The cable exhibits good oil, chemical, and UV resistance, making it suitable for outdoor installations, conduits, or, in some cases, direct burial.

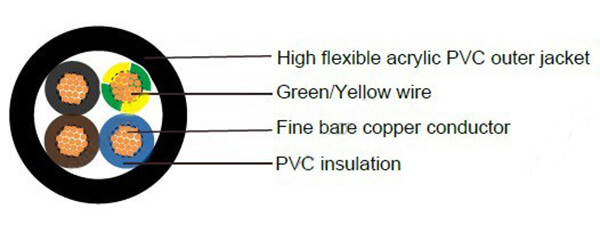

VV-K Cable Construction
- Conductor
- Flexible copper conductor (Class 5)
- Insulation
- PVC
- Outer sheath
- PVC
VV-K Cable Characteristics
- Voltage Rating
- 0,6/1kV
- Thermal performance
- Maximum service temperature: 70ºC.
- Maximum short-circuittemperature: 160ºC (max. 5 s).
- Minimum service temperature: -40ºC (fixed and protected installations).
- Mechanical performance
- Minimum bending radius: x5 cable diameter.
- Impact resistance: AG2 Medium severity.
VV-K Cable Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) | Open Air (A) | Buried (A) | Voltage drop (V/A · km) |
|---|---|---|---|---|---|
| 1 x 10 | 8,8 | 155 | 60 | 50 | 3,97 |
| 1 x 16 | 9,8 | 215 | 82 | 64 | 2,51 |
| 1 x 25 | 11,6 | 315 | 110 | 82 | 1,62 |
| 1 x 35 | 12,7 | 415 | 137 | 98 | 1,15 |
| 1 x 50 | 14,6 | 570 | 167 | 116 | 0,802 |
| 1 x 70 | 16,0 | 755 | 216 | 143 | 0,565 |
| 1 x 95 | 18,2 | 990 | 264 | 169 | 0,428 |
| 1 x 120 | 20,1 | 1.245 | 308 | 192 | 0,335 |
| 1 x 150 | 22,4 | 1.545 | 356 | 217 | 0,268 |
| 1 x 185 | 24,7 | 1.87 | 409 | 243 | 0,220 |
| 1 x 240 | 27,5 | 2.425 | 485 | 280 | 0,166 |
| 2 x 1,5 | 8,4 | 100 | 22 | 22 | 31,9 |
| 2 x 2,5 | 9,7 | 140 | 30 | 29 | 19,2 |
| 2 x 4 | 11,6 | 210 | 40 | 37 | 11,9 |
| 2 x 6 | 12,7 | 265 | 51 | 46 | 7,92 |
| 2 x 10 | 14,6 | 380 | 70 | 60 | 4,58 |
| 2 x 16 | 16,5 | 530 | 94 | 64 | 2,9 |
| 3 G 1,5 | 8,9 | 120 | 22 | 22 | 31,9 |
| 3 G 2,5 | 10,3 | 170 | 30 | 29 | 19,2 |
| 3 G 4 | 12,4 | 255 | 40 | 37 | 11,9 |
| 3 G 6 | 13,6 | 325 | 51 | 46 | 7,92 |
| 3 G 10 | 15,8 | 485 | 70 | 60 | 4,58 |
| 3 x 16 | 18,0 | 680 | 80 | 64 | 2,51 |
| 3 x 25 | 21,5 | 1.05 | 101 | 82 | 1,62 |
| 3 x 35 | 24,7 | 1.415 | 126 | 98 | 1,15 |
| 4 G 1,5 | 9,7 | 145 | 18,5 | 18 | 27,6 |
| 4 G 2,5 | 11,3 | 210 | 25 | 24 | 16,6 |
| 4 x 4 | 13,5 | 310 | 34 | 30 | 10,3 |
| 4 x 6 | 14,9 | 405 | 43 | 38 | 6,86 |
| 4 x 10 | 17,4 | 605 | 60 | 50 | 3,97 |
| 4 x 16 | 20,2 | 895 | 80 | 64 | 2,51 |
| 5 G 1,5 | 10,5 | 175 | 18,5 | 18 | 27,6 |
| 5 G 2,5 | 12,3 | 250 | 25 | 24 | 16,6 |
| 5 G 4 | 14,9 | 370 | 34 | 30 | 10,3 |
| 5 G 6 | 16,5 | 490 | 43 | 38 | 6,86 |
| 5 G 10 | 19,3 | 745 | 60 | 50 | 3,97 |
| 5 G 16 | 22,3 | 1.08 | 80 | 64 | 2,51 |
| 6 G 1,5 | 9,5 | 155 | 22 | 22 | 31,9 |
| 6 G 2,5 | 11,4 | 235 | 30 | 29 | 19,2 |
| 7 G 1,5 | 9,5 | 170 | 22 | 22 | 31,9 |
| 7 G 2,5 | 11,4 | 260 | 30 | 29 | 19,2 |
| 7 G 4 | 14,9 | 430 | 40 | 37 | 11,9 |
| 7 G 6 | 16,6 | 585 | 51 | 46 | 7,92 |
| 7 G 10 | 20,7 | 960 | 70 | 60 | 4,88 |
| 8 G 1,5 | 10,3 | 195 | 22 | 22 | 31,9 |
| 8 G 2,5 | 12,5 | 300 | 30 | 29 | 19,2 |
| 8 G 4 | 16,3 | 495 | 40 | 37 | 11,9 |
| 10 G 1,5 | 11,5 | 235 | 22 | 22 | 31,9 |
| 10 G 2,5 | 14,1 | 365 | 30 | 29 | 19,2 |
| 12 G 1,5 | 11,9 | 270 | 22 | 22 | 31,9 |
| 12 G 2,5 | 14,3 | 415 | 30 | 29 | 19,2 |
| 12 G 6 | 21,3 | 940 | 51 | 46 | 7,92 |
| 12 G 10 | 27,3 | 1.585 | 70 | 60 | 4,88 |
| 14 G 1,5 | 13,0 | 315 | 22 | 22 | 31,9 |
| 14 G 2,5 | 16,0 | 490 | 30 | 29 | 19,2 |
| 16 G 1,5 | 13,8 | 355 | 22 | 22 | 31,9 |
| 16 G 2,5 | 17,2 | 555 | 30 | 29 | 19,2 |
| 19 G 1,5 | 14,5 | 405 | 22 | 22 | 31,9 |
| 19 G 2,5 | 17,9 | 635 | 30 | 29 | 19,2 |
| 24 G 1,5 | 16,7 | 505 | 22 | 22 | 31,9 |
| 24 G 2,5 | 20,6 | 790 | 30 | 29 | 19,2 |
| 27 G 1,5 | 17,4 | 550 | 22 | 22 | 31,9 |
| 30 G 1,5 | 18,2 | 605 | 22 | 22 | 31,9 |
| 37 G 1,5 | 19,8 | 740 | 22 | 22 | 31,9 |
| 44 G 1,5 | 21,9 | 870 | 22 | 22 | 31,9 |
| 52 G 1,5 | 23,4 | 1.02 | 22 | 22 | 31,9 |
| 61 G 1,5 | 25,4 | 1.21 | 22 | 22 | 31,9 |
